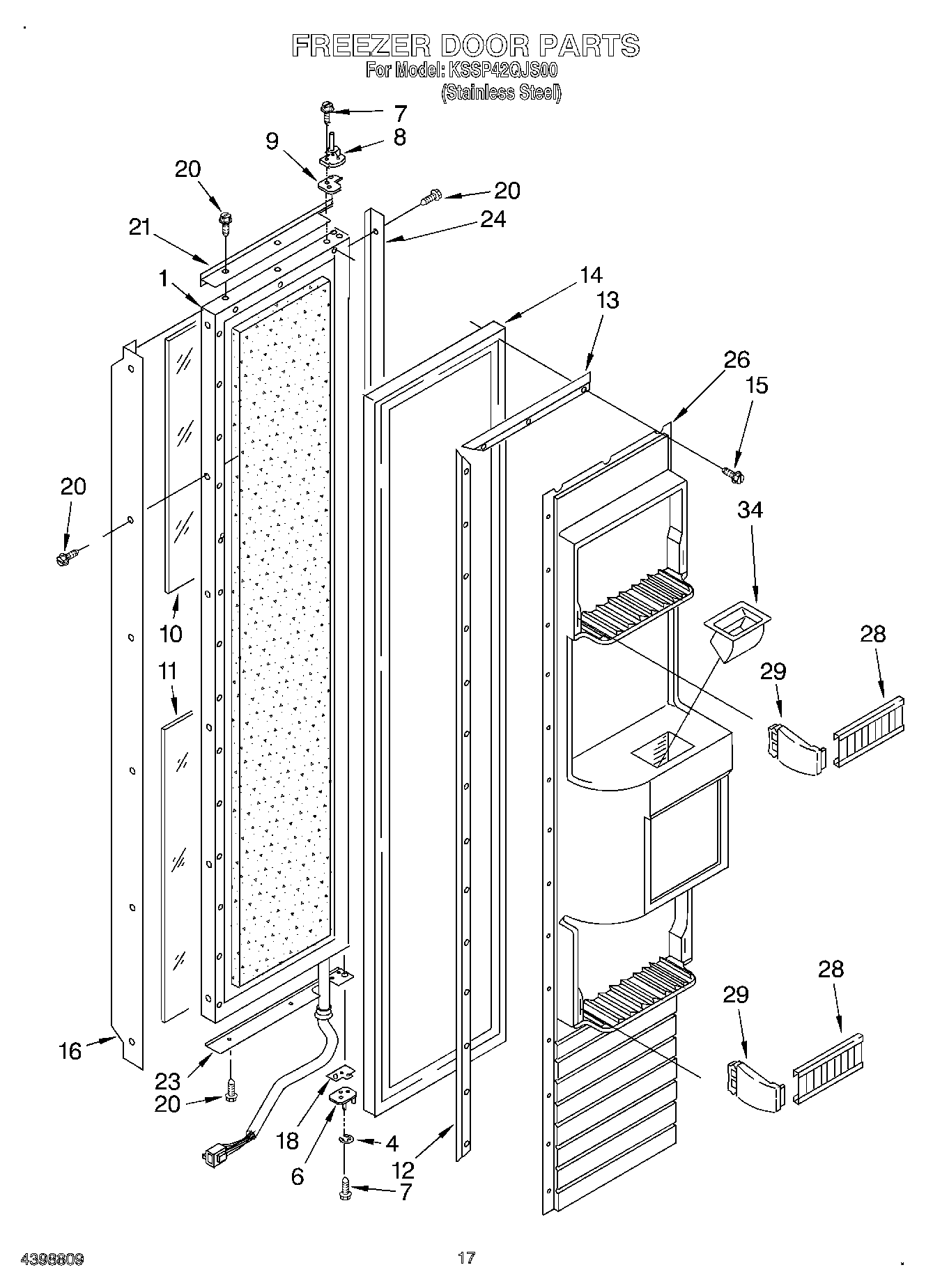

KSSP42QJS00 12 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel (Includes Insulation) (Black)
4	Retaining Ring, Door-Closure
6	Hinge, Bottom
7	W11474472 Whirlpool Screw
8	Hinge, Top
9	Spacer-Hinge, Top
10	Panel, Decorative Upper
11	Panel, Decorative Lower
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188318A Whirlpool Refrigerator Door Gasket
15	W11624204 Whirlpool Screw
16	Handle, Door
18	Door, Spacer
20	WP488729 Whirlpool Refrigerator Door Screw
21	Trim-Door, Top
23	Trim (Bottom) (Stainless Steel)
24	Trim-Door, Side
26	Panel, Interior Door
28	Trim, Door Shelf
29	Trim, Endcap (Left Side)
29	Trim, End Cap (Right Side)
34	Ice Chute
