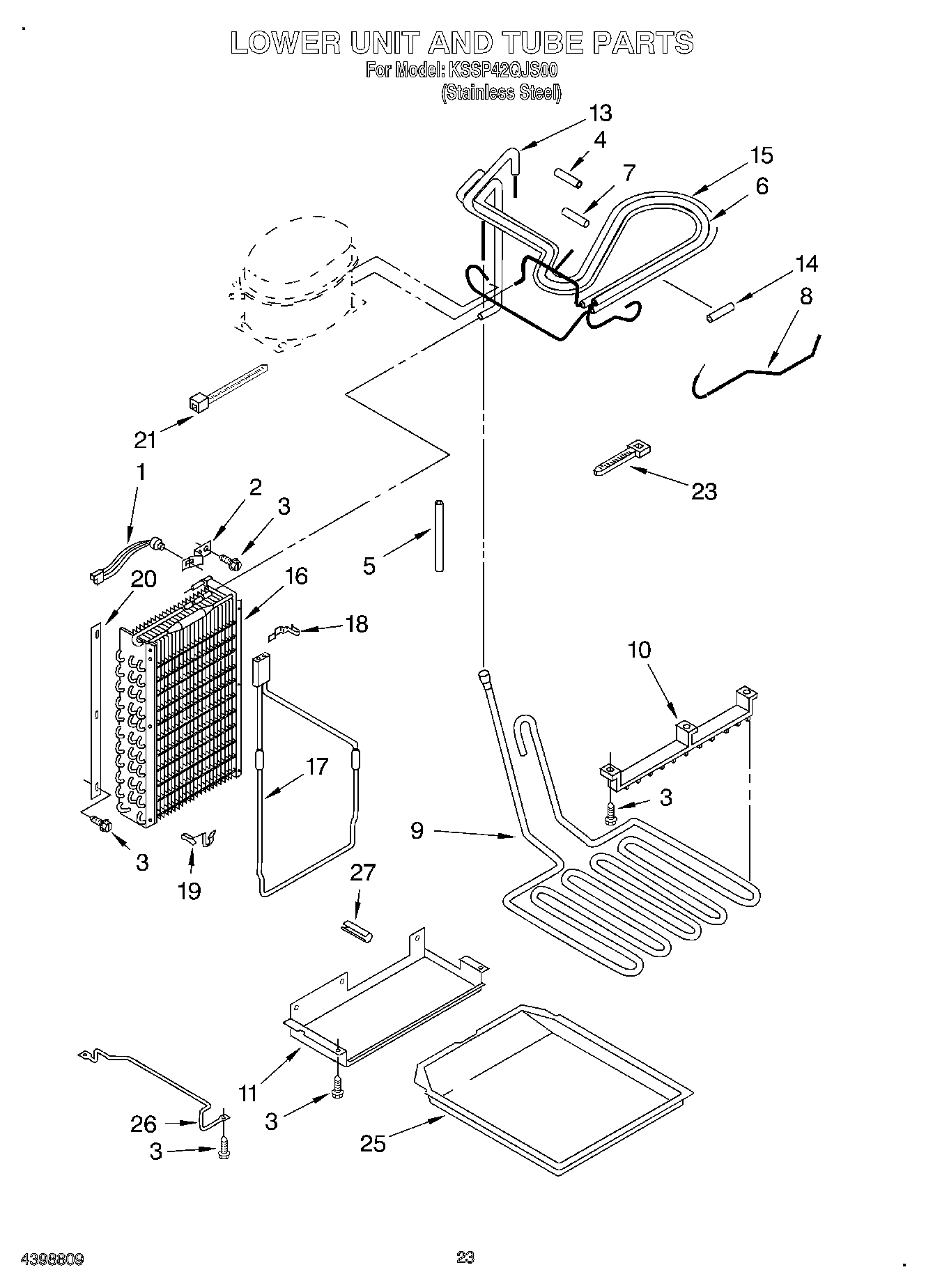

KSSP42QJS00 15 – LOWER UNIT AND TUBE

KSSP42QJS00 15 – LOWER UNIT AND TUBE

Written by

in

KSSP42QJS00 15 – LOWER UNIT AND TUBE

Products

PositionProduct
1Defrost Bi-Metal
2Clamp, Bi-Metal
3W11624204 Whirlpool Screw
5WP2002171 Whirlpool Refrigerator Sleeve
6Condenser Inlet Tube
8Tube, Connect (Drier)
9WP2004545 Whirlpool Refrigerator Heater Pan
10Hanger, Heater
11Shield, Drain Pan
13Tube, Discharge
15Heat Exchanger
164388574 Whirlpool Refrigerator Evaporator
17WP2006750 Whirlpool Refrigerator Heater
181113048 Whirlpool Refrigerator Clamp
19Clamp (4)
20Gasket, Evaporator
21WPW10339879 Whirlpool Wire Tie
23Strap
25WP2001264 Whirlpool Refrigerator Drip Pan
26Bracket, Drain Pan (Right)
26Bracket, Drain Pan (Left)
27WP2158826 Whirlpool Refrigerator Dampener
