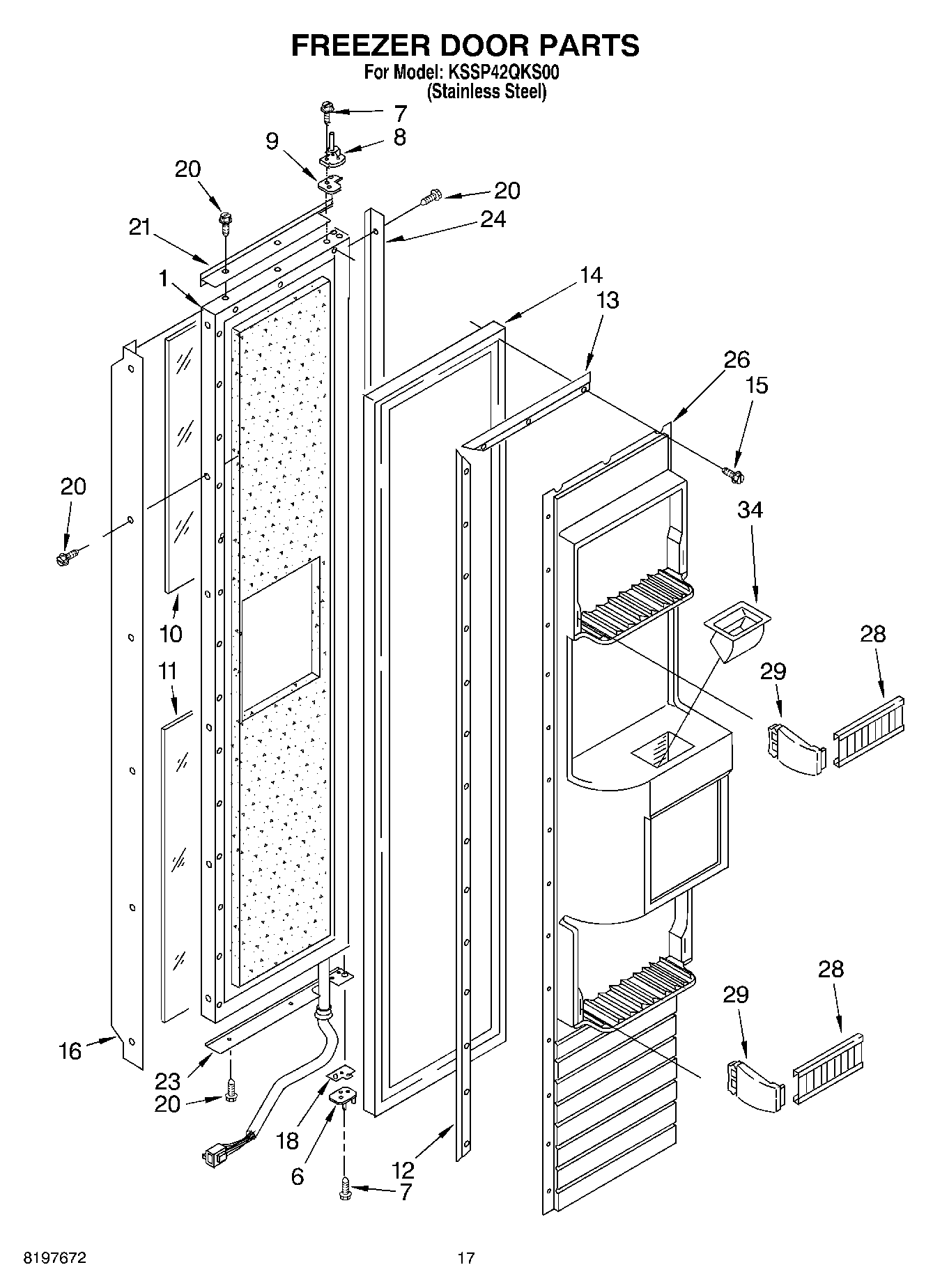

KSSP42QKS00 11 – FREEZER DOORadmin2025-04-26T12:31:52+00:00KSSP42QKS00 11 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door Panel (Includes Insulation) |
| 6 | Hinge, Bottom |
| 7 | W11474472 Whirlpool Screw |
| 8 | Hinge, Top |
| 9 | Spacer-Hinge, Top |
| 10 | Panel, Decorative Upper |
| 11 | Panel, Decorative Lower |
| 12 | Gasket Retainer, Side (2) |
| 13 | Gasket Retainer, Top & Bottom |
| 14 | 2188496A Whirlpool Refrigerator Door Gasket |
| 15 | W11624204 Whirlpool Screw |
| 16 | Handle, Door |
| 18 | Door, Spacer |
| 20 | WP8281250 Whirlpool Refrigerator Screw |
| 21 | Trim-Door, Top |
| 23 | Trim (Bottom) |
| 24 | Trim-Door, Side |
| 26 | Panel, Interior Door |
| 28 | Shelf Bin |
| 29 | Trim, End Cap (Right Side) |
| 29 | Trim, Endcap (Left Side) |
| 34 | Ice Chute |
