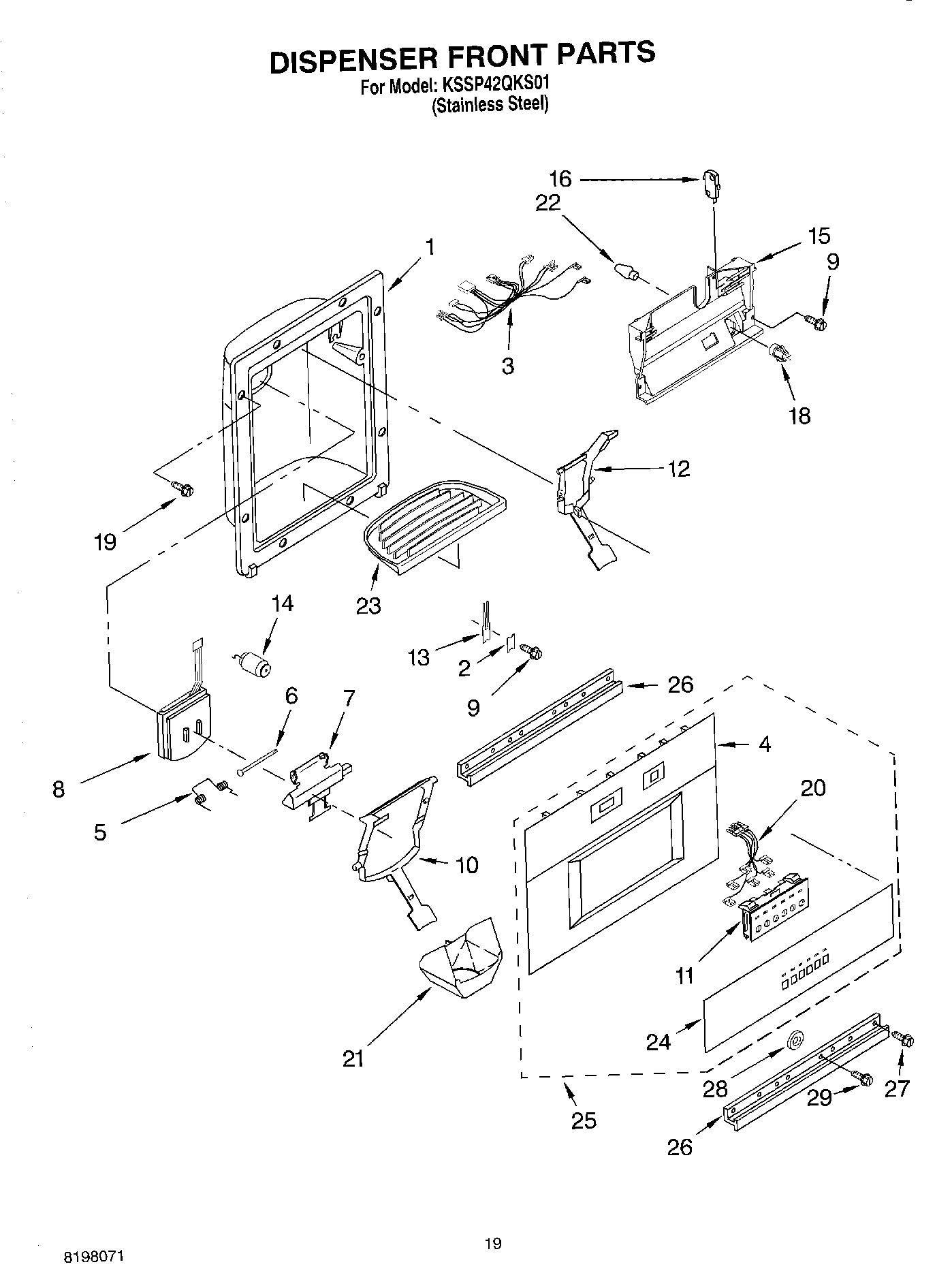

KSSP42QKS01 12 – DISPENSER FRONT

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	WP2195051 Whirlpool Refrigerator Clip
3	Wire Harness
4	Cover, Dispenser (Not Serviced)
5	WPW10224328 Whirlpool Refrigerator Spring
6	WP2196195 Whirlpool Refrigerator Door Pin
7	Door Mechanism Assembly
8	WP2180353 Whirlpool Dispenser Door
9	WP3400906 Whirlpool Refrigerator Screw
10	Lever, Ice Dispenser (Black (Storm Grey Pad))
11	WP2180236 Whirlpool Refrigerator Switch
12	WPW10152858 Whirlpool Refrigerator Dispenser Arm
13	WP2194719 Whirlpool Refrigerator Clip
14	Delay Mechanism
15	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16	WP2162361 Whirlpool Switch
18	2180200 Whirlpool Refrigerator Socket
19	WP489069 Whirlpool Compactor Screw
20	2311650 Whirlpool Refrigerator Wire Harness
21	WP2180224 Whirlpool Dispenser Funnel Guide
22	WP22002263 Whirlpool Dryer 10W Light Bulb
23	WP2180325 Whirlpool Dispenser Grille
24	Overlay, Cover (Not Serviced)
25	Front Cover Assembly (Includes Items 4, 11, 20 & 24) (Black)
26	Trim, Front (2) (Black)
27	WP8281250 Whirlpool Refrigerator Screw
28	W10903204 Whirlpool Refrigerator Washer
29	W10759522 Whirlpool Screw
