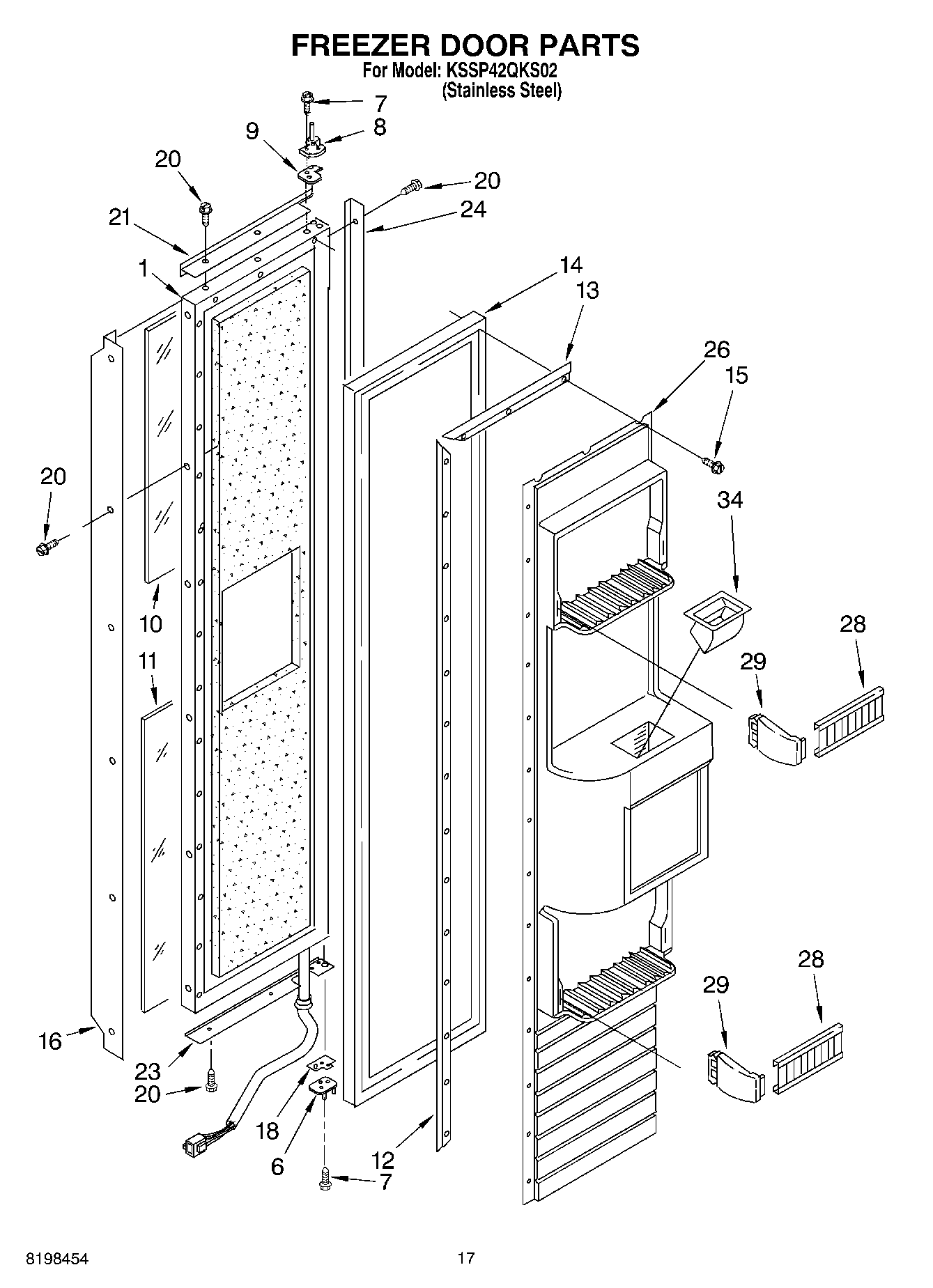

KSSP42QKS02 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
10	Panel, Decorative Upper
11	Panel, Decorative Lower
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	2188496A Whirlpool Refrigerator Door Gasket
15	W11624204 Whirlpool Screw
16	Handle, Door
18	Door Spacer, Bottom
20	WP8281250 Whirlpool Refrigerator Screw
21	Trim-Door, Top
23	Trim-Door, Bottom
24	Trim-Door, Side
26	Panel, Interior Door
28	Shelf Bin
29	Trim, Endcap (Left Side)
29	Trim, End Cap (Right Side)
34	Ice Chute
