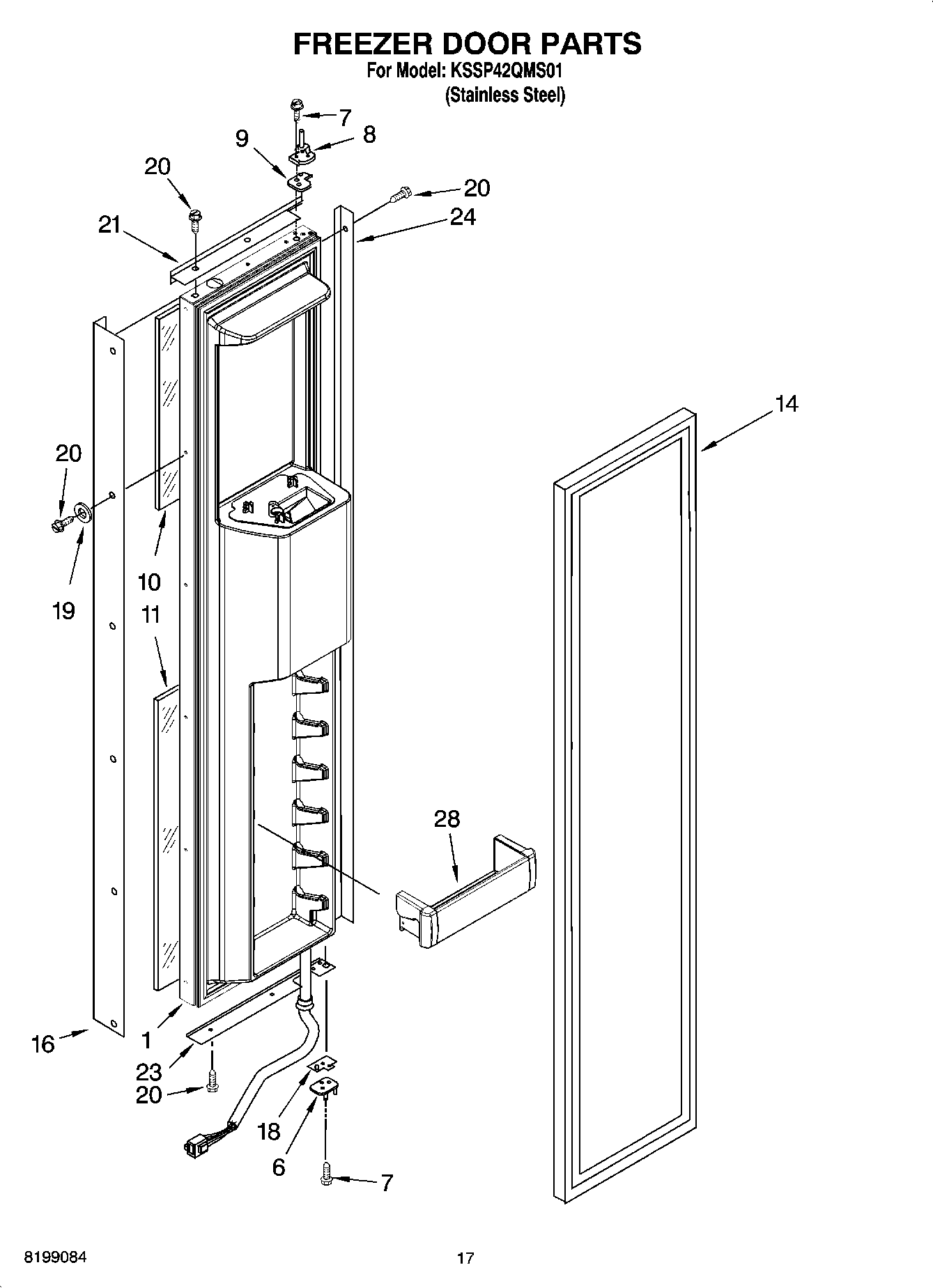

KSSP42QMS01 11 – FREEZER DOOR PARTS

KSSP42QMS01 11 – FREEZER DOOR PARTS

Written by

in

KSSP42QMS01 11 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Item 14) (Black)
6HINGE-DOOR
7W11474472 Whirlpool Screw
8W11724512 Whirlpool Door Hinge
9Spacer-Hinge, Top
10Panel, Decorative Upper
11Panel, Decorative Lower
14WP2266905 Whirlpool Refrigerator Door Gasket
16Handle, Door (Stainless Steel)
18Door Spacer, Bottom
19Washer
20WP8281250 Whirlpool Refrigerator Screw
21Trim-Door, Top
23Trim-Door, Bottom
24Trim-Door, Side
28W10323602 Whirlpool Refrigerator Cantilever Bin
28F.C. (3)
