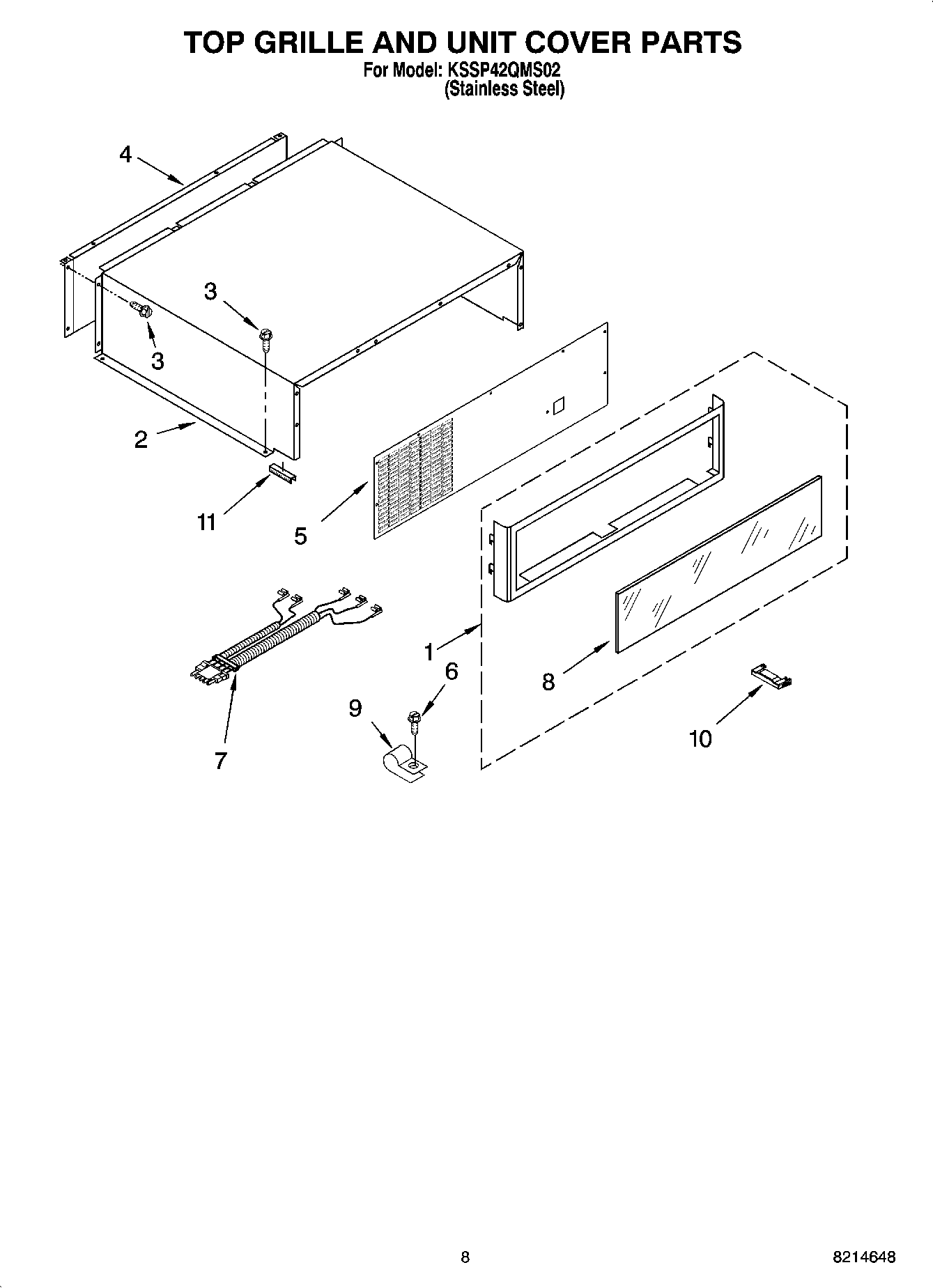

KSSP42QMS02 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

Products

Position	Product
1	Top Grille Assembly (Stainless Steel)
2	Cover, Unit
3	W11624204 Whirlpool Screw
4	2256466 Whirlpool Refrigerator Unit Cover
5	Front, Unit Cover
6	WP965173 Whirlpool Dishwasher Screw
7	Wire Assembly RC/FC Light Switch
8	Panel, Insert
9	489348 Whirlpool Refrigerator Tube Clamp
10	Enclosure, Connector
11	2215910 Whirlpool Refrigerator Grommet
