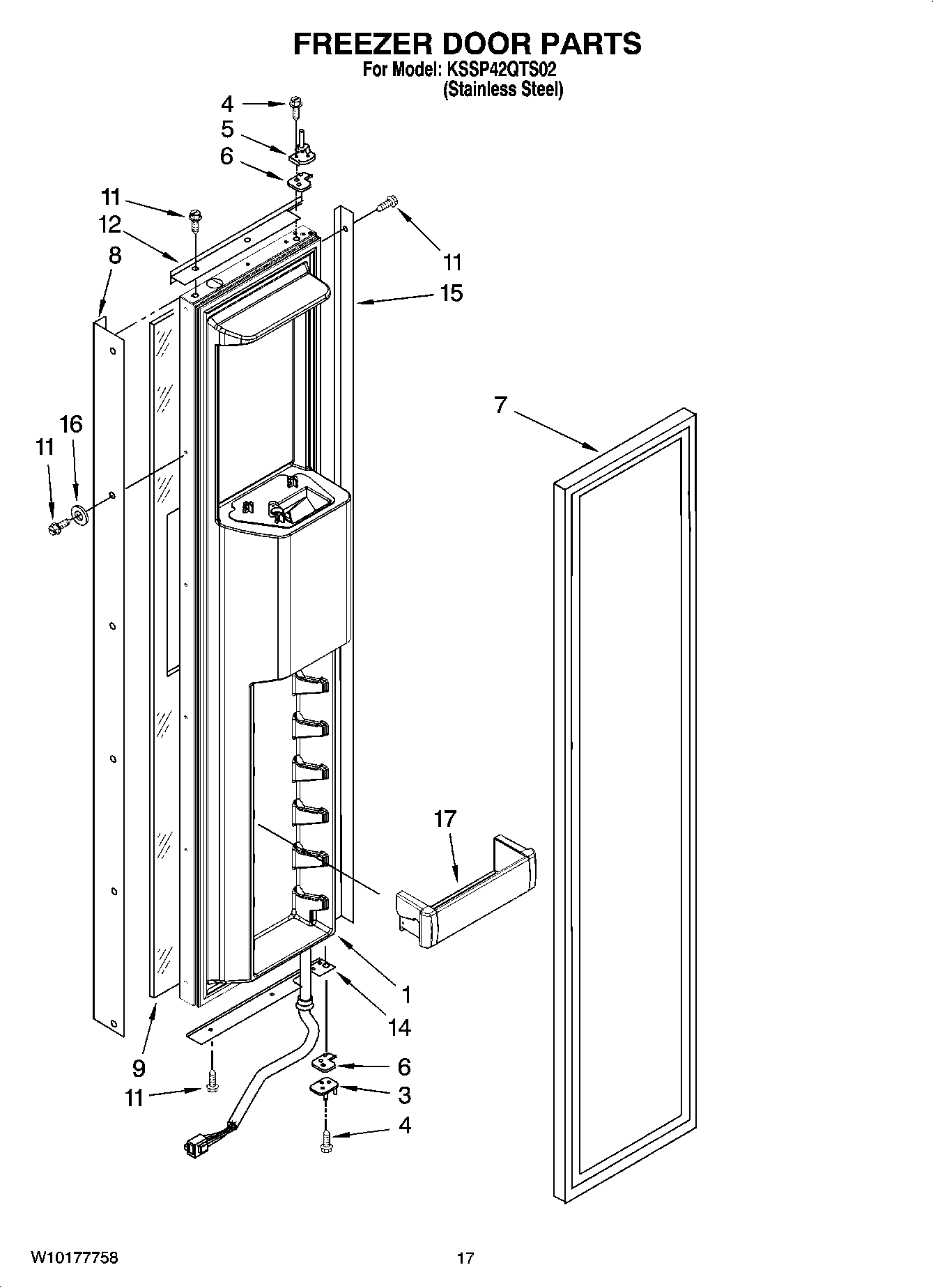

KSSP42QTS02 11 – FREEZER DOOR PARTS

KSSP42QTS02 11 – FREEZER DOOR PARTS

Written by

in

KSSP42QTS02 11 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER (INCLUDES No.13) (UNIVERSAL SILVER)
3HINGE-DOOR
4W11474472 Whirlpool Screw
5W11724512 Whirlpool Door Hinge
6W11673500 Whirlpool Door Hinge
7WP2266905 Whirlpool Refrigerator Door Gasket
8Handle, Door
9Panel, Decorative
11WP8281250 Whirlpool Refrigerator Screw
12Trim-Door, Top
14Trim-Door, Bottom
15Trim-Door, Side
16Washer
17W10323602 Whirlpool Refrigerator Cantilever Bin
