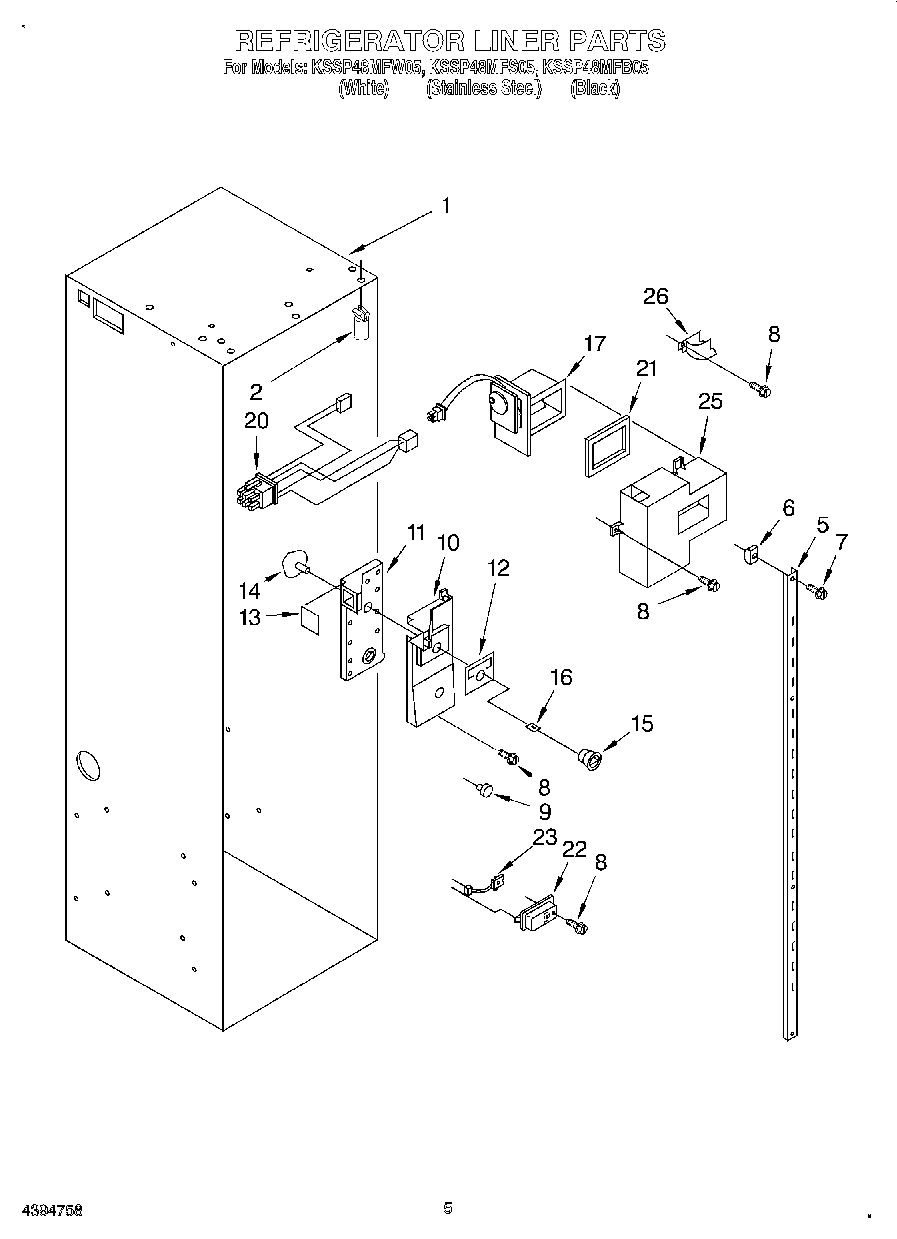

KSSP48MFB05 04 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Spacer, Control Panel (3)
5	Ladder, Shelf (2)
6	520965 Whirlpool Refrigerator Support
7	Screw, 8 x 1-1/4 (3)
8	W11624204 Whirlpool Screw
9	Hole Plug
10	Meat Pan, Air Duct Cover
11	Meat Pan, Air Duct
12	Inlay, Control Meat Pan
13	Seal, Air Duct
14	Damper Control, Meat Pan
15	Control Knob, Meat Pan
16	Retainer, Knob
17	Air Baffle Assembly
20	Wiring Harness, Air Baffle
21	Seal
22	1116793 Whirlpool Refrigerator Cover
23	Thermistor
25	Air Baffle Cover
26	2003577 Whirlpool Refrigerator Guard
