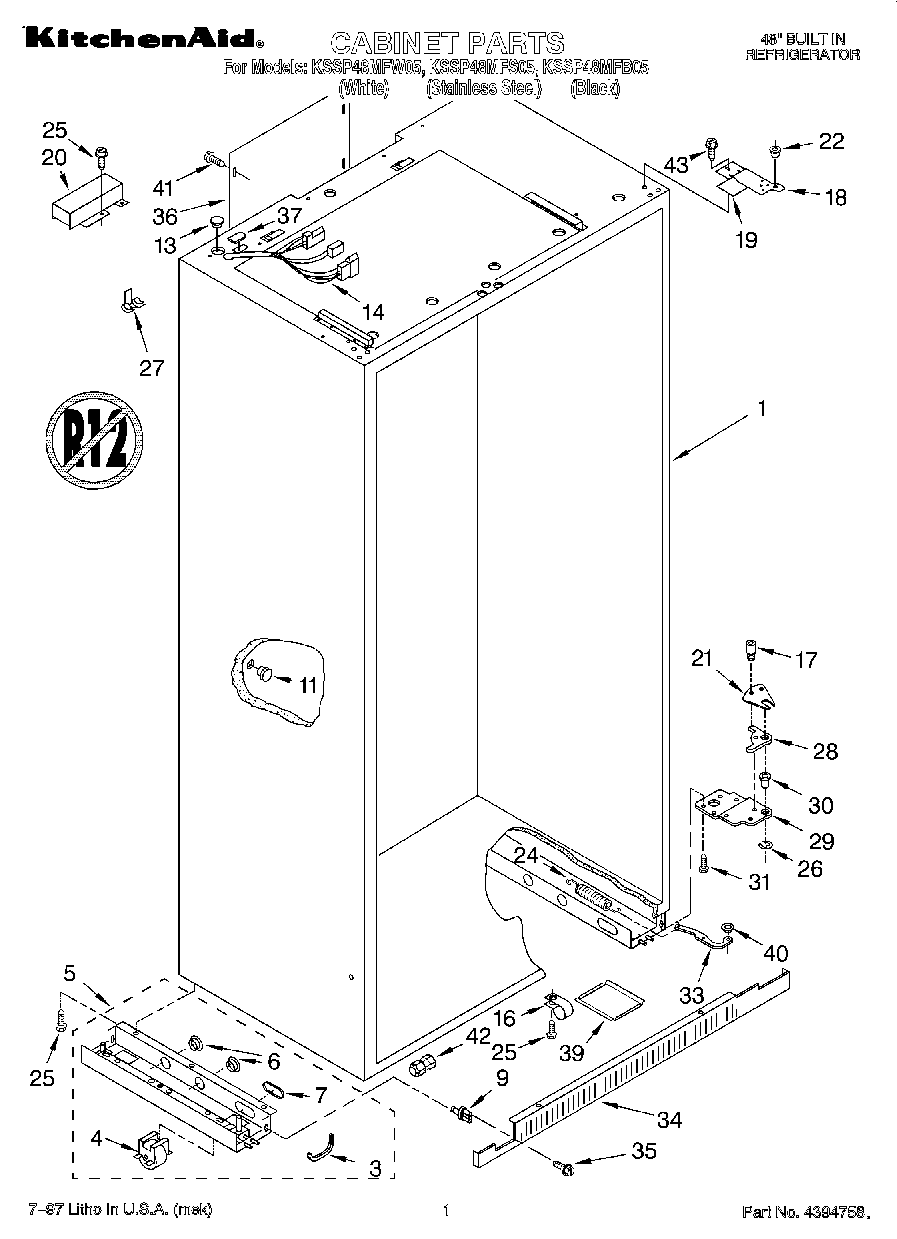

KSSP48MFS05 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
3Grommet, Crossover Tube
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5W10860448 Whirlpool Refrigerator Support
5W10860229 Whirlpool Refrigerator Support
6Grommet, Wiring
7Grommet, Flexible
9Mounting Stud, Grill
11Cap, Grommet
13Grommet, Wiring
14Wiring Harness, Cabinet
16488946 Whirlpool Air Conditioner Clamp
17WP2005378 Whirlpool Refrigerator Screw
18Hinge (Top) (Left Side)
18Hinge (Top) (Right Side)
19Shim, Hinge Top
20Guard, Wiring
21WP2004994 Whirlpool Refrigerator Hinge Bushing
22Bushing
24Spring, Door Closure
24Spring, Door Closure (Refrigerator Side)
25W11624204 Whirlpool Screw
26WP489236 Whirlpool Refrigerator Ring
27Fastener (3)
28Gap, Cover Assembly (Bottom)
29W10527053 Whirlpool Refrigerator Door Hinge
29WP2006780 Whirlpool Refrigerator Door Hinge
30WP2302876 Whirlpool Refrigerator Hinge Bushing
33Linkage, Door Closure
34Grille Base, Front (White)
34Grille Base, Front (Black)
35Screw
36Cover, Rear
37Grommet, Wiring
39Cup, Wiring
40WPL 2004565
41WP1163283 Whirlpool Air Conditioner Screw
42WP4211117 Whirlpool Refrigerator Connector
43WP8204624 Whirlpool Bolt
