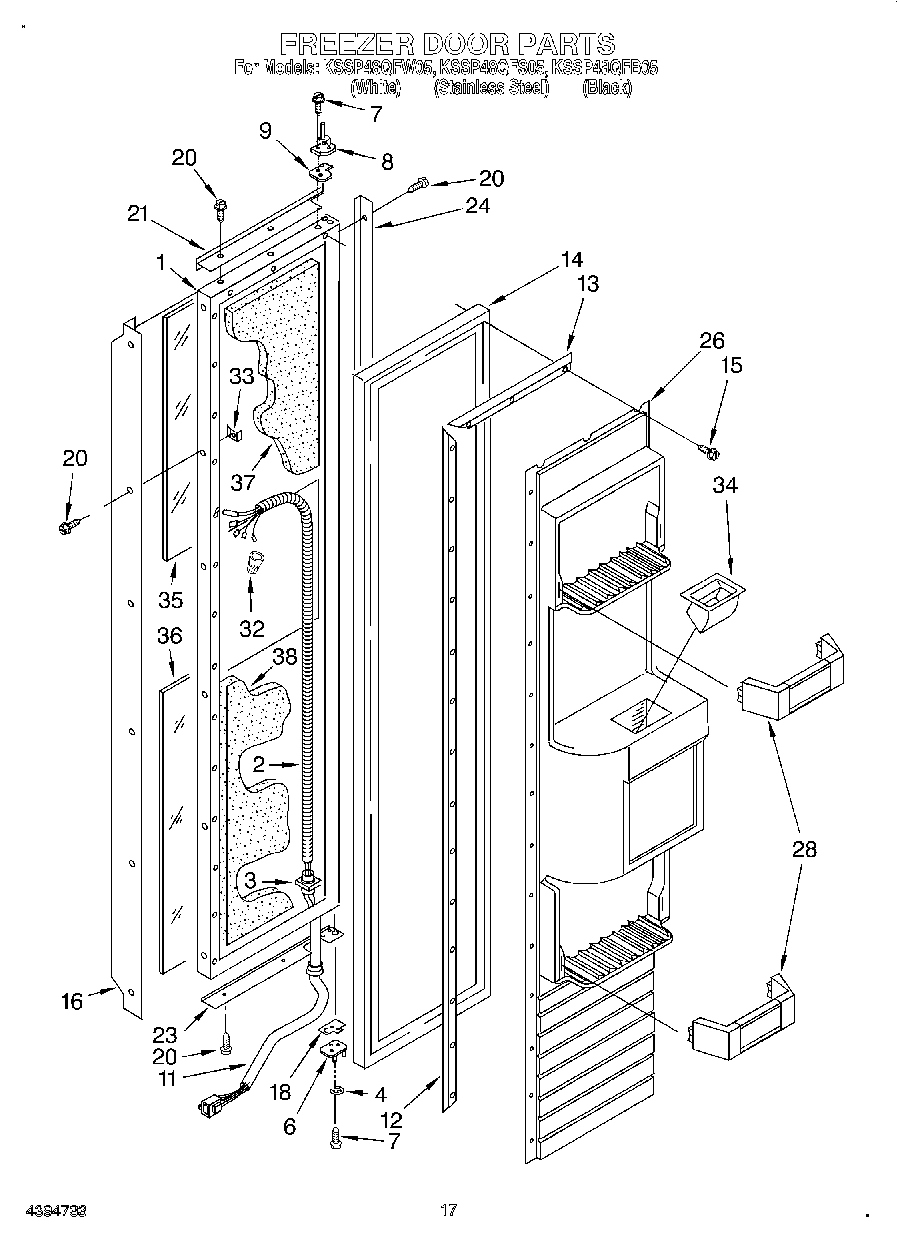

KSSP48QFB05 12 – FREEZER DOOR
Written by
in
KSSP48QFB05 12 – FREEZER DOOR
Products
Position
Product
1
Freezer Door Panel (Includes Insulation)
2
Tube, Wiring
3
Retainer, Tube
4
Retaining Ring, Door-Closure
6
Hinge, Bottom
7
W11474472 Whirlpool Screw
8
Hinge Assembly, Top
9
Spacer-Hinge, Top
11
Wiring Harness, Freezer Door
12
Gasket Retainer, Side (2)
13
Gasket Retainer, Top & Bottom
14
2188319A Whirlpool Refrigerator Door Gasket
15
W11624204 Whirlpool Screw
16
Handle, Door (White)
16
Handle, Door
16
Handle, Door (Stainless Steel)
18
Door, Spacer
20
Screw (White)
20
WP488729 Whirlpool Refrigerator Door Screw
21
Trim-Door, Top
21
Trim (Top)
21
Trim (Top) (White)
23
Trim (Bottom) (Stainless Steel)
23
Trim (Bottom)
23
Trim (Bottom) (White)
24
Trim (Side) (White)
24
Trim (Side) (Stainless Steel)
24
Trim (Side)
26
Panel, Interior Door
28
Shelf Bin (4)
32
Conector, Wire
33
WP939101 Whirlpool Refrigerator Plate
34
Ice Chute
35
Panel, Decorative Upper (Stainless Steel)
35
Panel, Decorative Upper (Black)
35
Panel, Decorative Upper (White)
36
Panel, Decorative Lower (White)
36
Panel, Decorative Lower (Black)
36
Panel, Decorative Lower (Stainless Steel)
37
Insulation
38
Insulation
←
