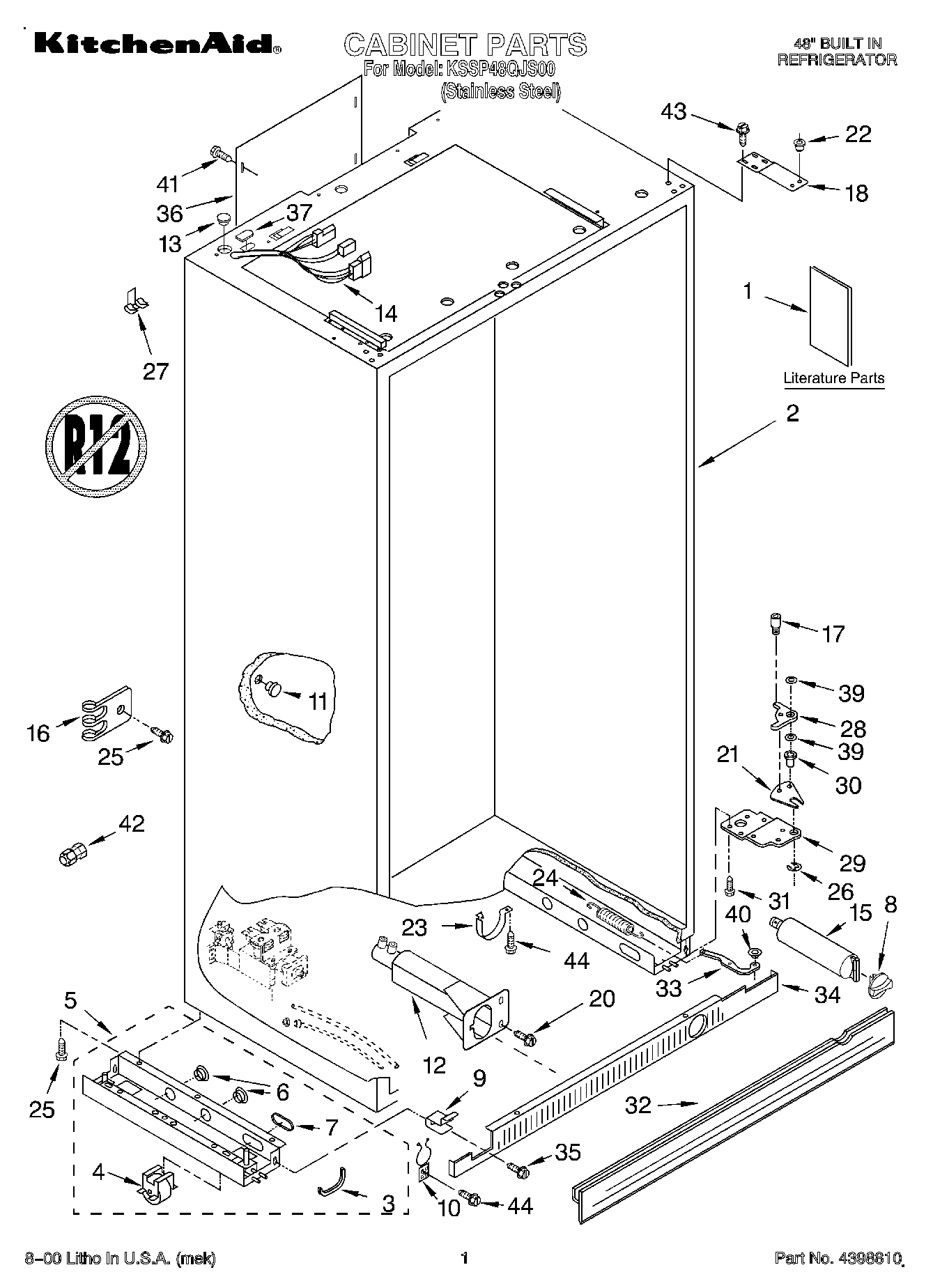

KSSP48QJS00 01 – CABINET, LITERATURE

KSSP48QJS00 01 – CABINET, LITERATURE

Written by

in

KSSP48QJS00 01 – CABINET, LITERATURE

Products

PositionProduct
1Energy Label
1LITERATURE PARTS (Service & Wiring Sheet)
1LITERATURE PARTS (Use & Care Guide)
1Modular Icemaker Service Sheet
1LITERATURE PARTS (Installation Instructions)
2Cabinet (Not A Serviceable Part)
3Grommet, Crossover Tube
4WPW10138054 Whirlpool Refrigerator Cabinet Roller
5W10860448 Whirlpool Refrigerator Support
5W10860229 Whirlpool Refrigerator Support
6Grommet, Wiring
7Grommet, Flexible
8WP2186494B Whirlpool Refrigerator Filter Cap
9Mounting Bracket, Grill
10Clip, Wire
11Cap, Grommet
12WP2209022 Whirlpool Refrigerator Housing
13Grommet, Wiring
14Wiring Harness, Cabinet
15EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
16Clip, Tube (3)
17WP2005378 Whirlpool Refrigerator Screw
182257644 Whirlpool Refrigerator Door Hinge
21WP2004994 Whirlpool Refrigerator Hinge Bushing
22Bushing
23Clamp, Filter Housing
24Spring, Door Closure (Refrigerator Side)
24Spring, Door Closure
25W11624204 Whirlpool Screw
26WP489236 Whirlpool Refrigerator Ring
27Fastener (3)
28Gap, Cover Assembly (Bottom)
29WP2006780 Whirlpool Refrigerator Door Hinge
29W10527053 Whirlpool Refrigerator Door Hinge
30WP2302876 Whirlpool Refrigerator Hinge Bushing
32Skirt-Grille, Bottom
33Linkage, Door Closure
34Grille Bottom, Front
35Screw
36Cover, Rear
37WPL 2209203
39WP2006346 Whirlpool Refrigerator Washer
40WPL 2004565
41WP1163283 Whirlpool Air Conditioner Screw
42WP4318044 Whirlpool Refrigerator Connector
43WP8204624 Whirlpool Bolt
44WP489464 Whirlpool Refrigerator Screw
