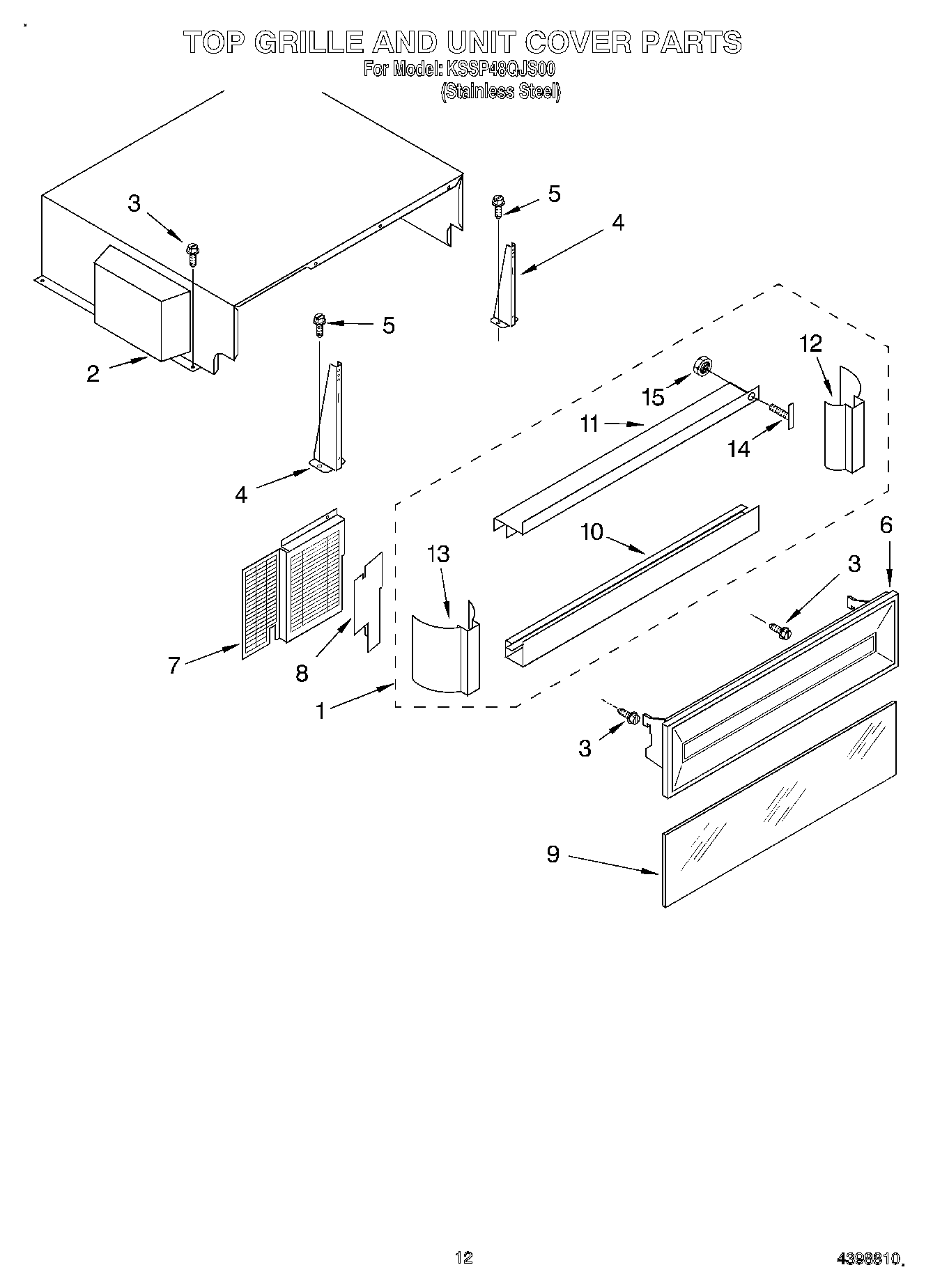

KSSP48QJS00 09 – TOP GRILLE AND UNIT COVER

Products

Position	Product
1	Top Grille Assembly (Stainless Steel)
2	Cover, Unit
3	W11624204 Whirlpool Screw
4	Grille, Bracket
5	WP8204624 Whirlpool Bolt
6	Decortive Panel Assembly (Stainless Steel)
7	Guard, Compressor Wiring
8	Baffle-Air, Condenser
9	Panel, Decorative
10	Trim, Grille Bottom (Stainless Steel)
11	Trim, Grille Top (Stainless Steel)
12	Trim, Grille Right Side
13	Trim, Grille Left Side
14	2003347 Whirlpool Screw
15	WP488130 Whirlpool Air Conditioner Nut
