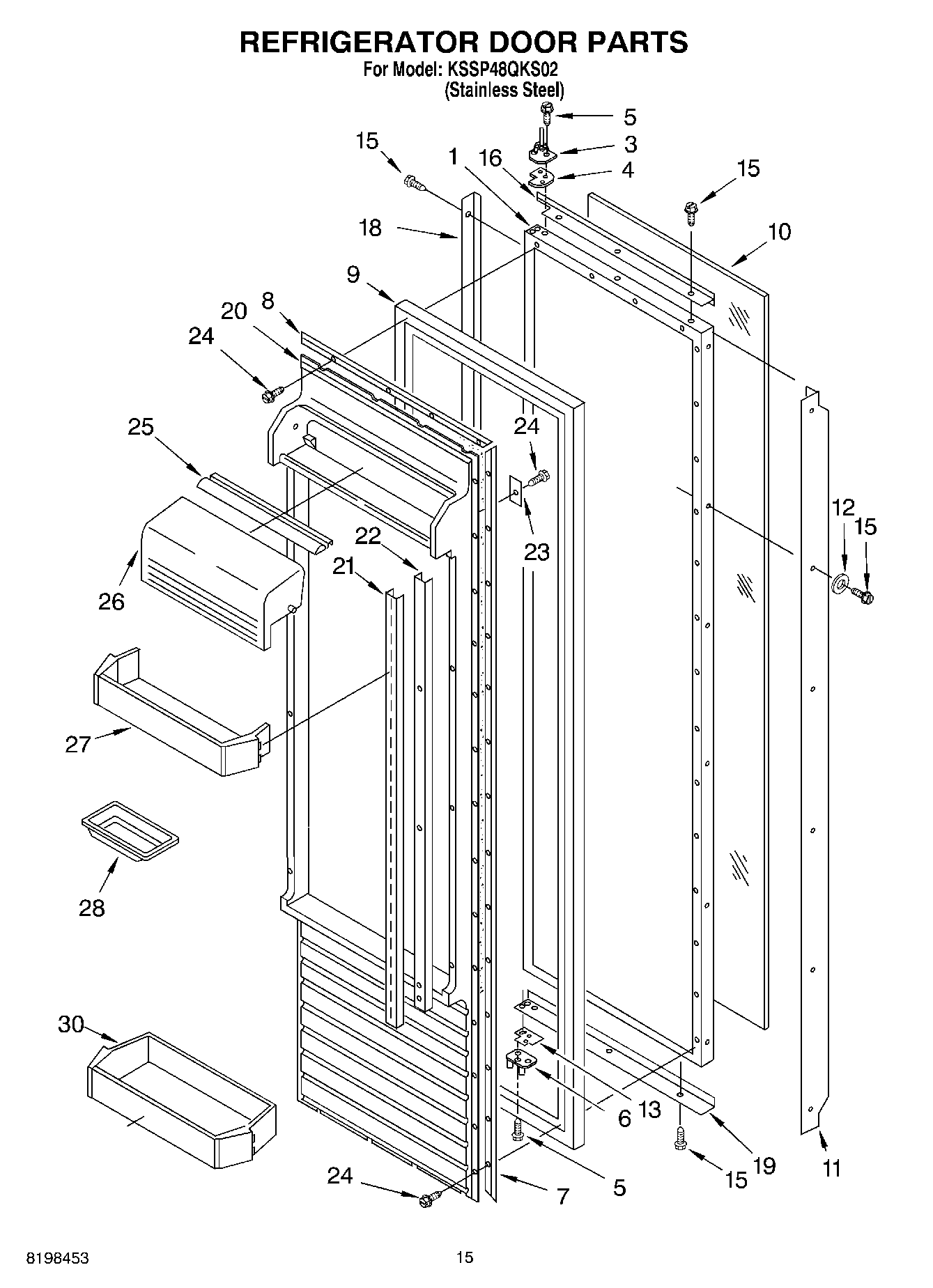

KSSP48QKS02 10 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door Panel (Includes Insulation)
3W11724512 Whirlpool Door Hinge
4Spacer-Hinge, Top
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
7Gasket Retainer, Side (2)
8Gasket Retainer, Top & Bottom
9Door Gasket, Magnetic
10Panel, Decorative Insert
11Handle, Door
12Washer
13Door Spacer, Bottom
15WP8281250 Whirlpool Refrigerator Screw
16Trim-Door, Top
18Trim-Door, Side
19Trim-Door, Bottom
20Panel, Interior Door
21Ladder, Shelf (2)
22Retainer, Shelf Ladder (2)
23Back Up Plate (8)
24W11624204 Whirlpool Screw
25Gasket Utility Door
26Door, Utility Bin
27Door Shelf (3)
28Butter Tray
30Shelf, Gallon Door
