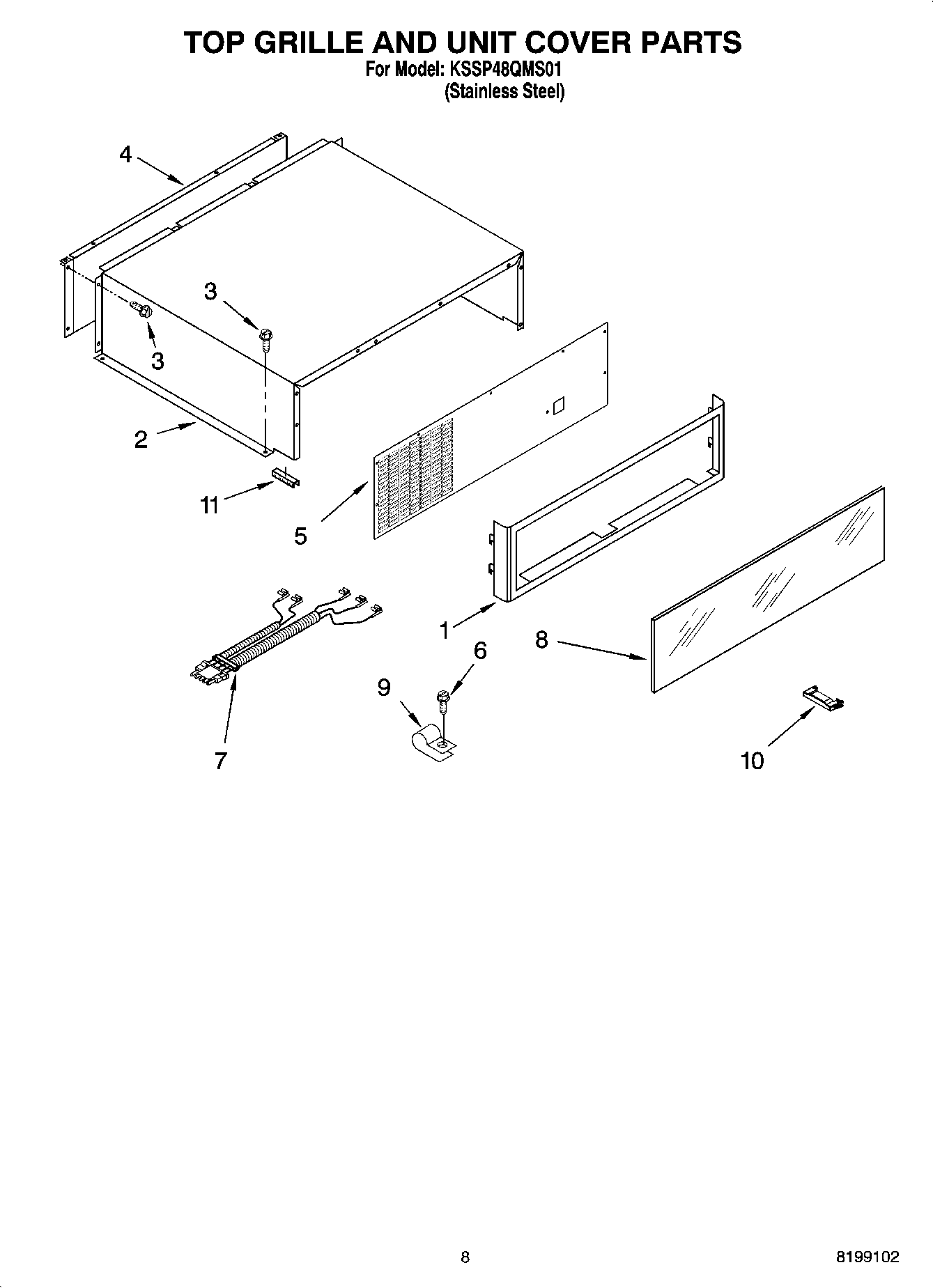

KSSP48QMS01 06 – TOP GRILLE AND UNIT COVER PARTS

Products

PositionProduct
1Top Grille Assembly (Stainless Steel)
2Cover, Unit
3W11624204 Whirlpool Screw
42256466 Whirlpool Refrigerator Unit Cover
5Front, Unit Cover
6WP965173 Whirlpool Dishwasher Screw
7Wire Assembly RC/FC Light Switch
8Panel, Decorative Insert (Stainless Steel)
9489348 Whirlpool Refrigerator Tube Clamp
10Enclosure, Connector
112215910 Whirlpool Refrigerator Grommet
