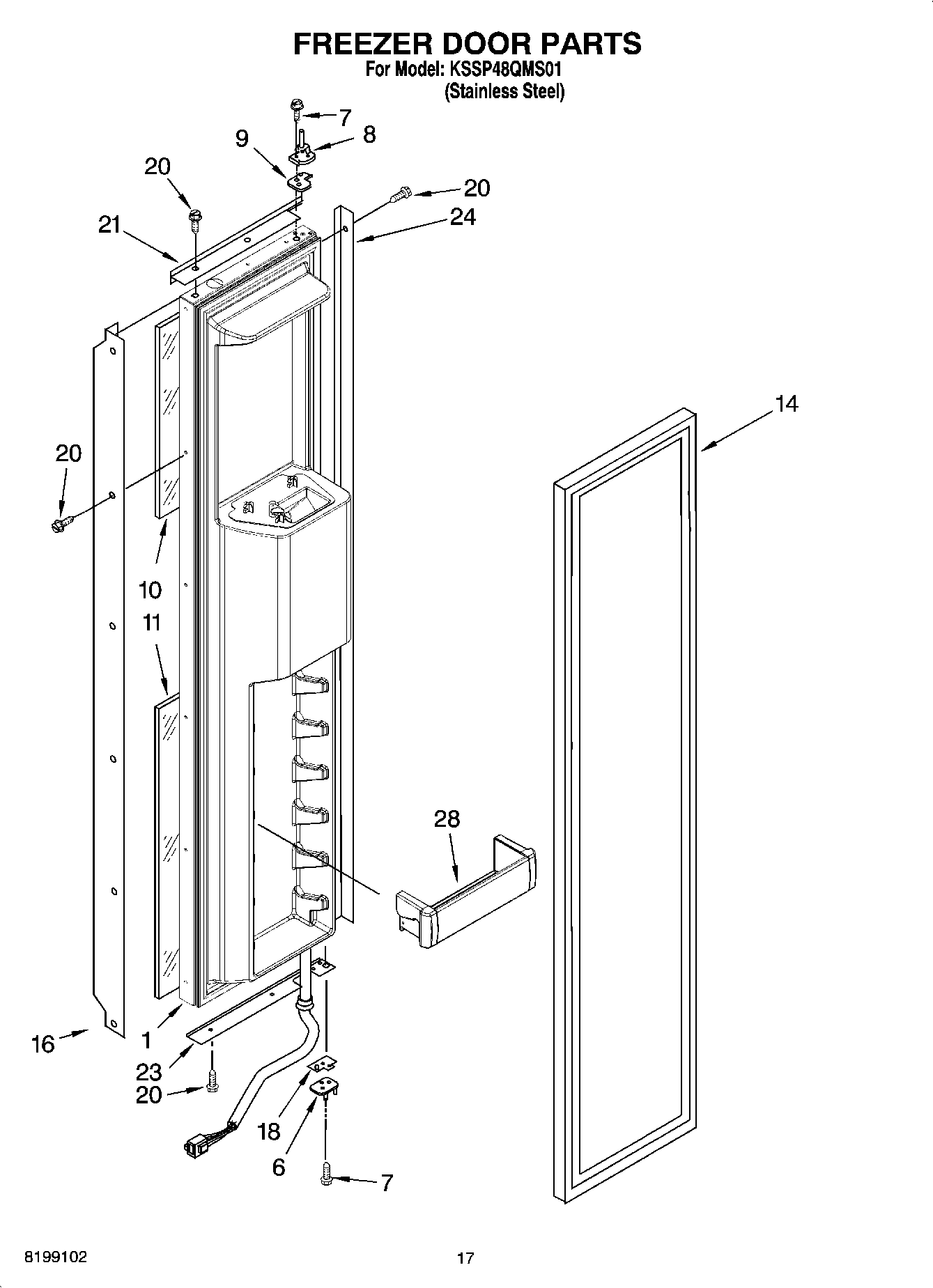

KSSP48QMS01 11 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Insulation) L2307847B Black
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
10	Panel, Decorative Upper
11	Panel, Decorative Lower
14	WP2266901 Whirlpool Door Gasket
16	Handle, Door (Stainless Steel)
18	Door Spacer, Bottom
20	WP8281250 Whirlpool Refrigerator Screw
21	Trim-Door, Top
23	Trim-Door, Bottom
24	Trim-Door, Side
28	W11590561 Whirlpool Refrigerator Cantilever Bin
28	F.C. (3)
