KSSP48QMS02 10 – REFRIGERATOR DOOR PARTS

KSSP48QMS02 10 – REFRIGERATOR DOOR PARTS

Written by

in

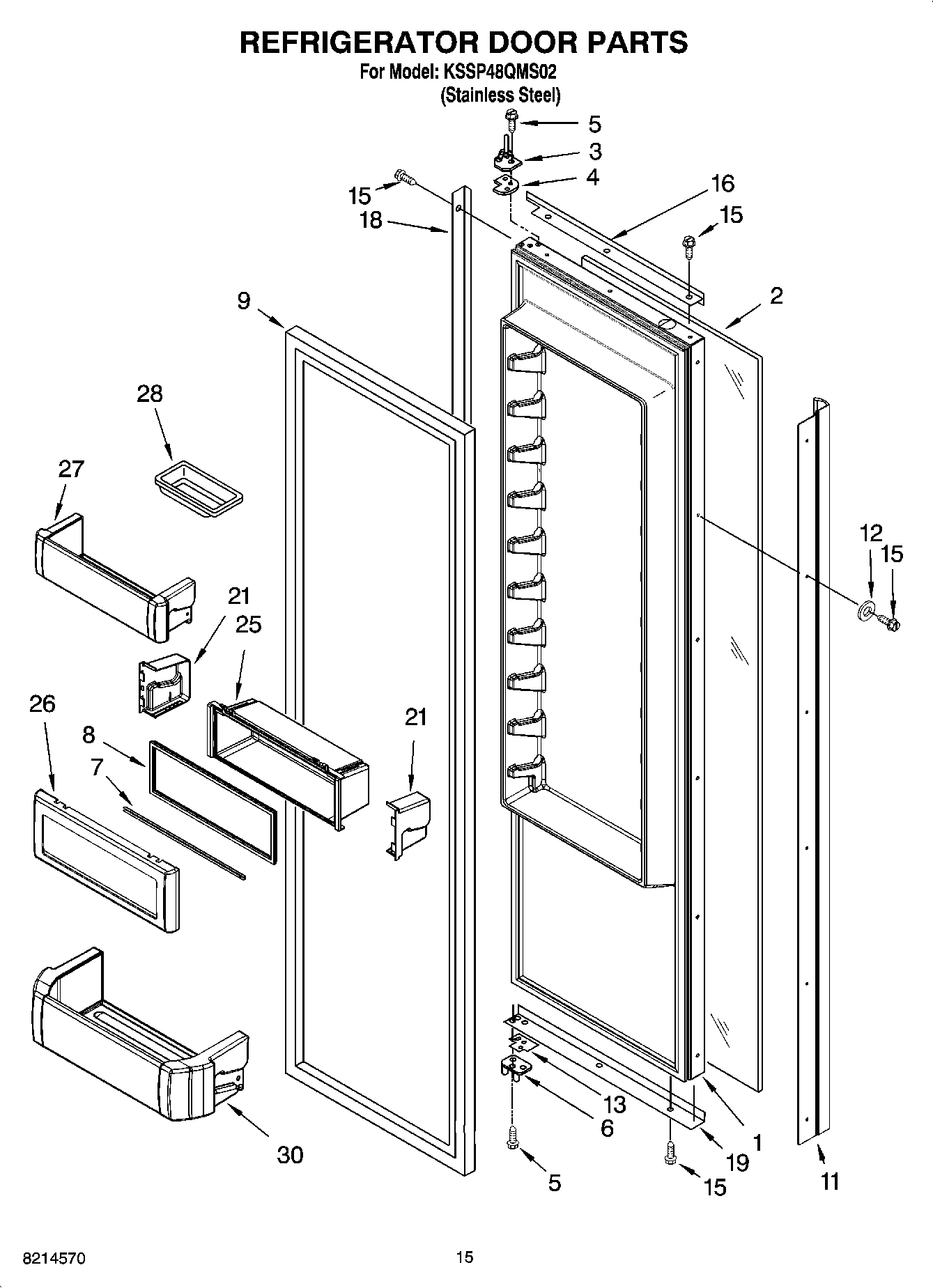

KSSP48QMS02 10 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10193491 Whirlpool Refrigerator FIP Door SS
2Panel, Decorative Insert
3W11724512 Whirlpool Door Hinge
4Spacer-Hinge, Top
5W11474472 Whirlpool Screw
62302878 Whirlpool Refrigerator Door Hinge
7W11348580 Whirlpool Refrigerator Bin
9WP2266903 Whirlpool Refrigerator Door Gasket
11Handle, Door (Stainless Steel)
12Washer
13Door Spacer, Bottom
15WP8281250 Whirlpool Refrigerator Screw
16Trim-Door, Top
18Trim-Door, Side
19Trim-Door, Bottom
21WPW10323173 Whirlpool Refrigerator Retainer End Cap
21WPW10323172 Whirlpool Refrigerator Retainer End Cap
27BIN-CNTLVR
28Butter Tray
30W10323748 Whirlpool Refrigerator Cantilever Bin
