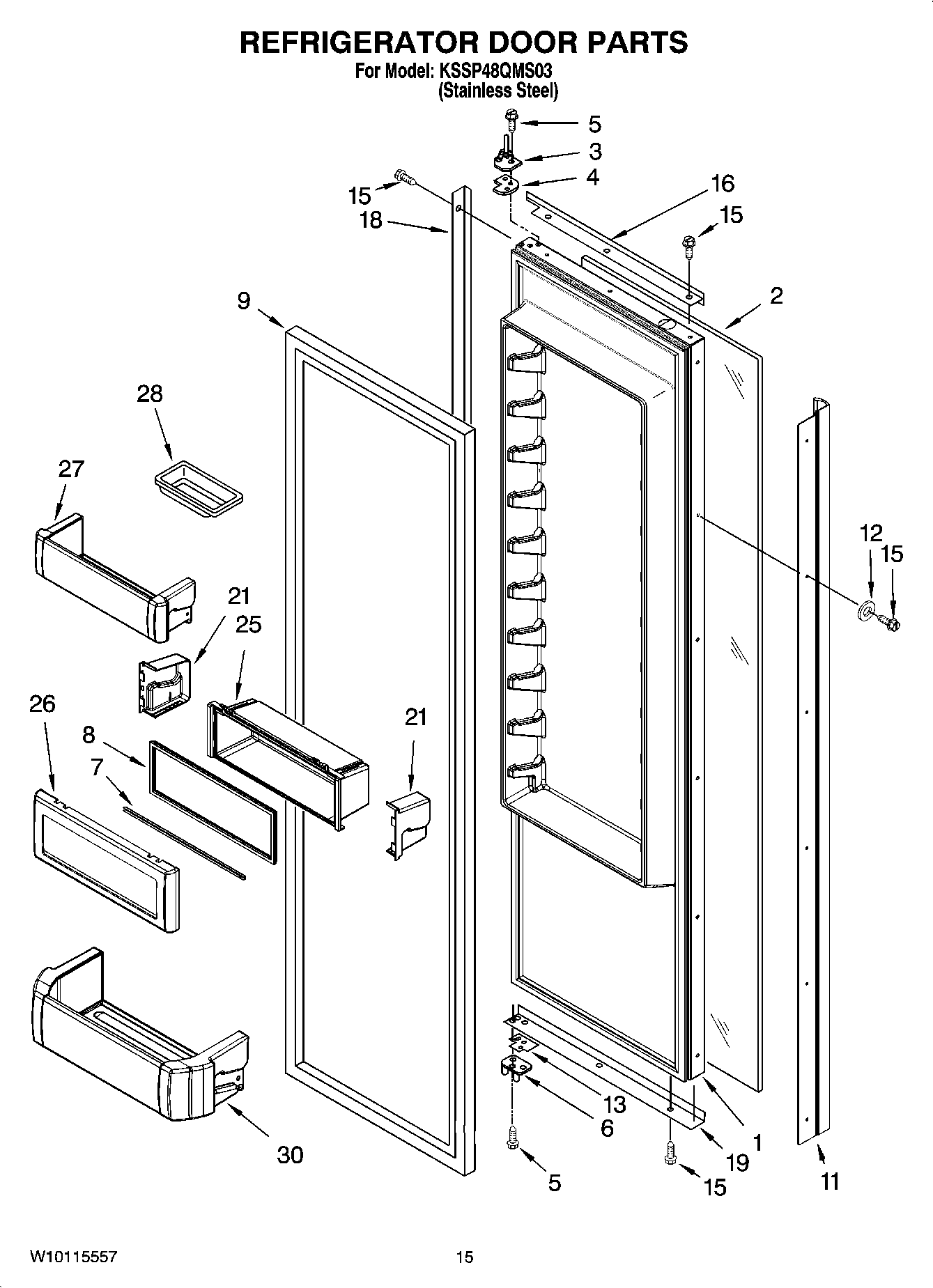

KSSP48QMS03 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193491 Whirlpool Refrigerator FIP Door SS
2	Panel, Decorative Insert
3	W11724512 Whirlpool Door Hinge
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	W11348580 Whirlpool Refrigerator Bin
9	WP2266903 Whirlpool Refrigerator Door Gasket
11	Handle, Door (Stainless Steel)
12	Washer
13	Door Spacer, Bottom
15	WP8281250 Whirlpool Refrigerator Screw
16	Trim-Door, Top
18	Trim-Door, Side
19	Trim-Door, Bottom
21	WPW10323173 Whirlpool Refrigerator Retainer End Cap
21	WPW10323172 Whirlpool Refrigerator Retainer End Cap
27	BIN-CNTLVR
28	Butter Tray
30	W10323748 Whirlpool Refrigerator Cantilever Bin
