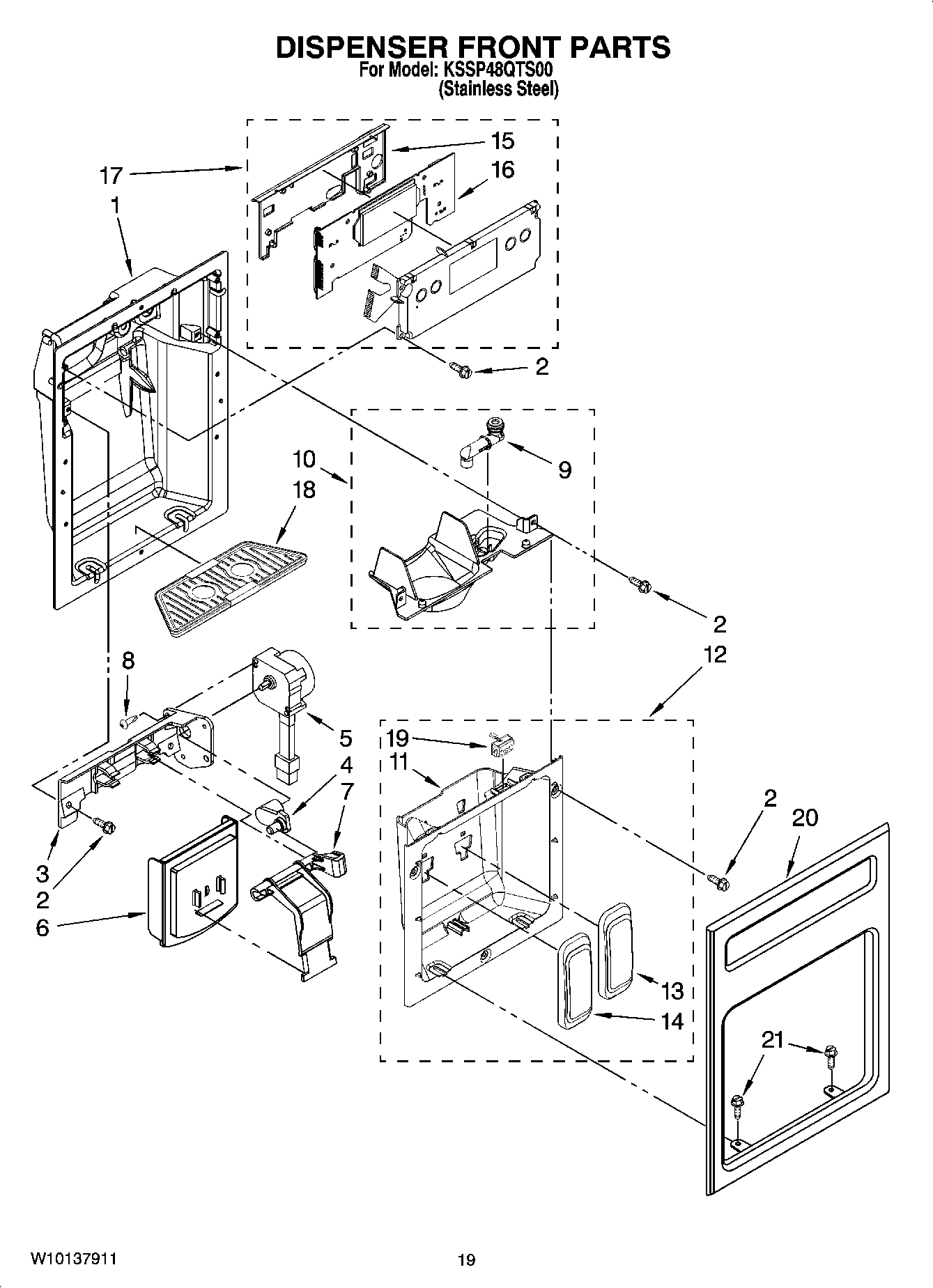

KSSP48QTS00 12 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing Dispenser (Not Serviced)
2	W11624204 Whirlpool Screw
4	WP2305242 Whirlpool Refrigerator Connector
5	WPW10205979 Whirlpool Refrigerator Ice Door Motor
6	WP2180353 Whirlpool Dispenser Door
7	WPW10546285 Whirlpool Refrigerator Motor
8	WP4449745 Whirlpool Screw
9	WP2305235 Whirlpool Refrigerator Spigot
10	2318017 Whirlpool Refrigerator Separator
11	Housing, Middle (Not Available Order Item 12)
12	WPW10260622 Whirlpool Refrigerator Front Cover
14	W10133603 Whirlpool Dispenser Actuator Pad Set
15	2305219 Whirlpool Refrigerator Cover
16	WP2321746 Whirlpool Refrigerator Electronic Control Board
17	WPW10151236-includeCORE Whirlpool WPW10151236 Washer Electronic Control Board + Core
18	W11177738 Whirlpool Refrigerator Drip Tray
19	W10222215 Whirlpool Refrigerator Light Indicator
20	Front, Cover (Universal Silver)
21	W10759522 Whirlpool Screw
