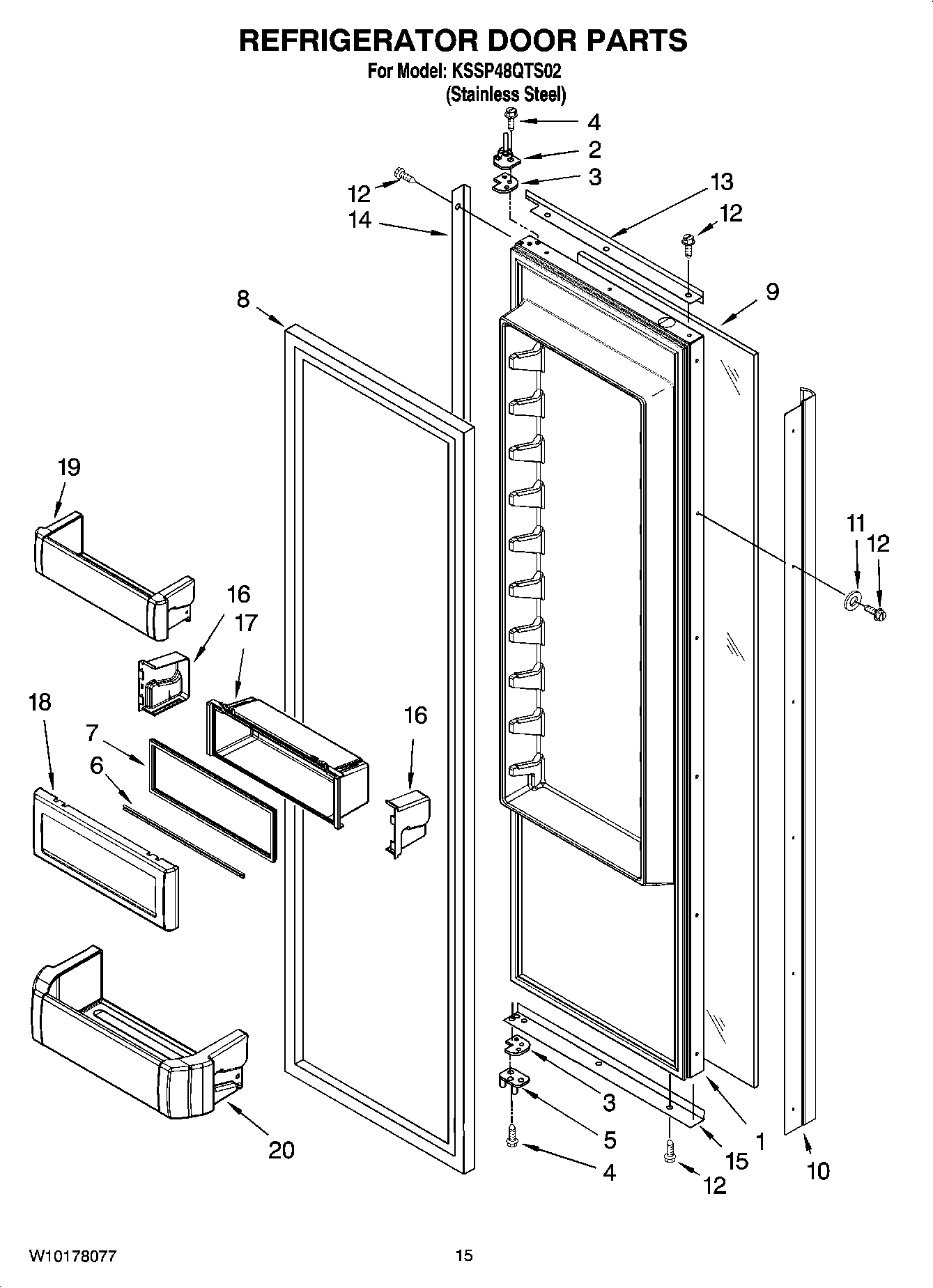

KSSP48QTS02 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193491 Whirlpool Refrigerator FIP Door SS
2	W11724512 Whirlpool Door Hinge
3	W11673500 Whirlpool Door Hinge
4	W11474472 Whirlpool Screw
5	2302878 Whirlpool Refrigerator Door Hinge
6	W11348580 Whirlpool Refrigerator Bin
8	WP2266903 Whirlpool Refrigerator Door Gasket
9	Panel, Decorative Insert
10	Handle, Door
11	Washer
12	WP8281250 Whirlpool Refrigerator Screw
13	Trim-Door, Top
14	Trim-Door, Side
15	Trim-Door, Bottom
16	WPW10323173 Whirlpool Refrigerator Retainer End Cap
16	WPW10323172 Whirlpool Refrigerator Retainer End Cap
19	BIN-CNTLVR
20	W10323748 Whirlpool Refrigerator Cantilever Bin
