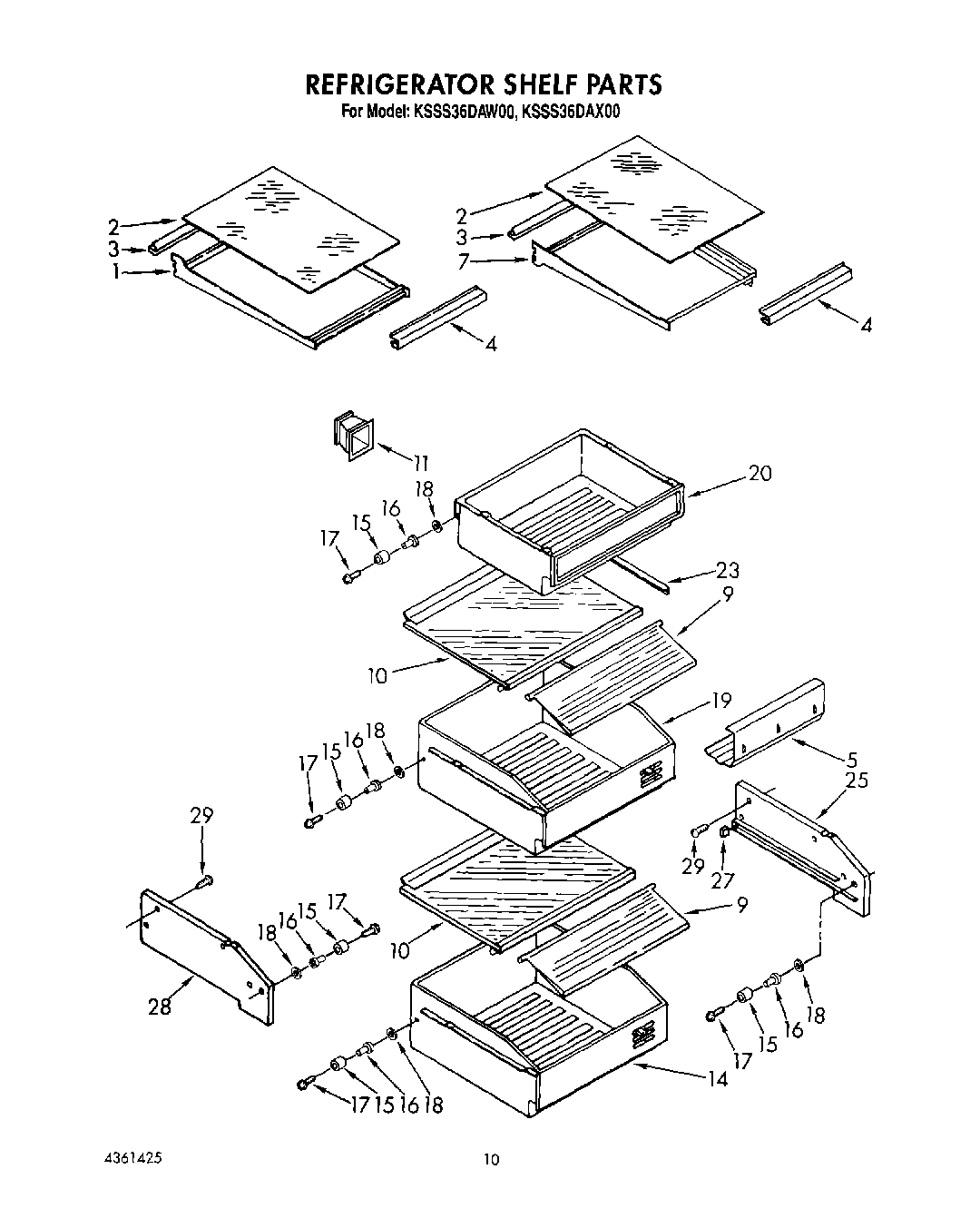

KSSS36DAW00 09 – REFRIGERATOR SHELFadmin2025-04-26T12:30:53+00:00KSSS36DAW00 09 – REFRIGERATOR SHELF
Products
| Position | Product |
|---|
| 1 | Frame, Shelf |
| 2 | Glass, Shelf |
| 3 | Reflector, Shelf |
| 4 | Gasket, Glass (2) |
| 5 | Wine & Egg Rack |
| 7 | Frame, Assembly |
| 9 | Cover, Crisper |
| 10 | Glass, Crisper |
| 11 | Meat Pan, Connector |
| 14 | Pan, Crisper |
| 15 | Roller |
| 16 | Eyelet, Roller |
| 17 | WPW10272364 Whirlpool Refrigerator Screw |
| 18 | Washer |
| 19 | Utility Pan |
| 20 | Meat Pan |
| 23 | Retainer, Glass |
| 25 | Crisper Spacer, Right Side (2) |
| 27 | Roller Stop |
| 28 | Crisper Spacer, Left Side (2) |
| 29 | W11624204 Whirlpool Screw |
