KSSS36DAW04 01 – CABINET
Written by
in

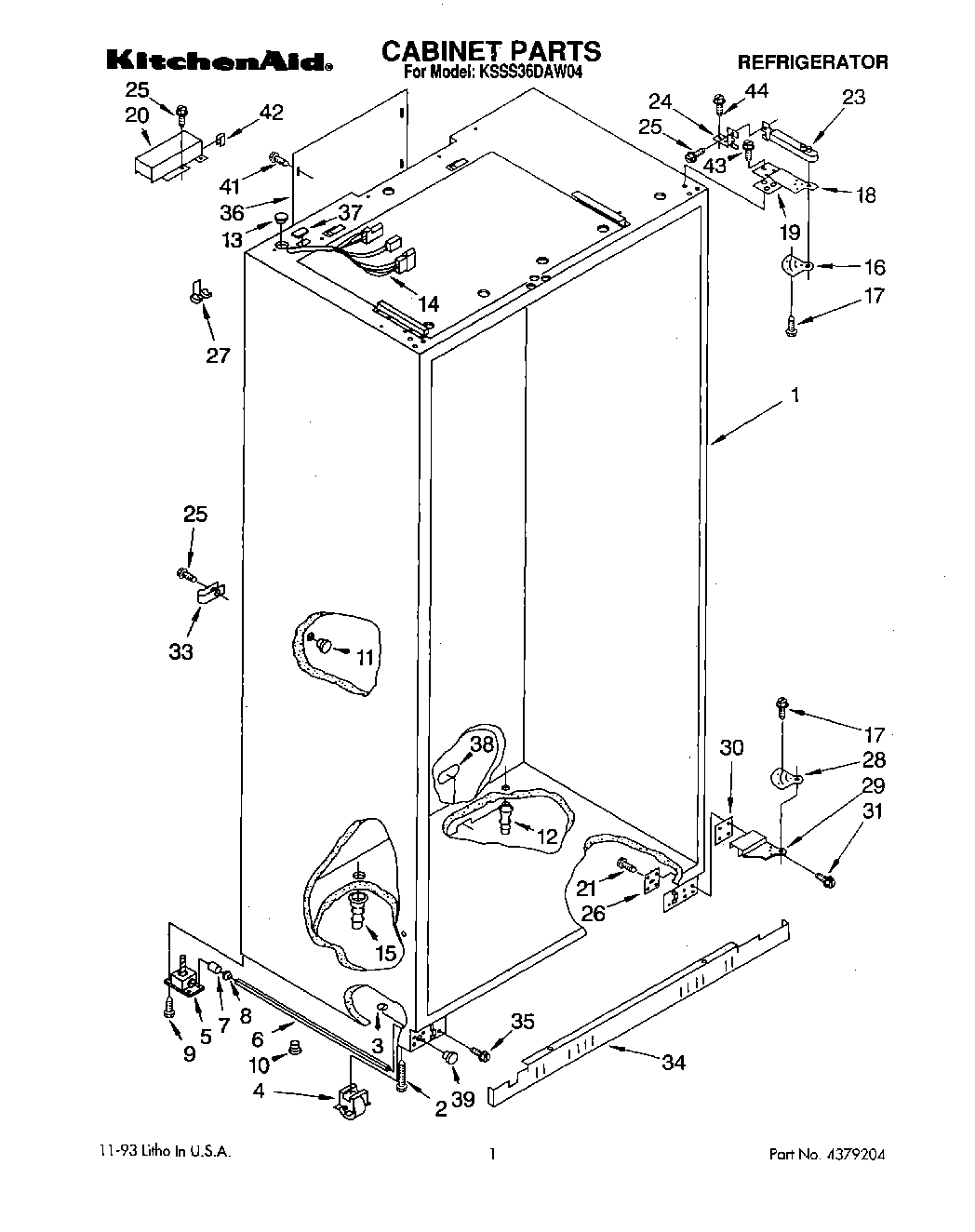

KSSS36DAW04 01 – CABINET
Products
Position
Product
1
Cabinet (Not A Serviceable Part)
2
Leveler, Front (2)
3
Retainer (2)
4
WPW10138054 Whirlpool Refrigerator Cabinet Roller
5
2005032 Whirlpool Refrigerator Leveler
6
Adjusting Rod (2)
7
Sleeve, Retainer (2)
8
Bushing, Rod (2)
10
Hole Plug, Leveler
11
Cap, Grommet
12
Grommet, Water Tube
13
Grommet, Wiring
14
Wiring Harness, Cabinet
15
Drain Fitting
16
Gap, Cover Assembly (Top) (Right Side)
16
Gap, Cover Assembly (Top) (Left Side)
17
Screw, Door Stop
18
Hinge (Top) (Left Side)
18
Hinge (Top) (Right Side)
19
Shim, Hinge Top
20
Guard, Wiring
21
WP488163 Whirlpool Refrigerator Screw
23
Door Closer Assembly (2)
24
Bracket, Door Closer
25
W11624204 Whirlpool Screw
26
Tap Plate, Hinge Butt (2)
27
Fastener (3)
28
Gap, Cover Assembly (Bottom) (Right Side)
28
Gap, Cover Assembly (Bottom) (Left Side)
29
Hinge (Bottom) (Right Side)
29
Hinge (Bottom) (Left Side)
30
Shim, Hinge Bottom (1 Each)
30
Shim, Hinge Bottom (4)
31
Screw
33
Tube clamp
34
Grille Base, Front
35
Screw
36
Cover, Rear
37
Grommet, Wiring
38
Grommet, Flexible
39
Grommet, Tube
41
SCREW
42
Flexible Grommet
43
WP8204624 Whirlpool Bolt
44
Screw
←
