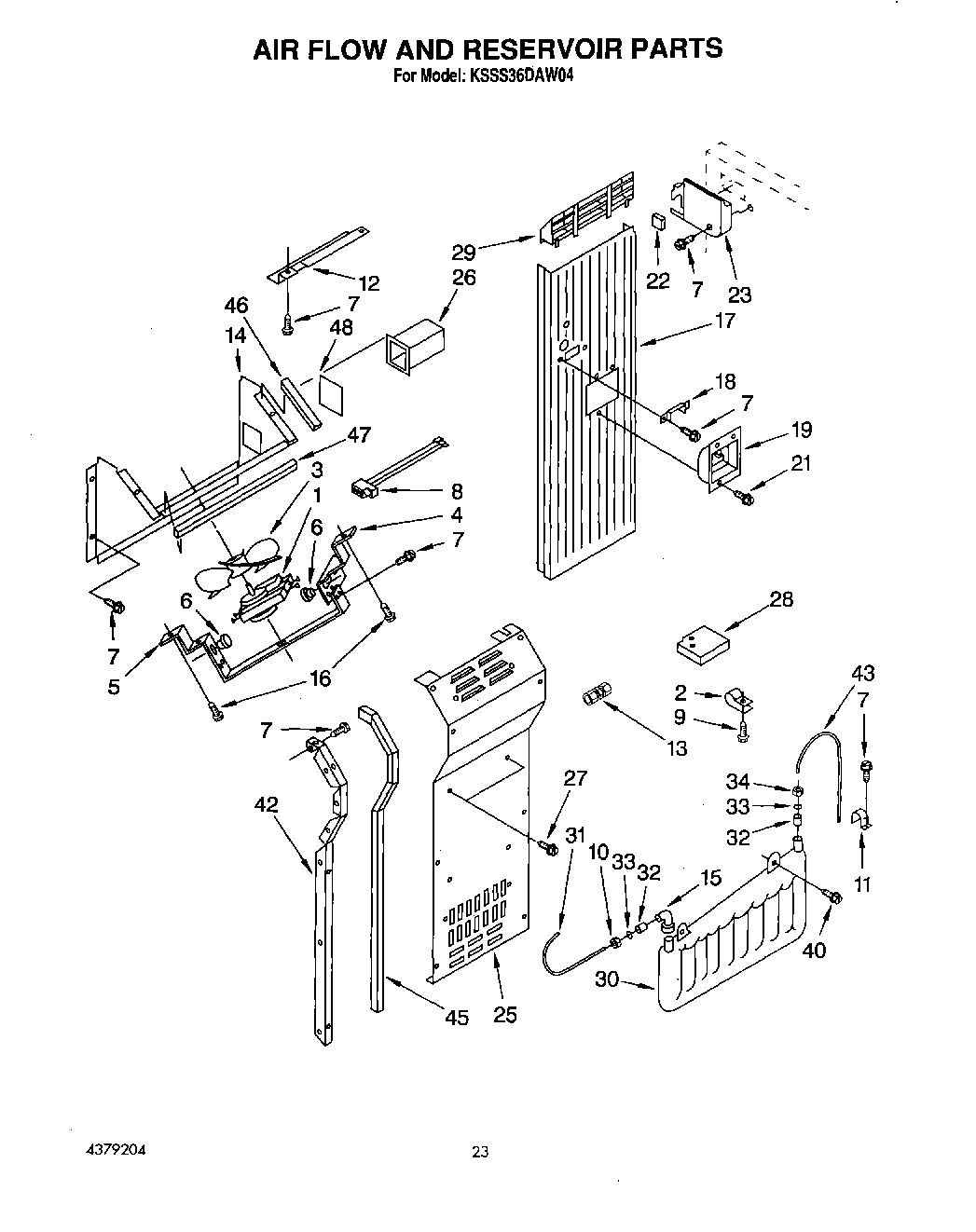

KSSS36DAW04 15 – AIR FLOW AND RESERVOIR

Products

Position	Product
1	MOTOR-EVAP
2	SCREW
3	WP2169142 Whirlpool Fan Blade
4	Fan, Bracket Double
5	Fan Bracket, Single
6	Grommet (3)
7	W11624204 Whirlpool Screw
8	Wiring Harness, Fan Motor
9	WP488366 Whirlpool Refrigerator Clamp
10	Nut, Compression
11	489348 Whirlpool Refrigerator Tube Clamp
12	Channel, Wiring
13	WP4211117 Whirlpool Refrigerator Connector
14	Scroll, Fan
15	Elbow
16	WP489069 Whirlpool Compactor Screw
17	Assembly, Air Duct
18	Air Deflector, Icemaker
19	Cup, Motor
21	Fastener (3)
22	Gasket, Air Baffle
23	Cover, Air Outlet
25	Cover, Evaporator
26	Connector, Meat Pan Duct
27	WP488729 Whirlpool Refrigerator Door Screw
28	Baffle, Evaporator
29	Diffuser, Air Duct
30	WP2256126 Whirlpool Refrigerator Reservoir
31	Water Tube (Inlet)
32	4387491 Whirlpool Refrigerator Insert
33	“O“ Ring Seal
34	Nut, Compression
40	Screw, 8 x 1-1/2
42	Evaporator, Cover Rail (Left Side)
42	Evaporator, Cover Rail (Right Side)
43	Water Tube
45	Gasket (2) Evaporator Cover
46	Gasket (2)
47	Gasket
48	Gasket
