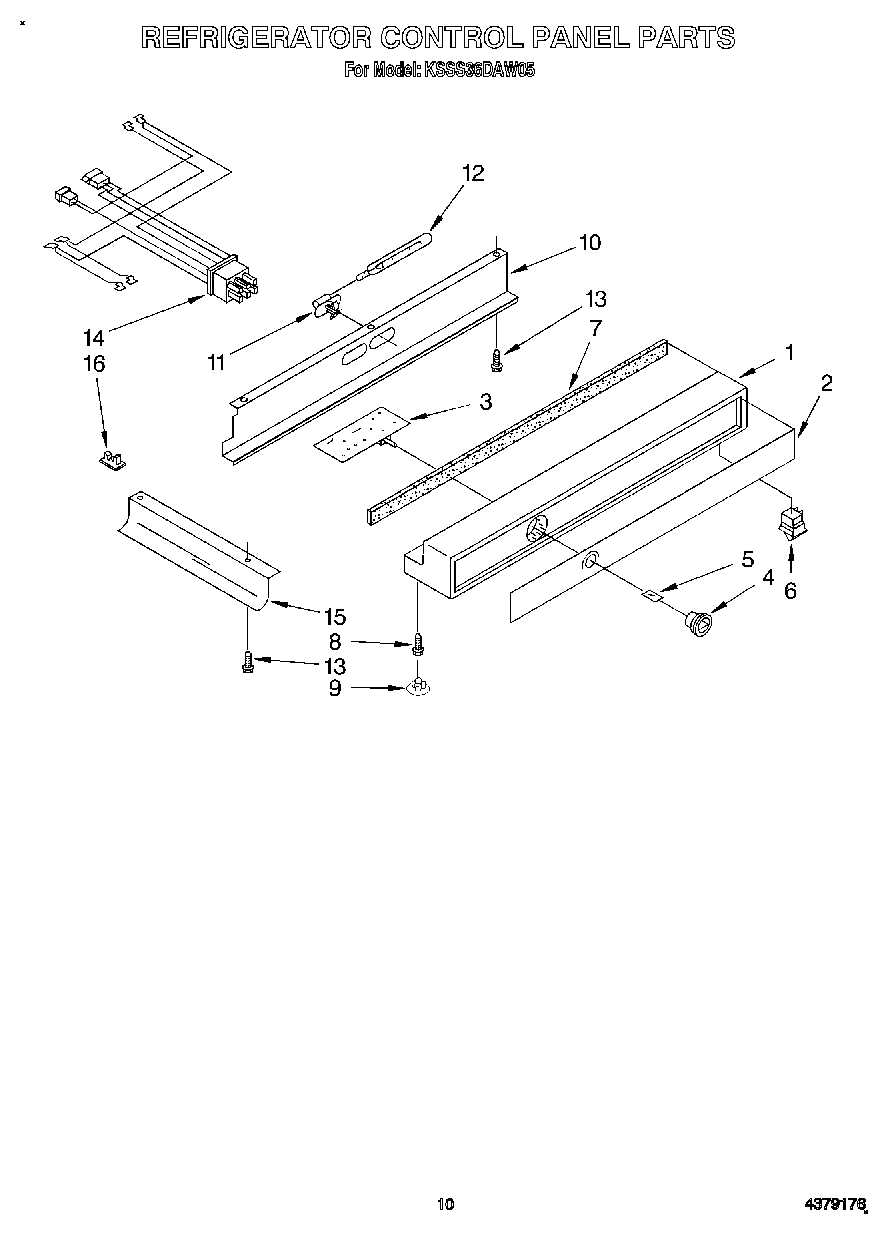

KSSS36DAW05 08 – REFRIGERATOR CONTROL PANEL

KSSS36DAW05 08 – REFRIGERATOR CONTROL PANEL

Written by

in

KSSS36DAW05 08 – REFRIGERATOR CONTROL PANEL

Products

PositionProduct
1Control Panel
2Inlay, Control Panel
3Circuit Board
4Control Knob
5Knob, Retainer
6W11384469 Whirlpool Door Switch
7Seal, Control Panel
8Screw (3)
9Hole Plug (3)
10Shield, Control Panel
11Socket, Light
12WP548049 Whirlpool Refrigerator Light Bulb
13W11624204 Whirlpool Screw
14Control Harness
15Channel, Wiring
16CLIP, WIRING
