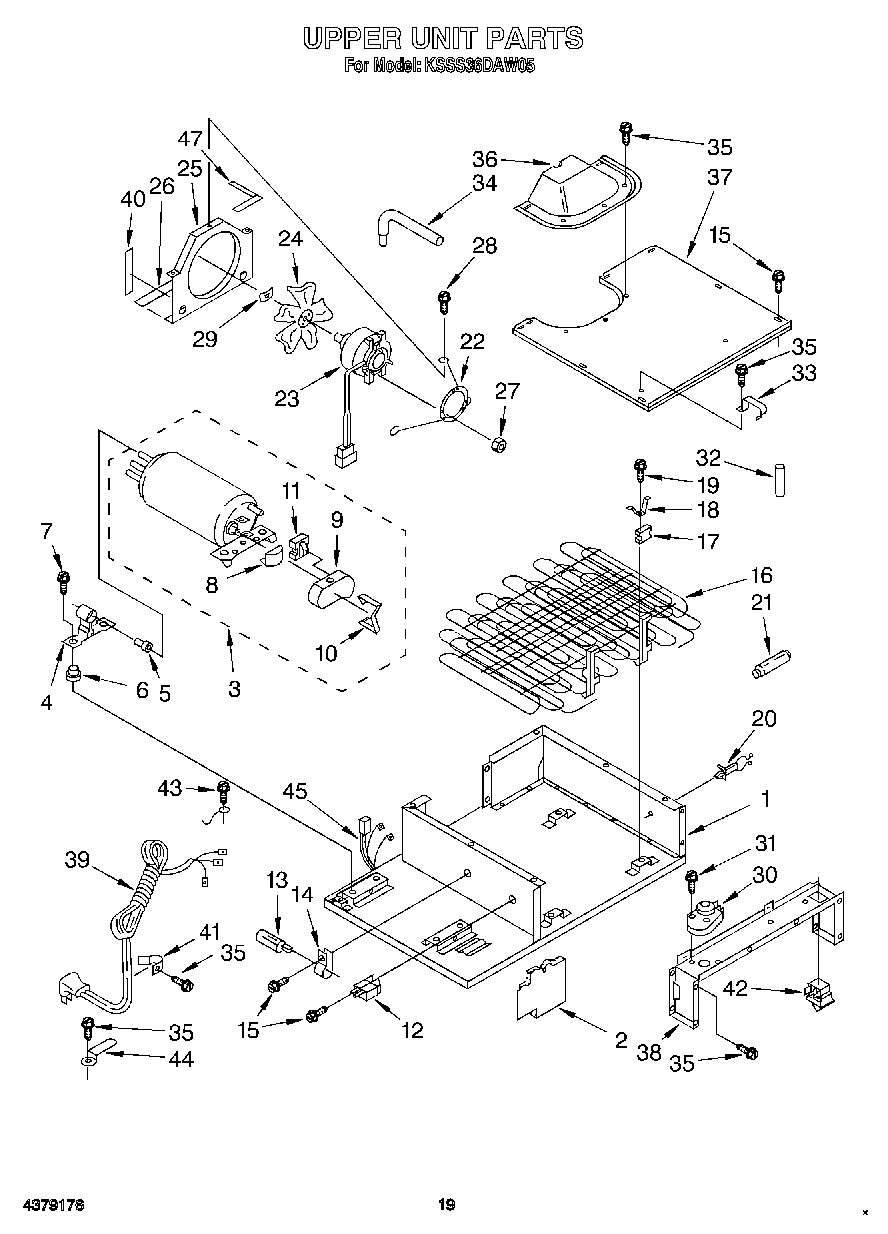

KSSS36DAW05 13 – UPPER UNIT

Products

Position	Product
1	Assembly, Unit Base
2	Assembly, Sound Barrier
3	Compressor (Includes Items 8, 9, 10, 11, 12, 13, 21) (Also Order)
3	876765 Whirlpool Primary Mounting Kit Refrigerator
4	Bracket, Mounting
5	Grommet, Compressor Bracket
6	Grommet, Compressor (4)
7	Screw (4)
8	Overload (Production Compressor Only)
8	Overload (Production) (Includes Relay)
9	Terminal Cover
9	Terminal Cover (Service)
10	Strap, Cover
11	Relay (See Overload)
12	Running Capacitor
12	WPW10662129 Whirlpool Refrigerator Run Capacitor
13	Capacitor, Start
14	Tube Clamp
15	WP965173 Whirlpool Dishwasher Screw
16	Condenser
17	Grommet (4)
18	Clamp (4)
19	Screw
20	Wire Tie (2)
21	Drier
22	Mounting Bracket, Motor
23	Motor, Fan
24	Blade, Fan
25	Orifice, Fan
26	Gasket, Orifice
27	WP488130 Whirlpool Air Conditioner Nut
28	Screw, 8 x 1/2 (3)
29	WP486692 Whirlpool Refrigerator Nut
30	WP2183400 Whirlpool Defrost Timer
31	WP3388228 Whirlpool Screw
32	Sleeve, Condenser
33	Clamp, Tube (2)
34	Process, Tube
35	W11624204 Whirlpool Screw
36	Cover, Fan
37	Cover, Condenser
38	Extension, Housing
39	Cord, Service
40	Seal Strip (2)
41	Clamp, Cord (2)
42	WP2266802 Whirlpool Refrigerator Switch
43	303776 Whirlpool Dishwasher Screw
44	Clip, Cord Plug
45	Wiring Harness, Unit Compartment
47	VALVE, ACCESS (5/8“)
47	VALVE, ACCESS (1/2“)
47	WP978025 Whirlpool Refrigerator Valve
47	978030 Whirlpool Refrigerator Valve
47	Gasket (2)
47	978027 Whirlpool Refrigerator Primary Valve
47	978026 Whirlpool Refrigerator Primary Valve
47	876764 Whirlpool Refrigerator Primary Valve
