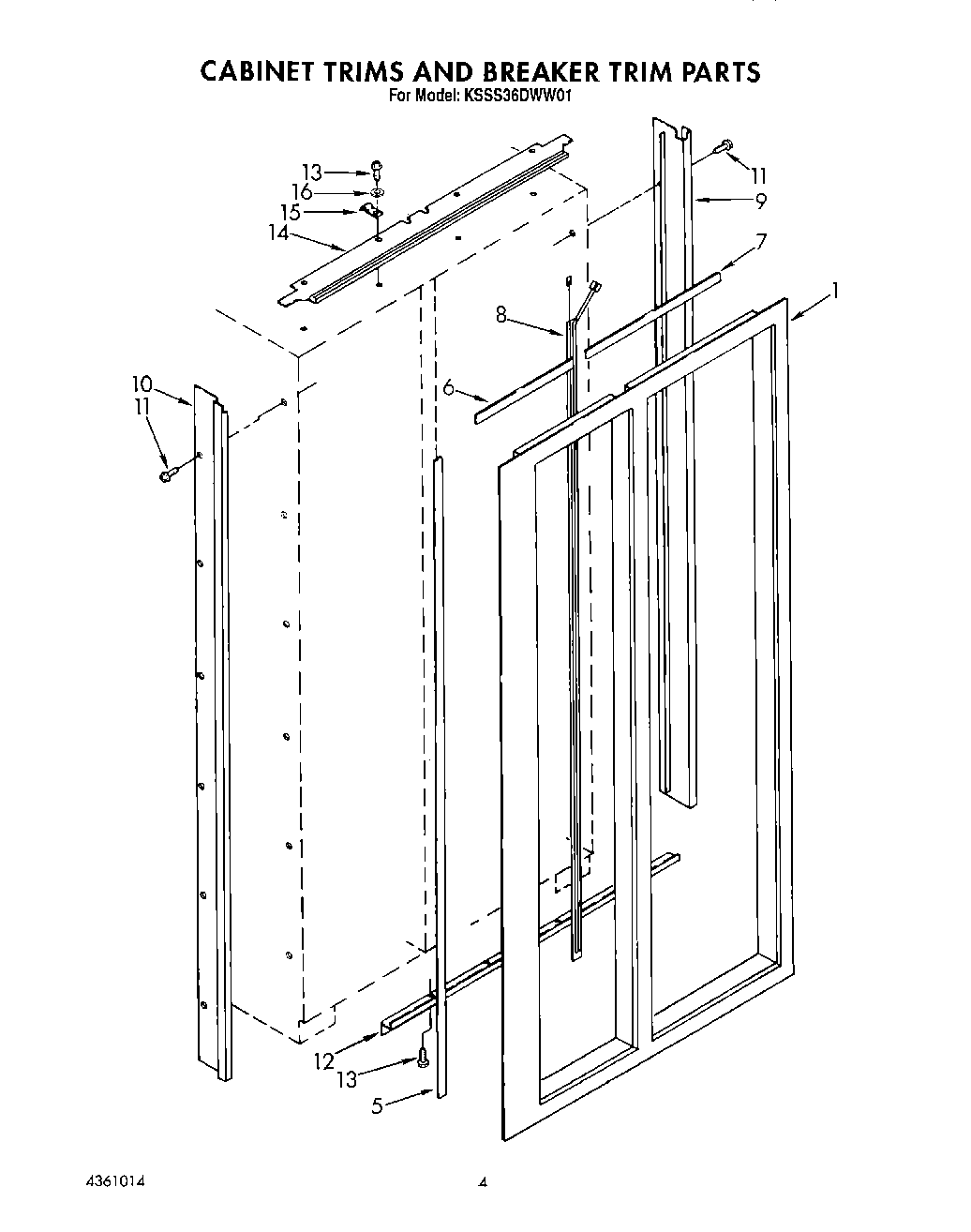

KSSS36DWW01 02 – CABINET TRIMS AND BREAKER TRIM

KSSS36DWW01 02 – CABINET TRIMS AND BREAKER TRIM

Written by

in

KSSS36DWW01 02 – CABINET TRIMS AND BREAKER TRIM

Products

PositionProduct
1Breaker Trim & Retainer Assembly
5Magnet, Side (4)
6Magnet, Freezer (2)
7Magnet, Refrigerator (2)
8Heater, Mullion
9Trim (R.S.)
10Trim (L.S.)
11Screw
11Repair, Screw
12Trim (Bottom)
13WPW10141625 Whirlpool Refrigerator Screw Assembly
14Spacer Trim, Grille
15Retainer, Unit Base (2)
16W10903204 Whirlpool Refrigerator Washer
