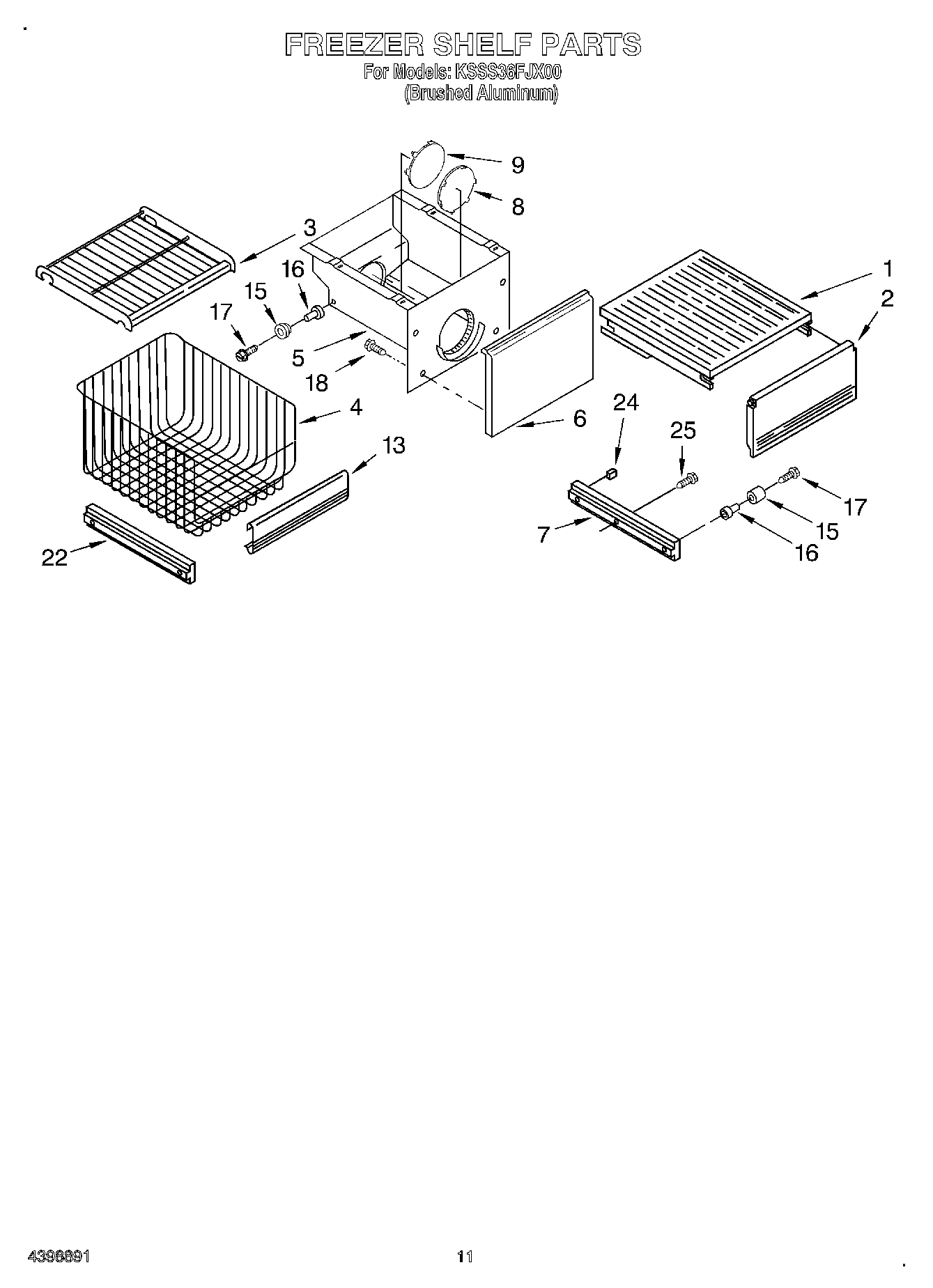

KSSS36FJX00 08 – FREEZER SHELF

Products

Position	Product
1	Solid Shelf
2	Front, Ice Compartment
3	Shelf, Fixed (2)
3	Shelf, Fixed-Deep
4	Basket
5	Ice Container
6	Front Cover
7	Slide, Container (Right Side)
7	2006518 Whirlpool Refrigerator Track
8	2003046 Whirlpool Refrigerator Plug
9	2003047 Whirlpool Refrigerator Plug
13	Trim, Basket
15	Roller
16	Eyelet, Roller
17	WPW10272364 Whirlpool Refrigerator Screw
18	WP488787 Whirlpool Refrigerator Screw
22	Slide, Basket (Right Side (2))
22	Slide, Basket (Left Side (2))
24	Roller Stop
25	W11624204 Whirlpool Screw
