KSSS36FJX00 09 – TOP GRILLE AND UNIT COVER

KSSS36FJX00 09 – TOP GRILLE AND UNIT COVER

Written by

in

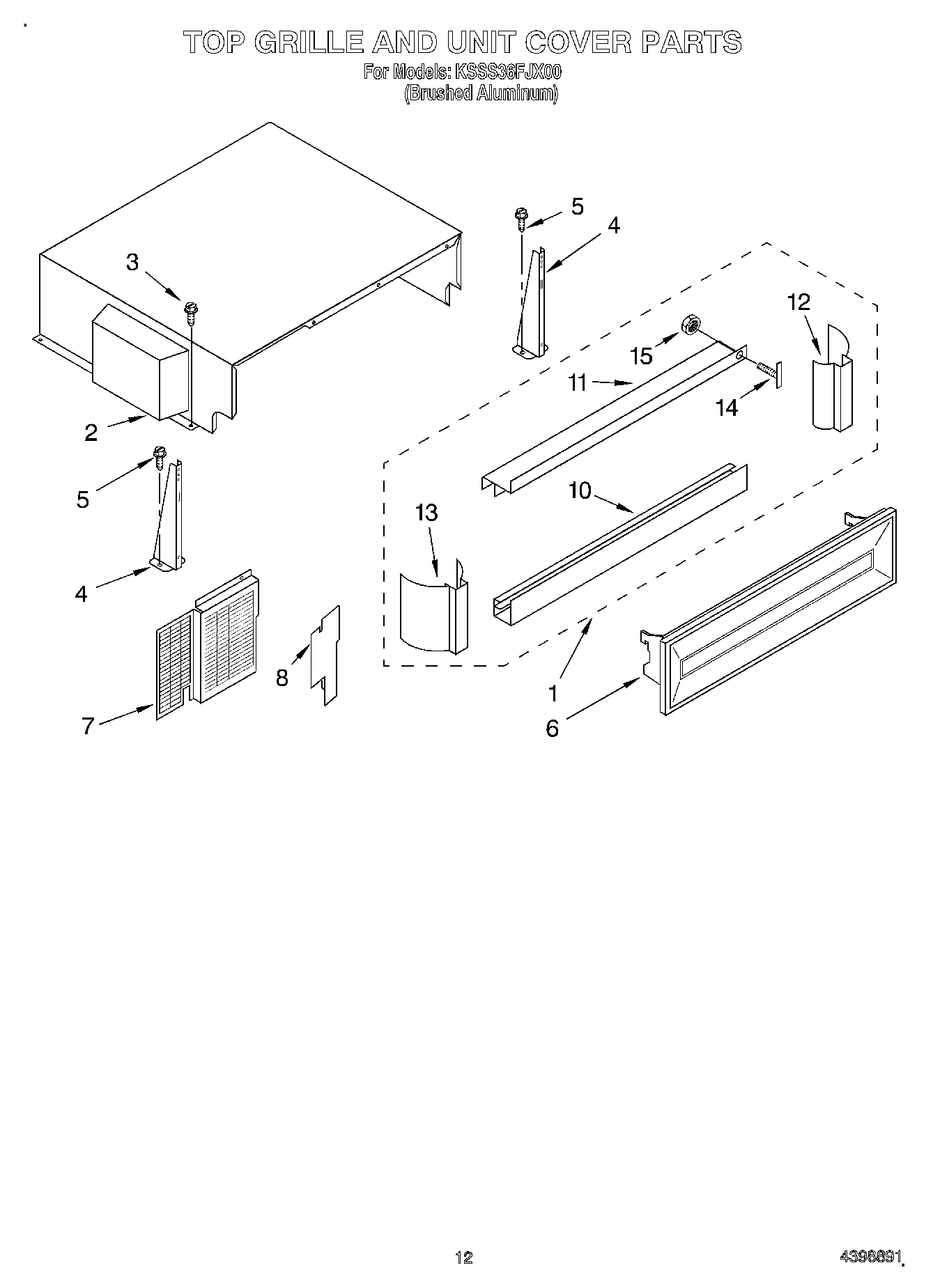

KSSS36FJX00 09 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Top Grille Assembly (Aluminum (Black Model))
2Cover, Unit
3W11624204 Whirlpool Screw
4Grille, Bracket
5WP8204624 Whirlpool Bolt
6Decortive Panel Assembly (Aluminum (Black Model))
7Guard, Compressor Wiring
8Baffle-Air, Condenser
10Trim, Grille Bottom (Aluminum (Black Model))
11Trim, Grille Top (Aluminum (Black Model))
12Trim, Grille Right Side
13Trim, Grille Left Side
142003347 Whirlpool Screw
15WP488130 Whirlpool Air Conditioner Nut
