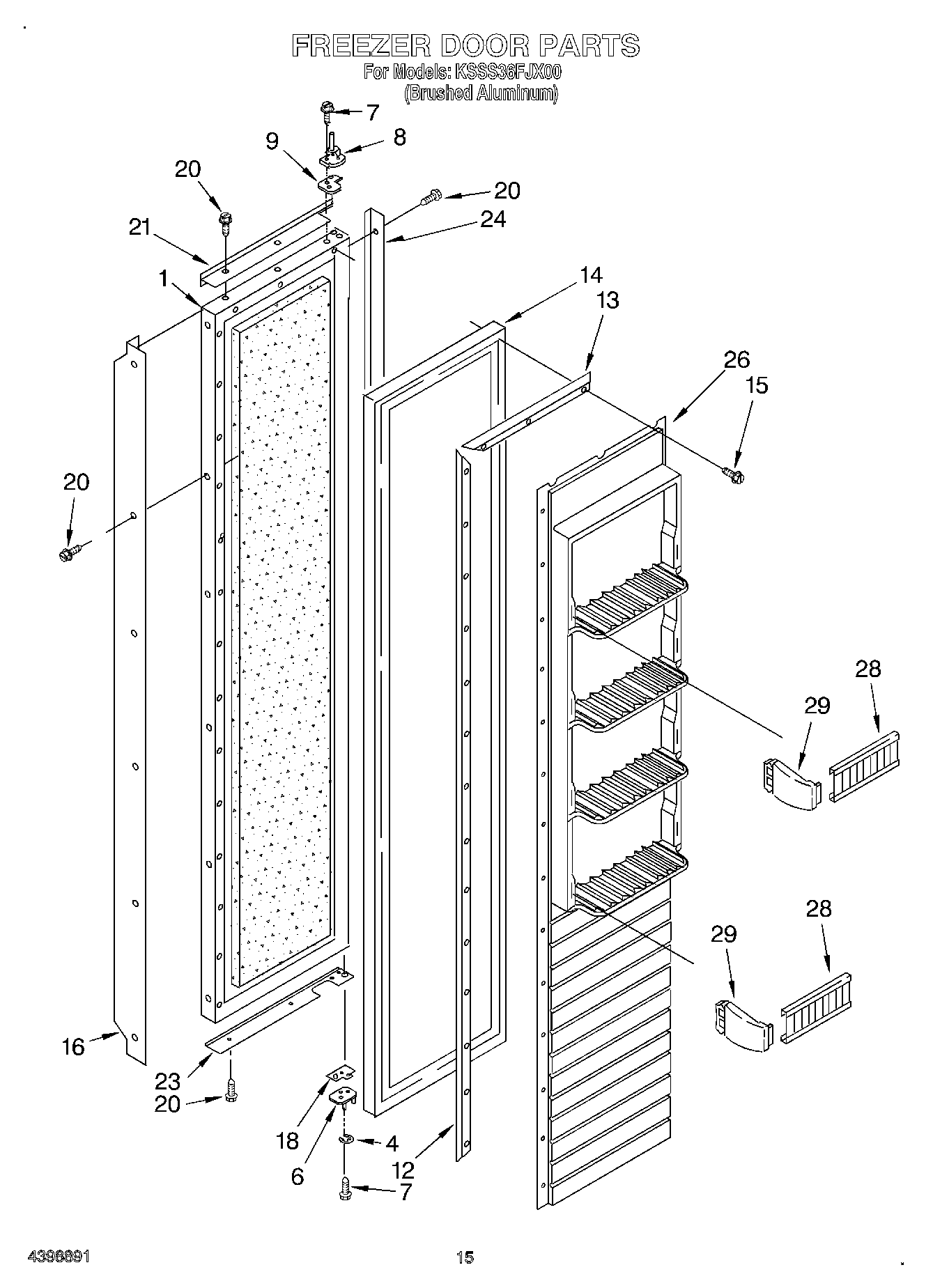

KSSS36FJX00 11 – FREEZER DOORadmin2025-04-26T12:32:05+00:00KSSS36FJX00 11 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door Panel (Includes Insulation) |
| 4 | Retaining Ring, Door-Closure |
| 6 | Hinge, Bottom |
| 7 | W11474472 Whirlpool Screw |
| 8 | Hinge, Top |
| 9 | Spacer-Hinge, Top |
| 12 | Gasket Retainer, Side (2) |
| 13 | Gasket Retainer, Top & Bottom |
| 14 | Door Gasket, Magnetic |
| 15 | W11624204 Whirlpool Screw |
| 16 | Handle, Door (Etched Aluminum) |
| 18 | Door, Spacer |
| 20 | WP488729 Whirlpool Refrigerator Door Screw |
| 21 | Trim, Door (Top) (Etched Aluminum) |
| 23 | Trim (Bottom) (Aluminum (Black Model)) |
| 24 | Trim (Side) (Etched Aluminum) |
| 26 | Interior Door Panel |
| 28 | Foot, Front (Black-Right) |
| 29 | Trim, End Cap (Right Side) |
| 29 | Trim, Endcap (Left Side) |
