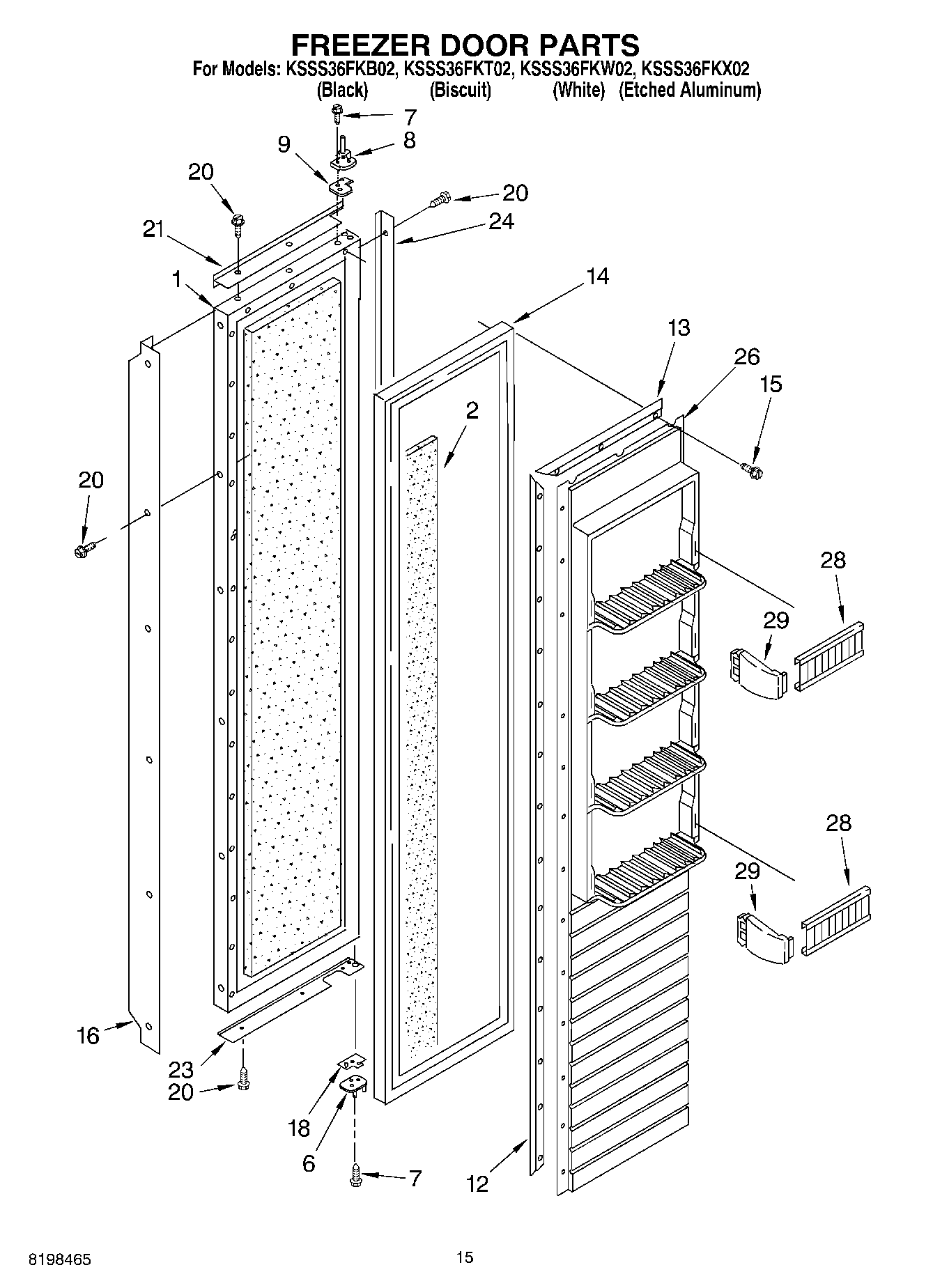

KSSS36FKT02 10 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Insulation)
2	Seal
6	HINGE-DOOR
7	W11474472 Whirlpool Screw
8	W11724512 Whirlpool Door Hinge
9	Spacer-Hinge, Top
12	Gasket Retainer, Side (2)
13	Gasket Retainer, Top & Bottom
14	Door Gasket, Magnetic
15	W11624204 Whirlpool Screw
16	Handle, Door (White)
16	Handle, Door (Biscuit)
16	Handle, Door (Black)
16	Handle, Door (Etched Aluminum)
18	Door Spacer, Bottom
20	W10851443 Whirlpool Refrigerator Screw
20	WP8281250 Whirlpool Refrigerator Screw
20	Screw 8-15 x 1/2 (White)
20	Screw 8-15 x 1/2 (Biscuit)
21	Trim (Top) (Biscuit)
21	TRIM-DOOR, TOP (BLACK)
21	TRIM-DOOR, TOP (WHITE)
21	Trim, Door (Top) (Etched Aluminum)
23	Trim (Bottom) (White)
23	Trim (Bottom) (Black)
23	Trim (Bottom) (Etched Aluminum)
23	Trim (Bottom) (Biscuit)
24	Trim (Side) (Black)
24	Trim (Side) (Biscuit)
24	Trim (Side) (White)
24	Trim (Side) (Etched Aluminum)
26	Interior Door Panel
28	Foot, Front (Black-Right)
29	Trim, Endcap (Left Side)
29	Trim, End Cap (Right Side)
