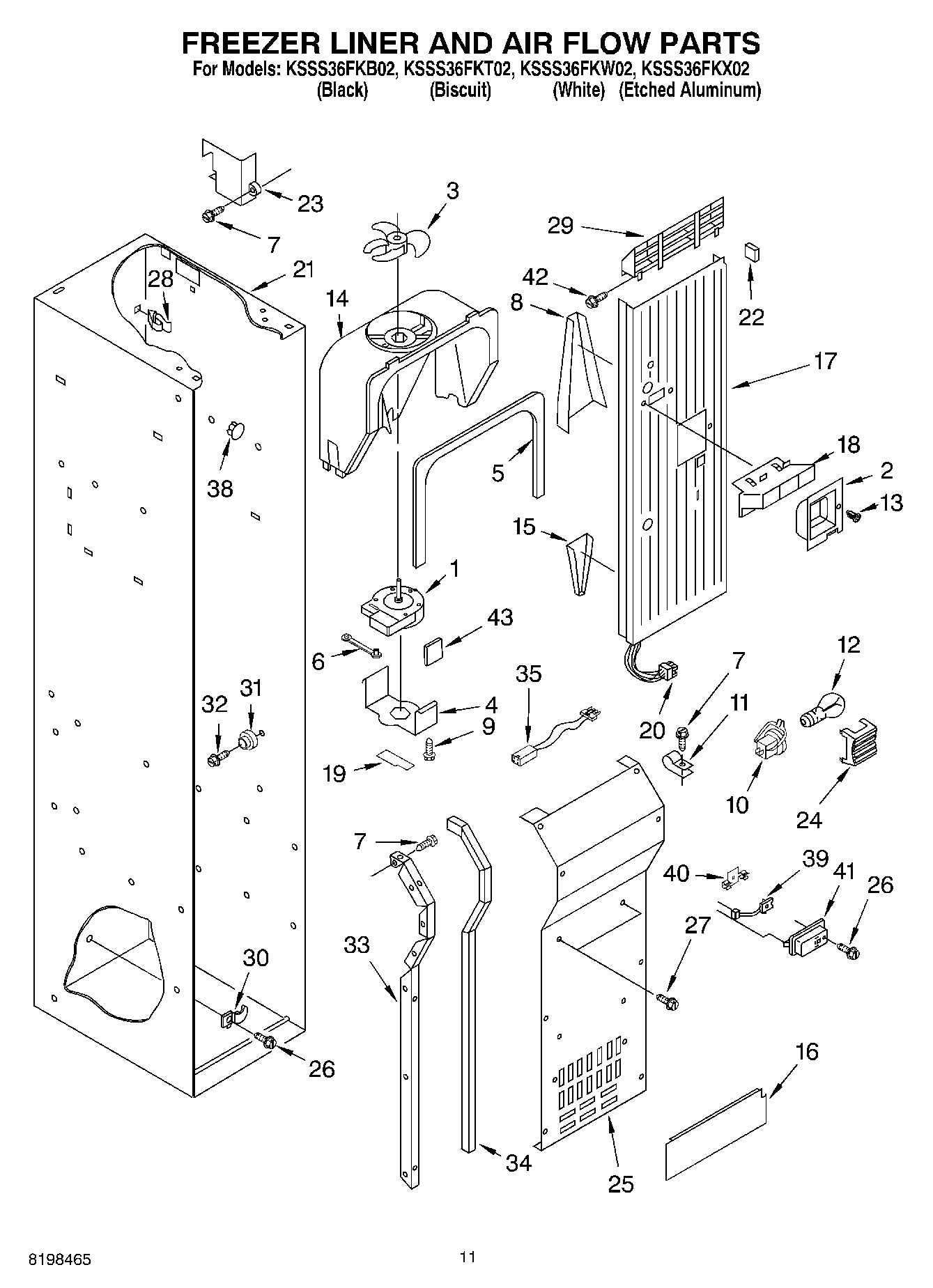

KSSS36FKX02 08 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	8201589 Whirlpool Refrigerator Evaporator Motor
2	Cup, Clearance
3	WP2169142 Whirlpool Fan Blade
4	WP2155590 Whirlpool Refrigerator Retainer
5	WP2155789 Whirlpool Refrigerator Gasket
6	8201663 Whirlpool Refrigerator Primary Fan Blade
8	Deflector, Air Duct
9	WP489128 Whirlpool Refrigerator Screw
10	4387478 Whirlpool Refrigerator Light Socket
11	Clamp, Tube
12	W10887190 Whirlpool Refrigerator Light Bulb
13	Fastener (3)
14	W11254898 Whirlpool Refrigerator Scroll Fan
15	Deflector, Air Duct
16	2215612 Whirlpool Refrigerator Duct Cover
17	Assembly, Air Duct
18	2182146 Whirlpool Refrigerator Duct
19	8201798 Whirlpool Refrigerator Fan Block
19	2209066 Whirlpool Refrigerator Fan Block
20	Harness, Wire
21	Liner (Not A Serviceable Part)
22	Gasket, Air Baffle
23	Cover, Air Outlet
24	Light Shield
25	Cover, Evaporator
26	W11624204 Whirlpool Screw
27	WP488729 Whirlpool Refrigerator Door Screw
28	2215823 Whirlpool Refrigerator Clip
29	Diffuser, Air Duct
30	1112260 Whirlpool EV Support
31	WP2196483 Whirlpool Refrigerator Shelf Stud
32	WP3400806 Whirlpool Screw
33	Evaporator, Cover Rail (Right Side)
33	Evaporator, Cover Rail (Left Side)
34	2220904 Whirlpool Refrigerator Gasket
35	Wire, Jumper
38	WP941839 Whirlpool Refrigerator Button Plug
39	WP2188820 Whirlpool Refrigerator Thermistor
40	Clip, Thermistor
41	1116793 Whirlpool Refrigerator Cover
42	WP488163 Whirlpool Refrigerator Screw
43	W11553819 Whirlpool Refrigerator Insulation
