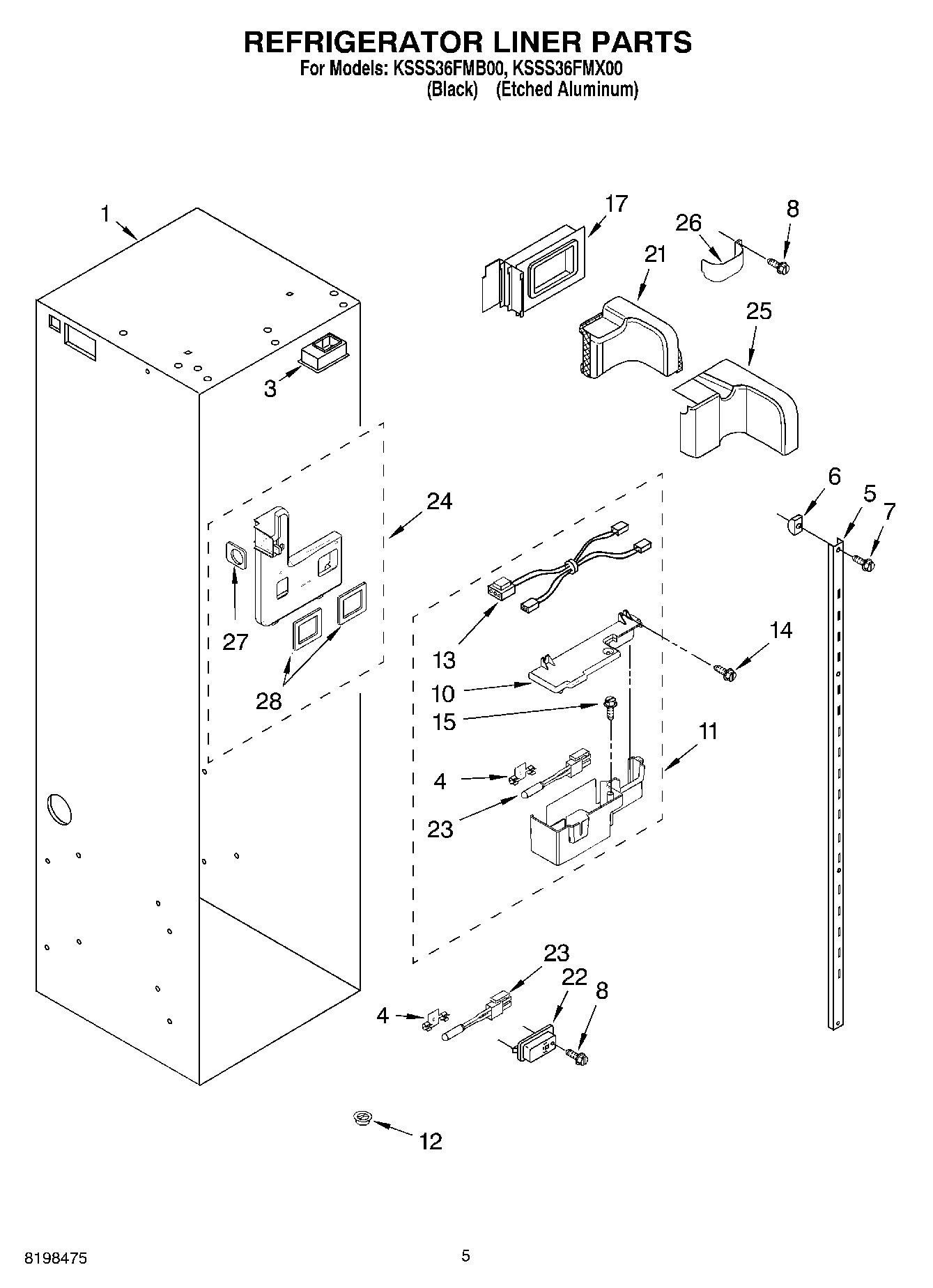

KSSS36FMB00 04 – REFRIGERATOR LINER PARTS

KSSS36FMB00 04 – REFRIGERATOR LINER PARTS

Written by

in

KSSS36FMB00 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
32208970 Whirlpool Refrigerator Air Duct
4Clip, Thermistor
5WP2259077 Whirlpool Ladder Assembly
6520965 Whirlpool Refrigerator Support
72006475 Whirlpool Refrigerator Screw
8WP488729 Whirlpool Refrigerator Door Screw
10Lid, Meat Pan Baffle
11Baffle Control Assembly
122171846 Whirlpool Refrigerator Release Valve
13Jumper, Air Baffle
14Screw, 8 x 1-1/4 (3)
15W11624204 Whirlpool Screw
17WP2221296 Whirlpool Air Baffle
21Diffuser Assembly
221116793 Whirlpool Refrigerator Cover
23WP2188820 Whirlpool Refrigerator Thermistor
24Spacer, Air Baffle
252309087 Whirlpool Refrigerator Cover
26Cover, Air Return
27Seal, Air Duct (Round Hole)
282259398 Whirlpool Refrigerator Seal
