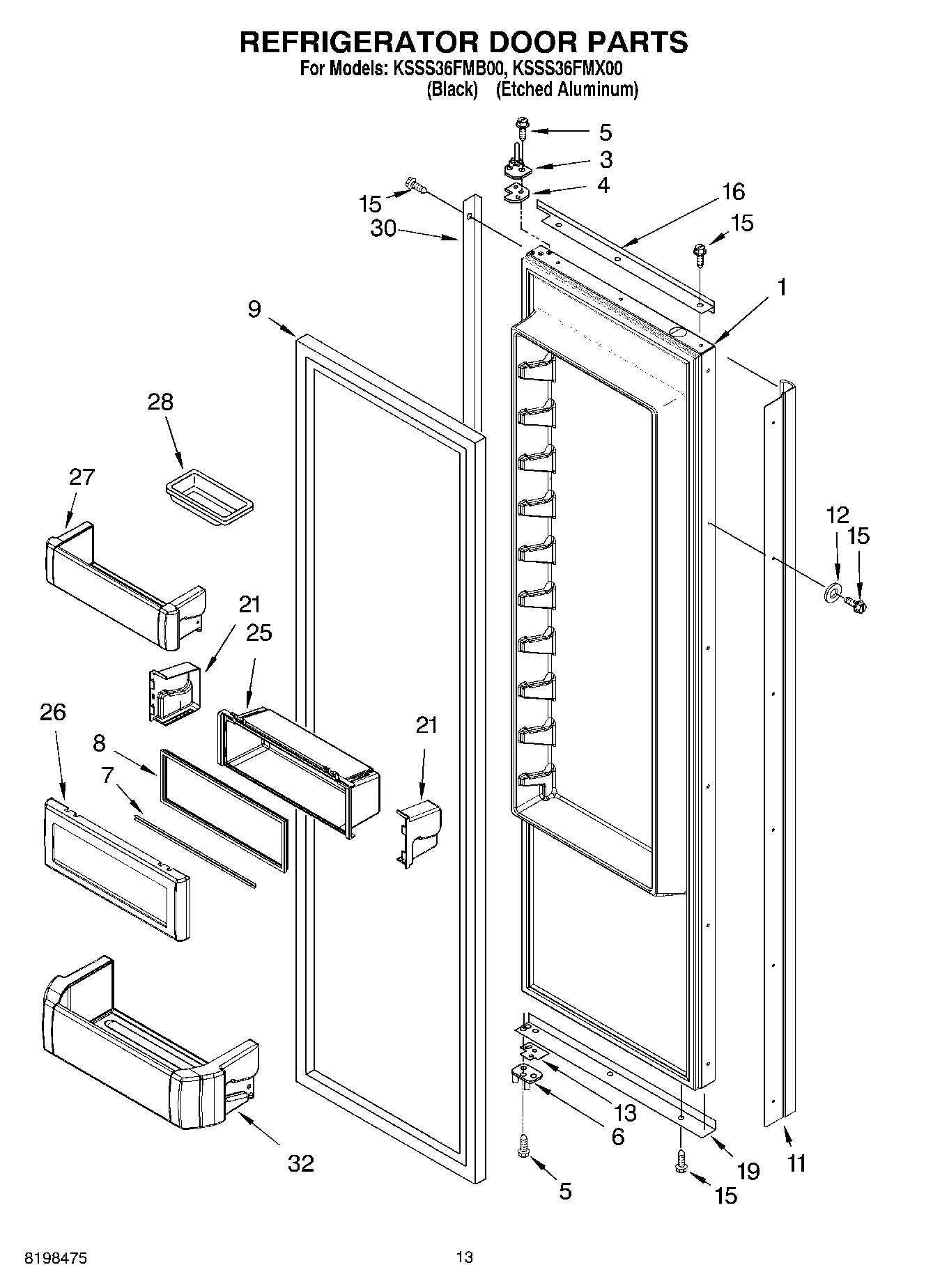

KSSS36FMB00 09 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	LW10193489 Whirlpool Refrigerator Black Foam In Place Door
3	W11724512 Whirlpool Door Hinge
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	2302878 Whirlpool Refrigerator Door Hinge
7	2222795 Whirlpool Refrigerator Rail
8	WP2222981 Whirlpool Refrigerator Gasket
9	WP2266901 Whirlpool Door Gasket
11	Handle, Door (Etched Aluminum)
11	Handle, Door (Black)
12	Washer
13	Door Spacer, Bottom
15	WP8281250 Whirlpool Refrigerator Screw
15	W10851443 Whirlpool Refrigerator Screw
16	Trim, Door (Top) (Etched Aluminum)
16	TRIM-DOOR, TOP (BLACK)
19	Trim (Bottom) (Etched Aluminum)
19	Trim (Bottom) (Black)
21	WPW10323172 Whirlpool Refrigerator Retainer End Cap
21	WPW10323173 Whirlpool Refrigerator Retainer End Cap
25	WPW10323035 Whirlpool Refrigerator Cantilever Bin
26	WPW10131132 Whirlpool Refrigerator Door Compressor
27	W10323598 Whirlpool Refrigerator Cantilever Bin
28	Butter Tray
30	Trim, Side (Black)
30	Trim, Side (Etched Aluminum)
32	W10323746 Whirlpool Refrigerator Cantilever Bin
