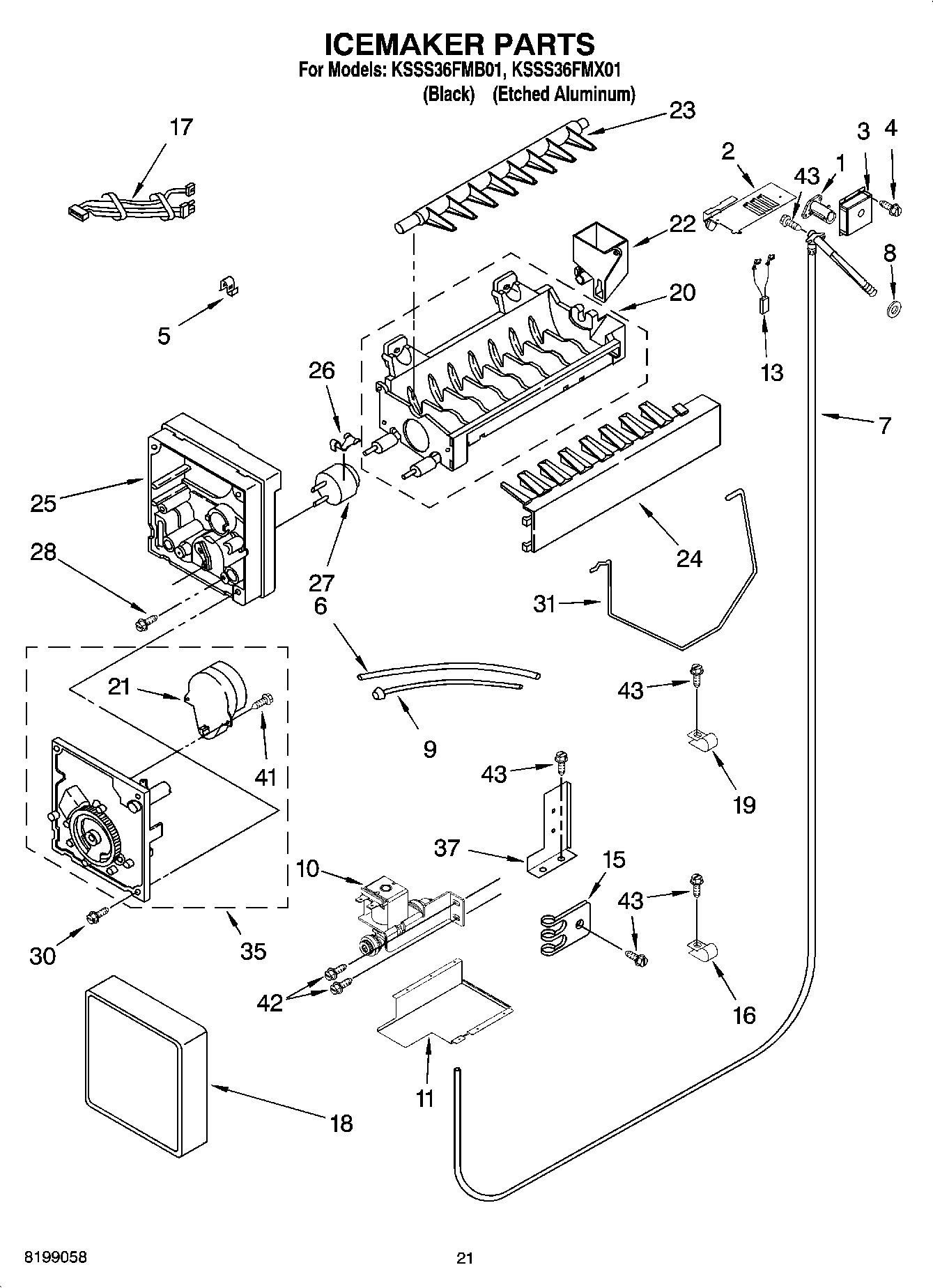

KSSS36FMB01 13 – ICEMAKER PARTS

Products

Position	Product
1	WP2221240 Whirlpool Refrigerator Heater
2	WP2221231 Whirlpool Refrigerator Shield
3	Cover, Fill Tube Heater
4	WP488729 Whirlpool Refrigerator Door Screw
5	WP628379 Whirlpool Refrigerator Clip
6	Tube, Filter Inlet
7	Water Inlet Tube Assembly
8	WP1106508 Whirlpool Refrigerator Gasket
9	W11533506 Whirlpool Refrigerator Water Tube
10	WP2313917 Whirlpool Refrigerator Inlet Valve
11	Cover, Bottom
13	Jumper, Heater Fill Tube
15	WP488366 Whirlpool Refrigerator Clamp
16	Clamp, Tube
17	Wire Harness, Icemaker
18	Cover
19	W10833902 Whirlpool Refrigerator Clamp
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
21	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
35	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
37	Water Valve Mounting Bracket
41	489136 Whirlpool Refrigerator Screw
42	WP489464 Whirlpool Refrigerator Screw
43	W11624204 Whirlpool Screw
100	WPW10277450 Whirlpool Refrigerator Icemaker
