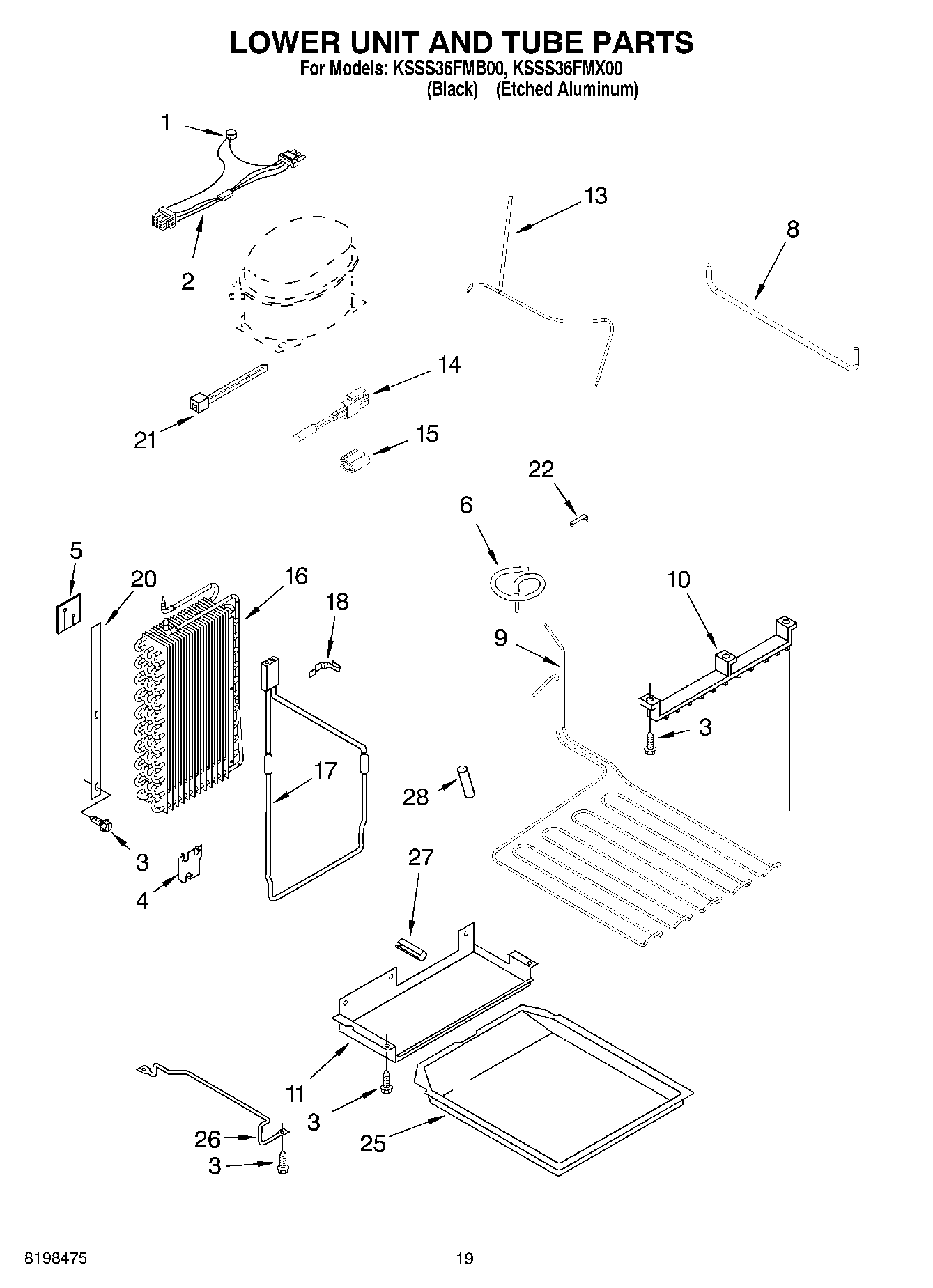

KSSS36FMX00 12 – LOWER UNIT AND TUBE PARTS

KSSS36FMX00 12 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSS36FMX00 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1WPW10225581 Whirlpool Refrigerator Defrost Thermostat
2Harness, Evap Fan
3W11624204 Whirlpool Screw
4Bracket
5Side Support
6Suction Tube
8Tube, Connect (Drier/Restrictor)
9Heater, Drain Pan
10Hanger, Heater
11Shield, Drain Pan
13Tube, Discharge
14WP2188820 Whirlpool Refrigerator Thermistor
15CLIP
16WP2306092 Whirlpool Refrigerator Evaporator
17Heater, Defrost
181113048 Whirlpool Refrigerator Clamp
20Gasket, Evaporator
21WPW10339879 Whirlpool Wire Tie
22W10169509 Whirlpool Refrigerator Clip
25WP2001264 Whirlpool Refrigerator Drip Pan
26Bracket, Drain Pan (Right)
26Bracket, Drain Pan (Left)
27WP2158826 Whirlpool Refrigerator Dampener
282215648 Whirlpool Refrigerator Dampener
