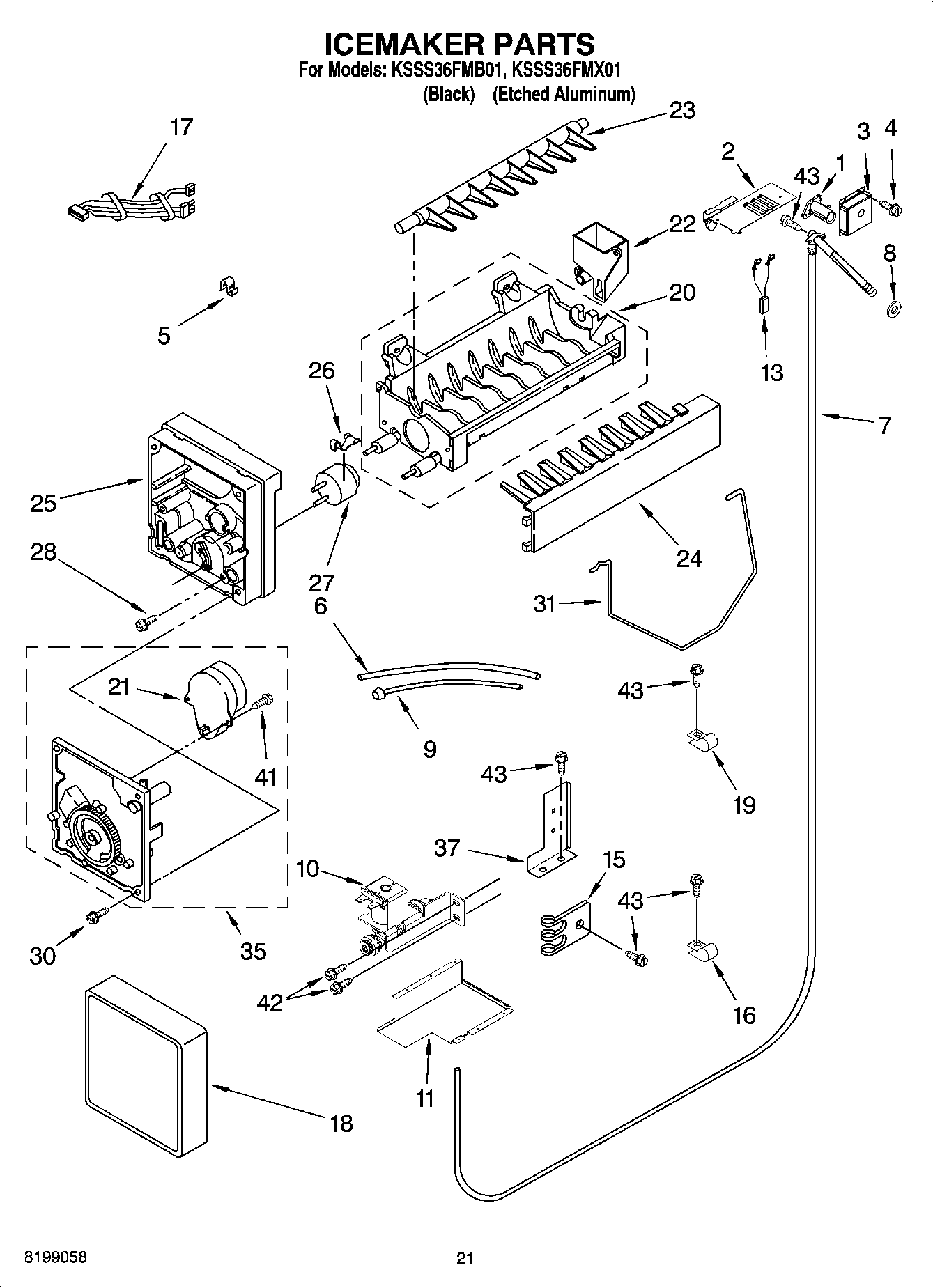

KSSS36FMX01 13 – ICEMAKER PARTSadmin2025-04-26T12:31:55+00:00KSSS36FMX01 13 – ICEMAKER PARTS ProductsPositionProduct1WP2221240 Whirlpool Refrigerator Heater2WP2221231 Whirlpool Refrigerator Shield3Cover, Fill Tube Heater4WP488729 Whirlpool Refrigerator Door Screw5WP628379 Whirlpool Refrigerator Clip6Tube, Filter Inlet7Water Inlet Tube Assembly8WP1106508 Whirlpool Refrigerator Gasket9W11533506 Whirlpool Refrigerator Water Tube10WP2313917 Whirlpool Refrigerator Inlet Valve11Cover, Bottom13Jumper, Heater Fill Tube15WP488366 Whirlpool Refrigerator Clamp16Clamp, Tube17Wire Harness, Icemaker18Cover19W10833902 Whirlpool Refrigerator Clamp20WPW10190929 Whirlpool Refrigerator Ice Maker Mold21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31W11342242 Whirlpool Refrigerator Ice Level Arm358201515 Whirlpool Refrigerator Motor and Gear Module Kit37Water Valve Mounting Bracket41489136 Whirlpool Refrigerator Screw42WP489464 Whirlpool Refrigerator Screw43W11624204 Whirlpool Screw100WPW10277450 Whirlpool Refrigerator Icemaker
