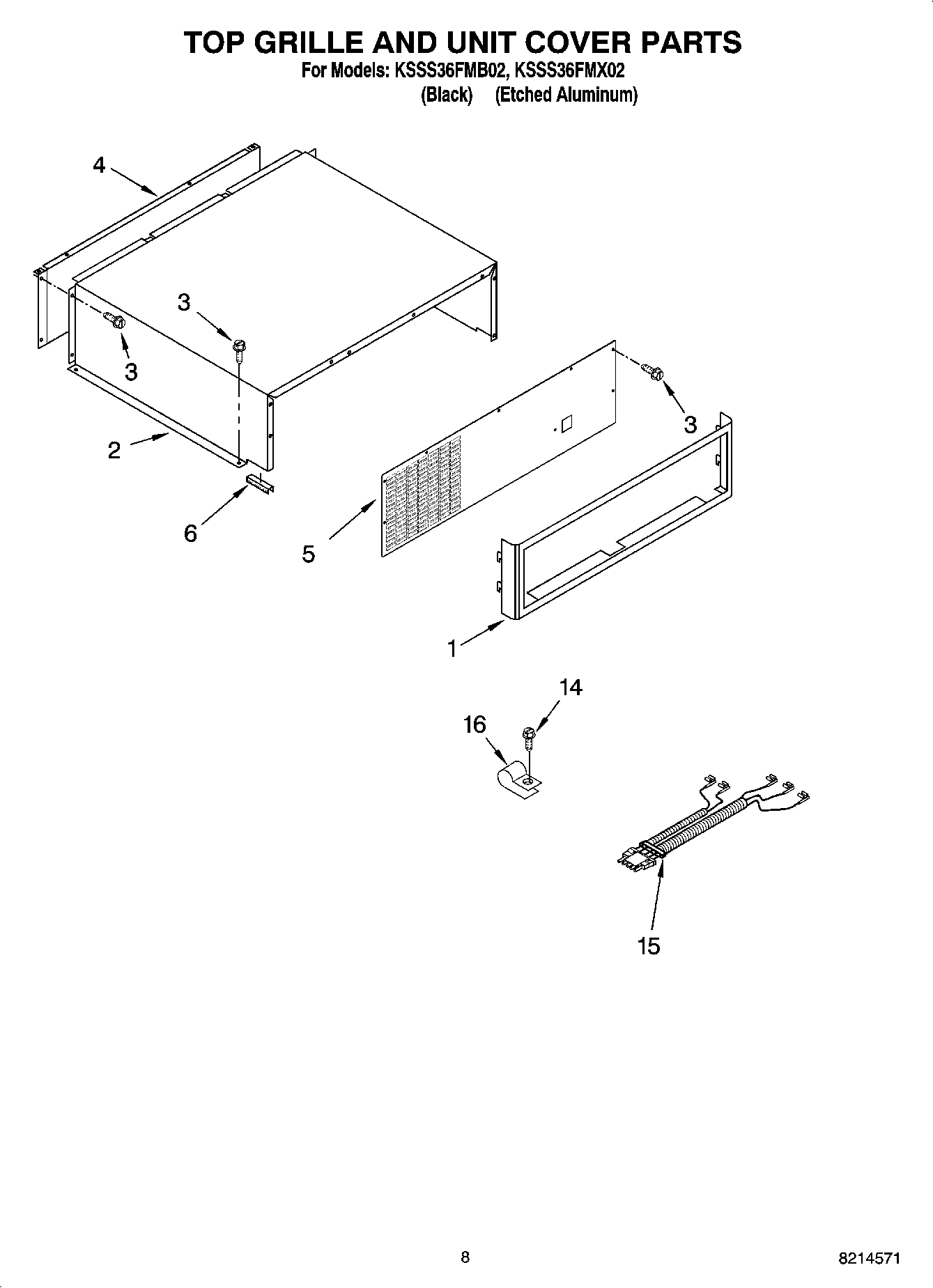

KSSS36FMX02 06 – TOP GRILLE AND UNIT COVER PARTS

Written by

Products

Position	Product
1	Top Grille Assembly (Etched Aluminum)
1	Top Grille Assembly (Black)
2	Cover, Unit
3	WP965173 Whirlpool Dishwasher Screw
4	2256466 Whirlpool Refrigerator Unit Cover
5	Front, Unit Cover
6	2215910 Whirlpool Refrigerator Grommet
14	WP489069 Whirlpool Compactor Screw
15	Wire Assembly RC/FC Light Switch
16	489348 Whirlpool Refrigerator Tube Clamp
