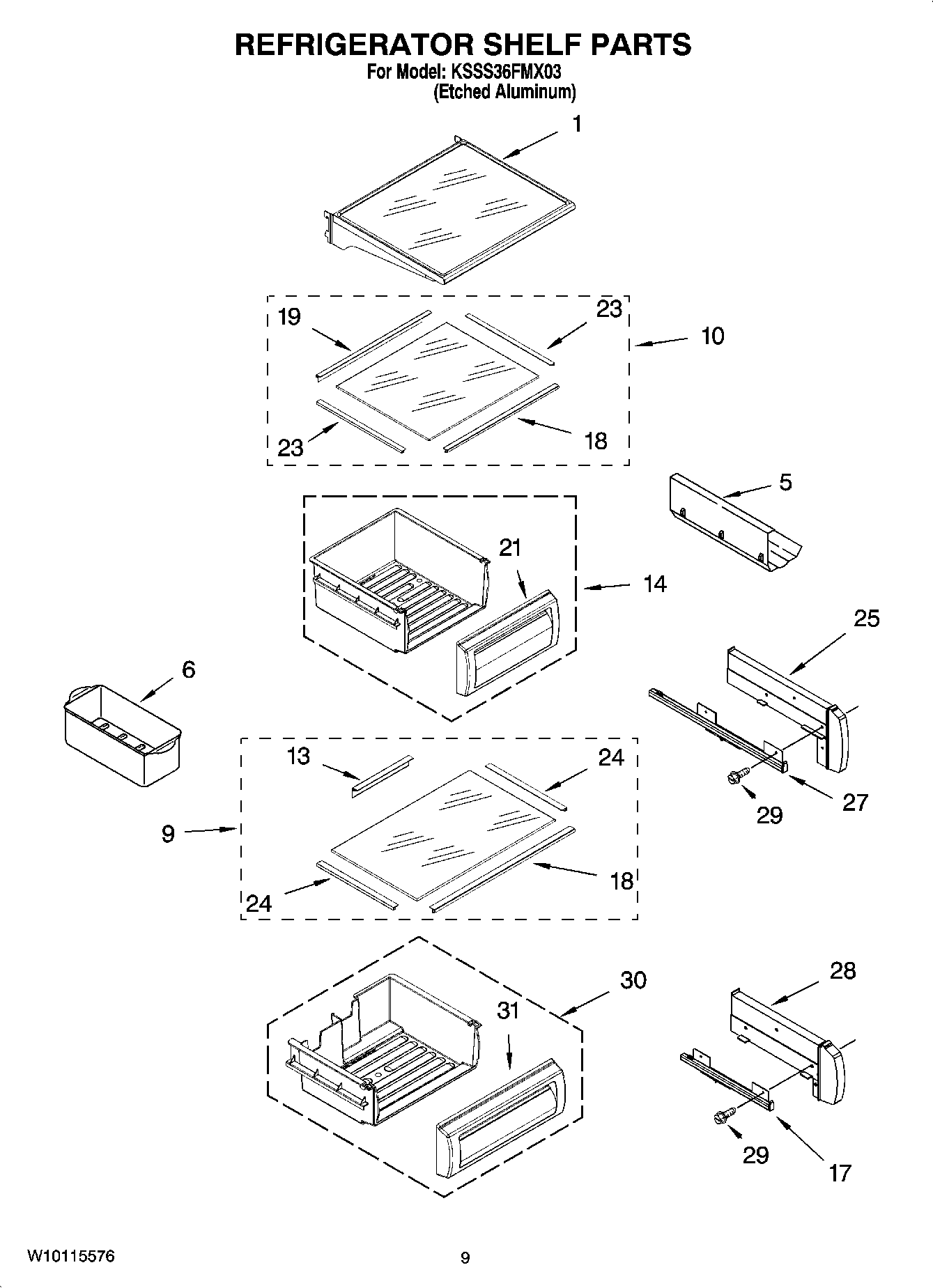

KSSS36FMX03 07 – REFRIGERATOR SHELF PARTS

KSSS36FMX03 07 – REFRIGERATOR SHELF PARTS

Written by

in

KSSS36FMX03 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
12222591 Whirlpool Cantilever Shelf
5W10777924 Whirlpool Refrigerator Wine Rack
6Egg Bin Assembly
9Meat Pan Cover Assembly
10Crisper Cover Assembly
13Trim, Glass Rear
14W10407623 Whirlpool Refrigerator Crisper Pan
172302955 Whirlpool Refrigerator Slide
172302954 Whirlpool Refrigerator Slide
18Trim, Front Glass (Not Serviceable)
19Trim, Glass Rear
21WP2256247 Whirlpool Front Pan
23Trim, Glass Side
242256250 Whirlpool Refrigerator Shelf Trim
252256223 Whirlpool Refrigerator Track
252256222 Whirlpool Refrigerator Track
272302957 Whirlpool Refrigerator Slide
272302956 Whirlpool Refrigerator Slide
282256243 Whirlpool Refrigerator Track
282256244 Whirlpool Refrigerator Track
29WP8533928 Whirlpool Refrigerator Screw
29WP3400886 Whirlpool Refrigerator Screw
30W10407626 Whirlpool Refrigerator Meat Pan
31WP2256365 Whirlpool Refrigerator Front Pan
