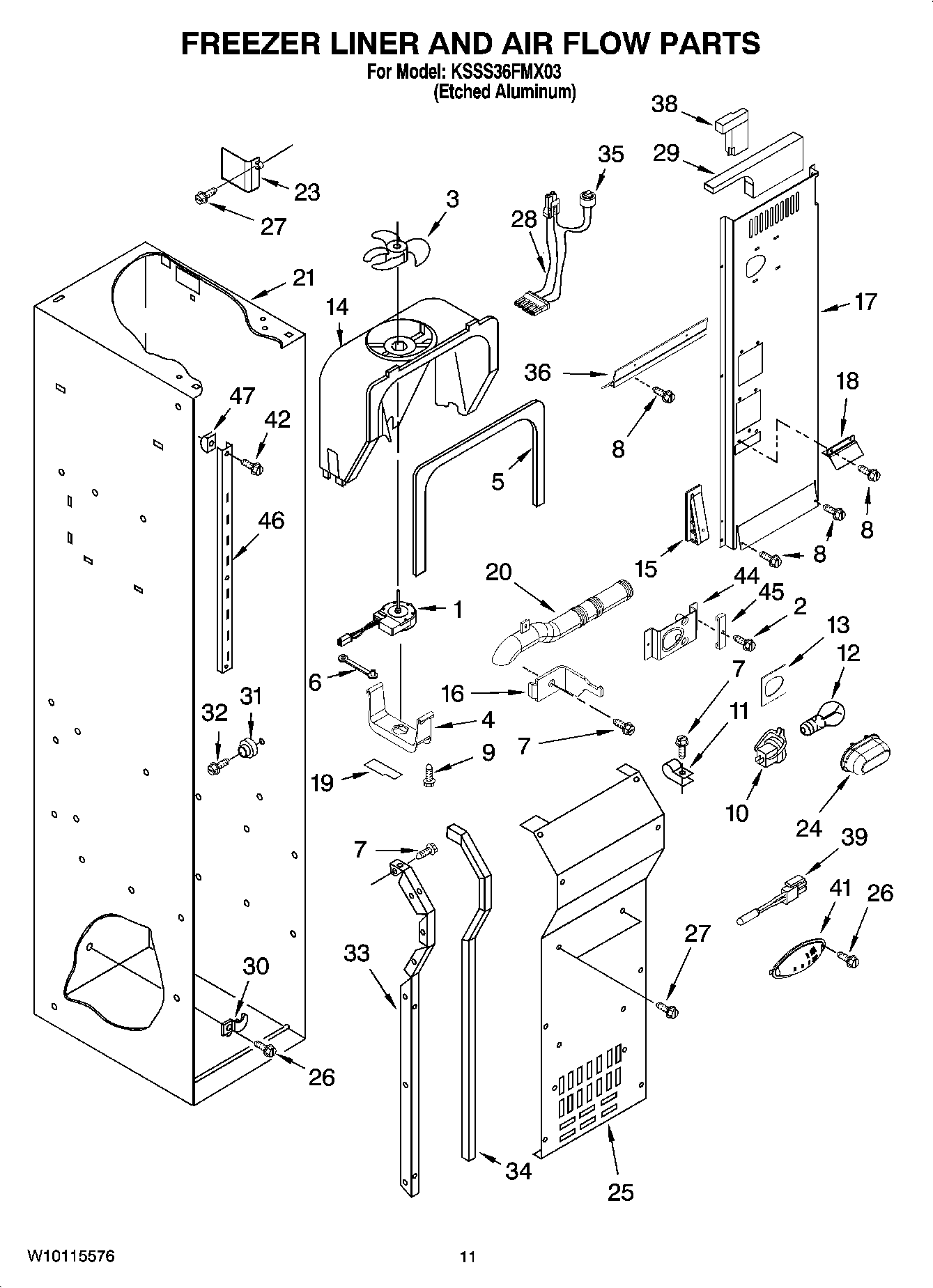

KSSS36FMX03 08 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	Motor, Fan
2	WP489464 Whirlpool Refrigerator Screw
3	WP2169142 Whirlpool Fan Blade
4	8201663 Whirlpool Refrigerator Primary Fan Blade
5	WP2302817 Whirlpool Refrigerator Gasket
6	W11669856 Whirlpool Grommet
8	WPW10142283 Whirlpool Refrigerator Screw
9	WP489128 Whirlpool Refrigerator Screw
10	4387478 Whirlpool Refrigerator Light Socket
11	Clamp, Tube
12	RANGE ONLY 40W 120V APPL BULB
13	Seal-Light, Socket
14	W11254898 Whirlpool Refrigerator Scroll Fan
15	2259465 Whirlpool Refrigerator Wedge
15	2259464 Whirlpool Refrigerator Wedge
16	Bracket, Vent Tube
17	Air Duct
18	2266801 Whirlpool Refrigerator Deflector
19	2209066 Whirlpool Refrigerator Fan Block
19	8201798 Whirlpool Refrigerator Fan Block
20	Tube, Vent
21	Liner (Not A Serviceable Part)
23	2259025 Whirlpool Refrigerator Air Cover
24	Light Shield
25	Cover, Evaporator
26	W11624204 Whirlpool Screw
27	WP488729 Whirlpool Refrigerator Door Screw
28	Harness, Evap Fan (Includes Item 55)
29	Deflector, Air Duct
30	1112260 Whirlpool EV Support
31	WP2196483 Whirlpool Refrigerator Shelf Stud
32	WP3400806 Whirlpool Screw
33	Evaporator, Cover Rail (Left Side)
33	2259355 Whirlpool Refrigerator Evaporator Rail
34	2220904 Whirlpool Refrigerator Gasket
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
36	Support, Air Duct
39	WP2188820 Whirlpool Refrigerator Thermistor
41	WP2317844 Whirlpool Refrigerator Cover
42	2006475 Whirlpool Refrigerator Screw
44	Bracket, Light
45	Spacer, Light Bracket
46	WP2259032 Whirlpool Ladder
47	Support, Screw
