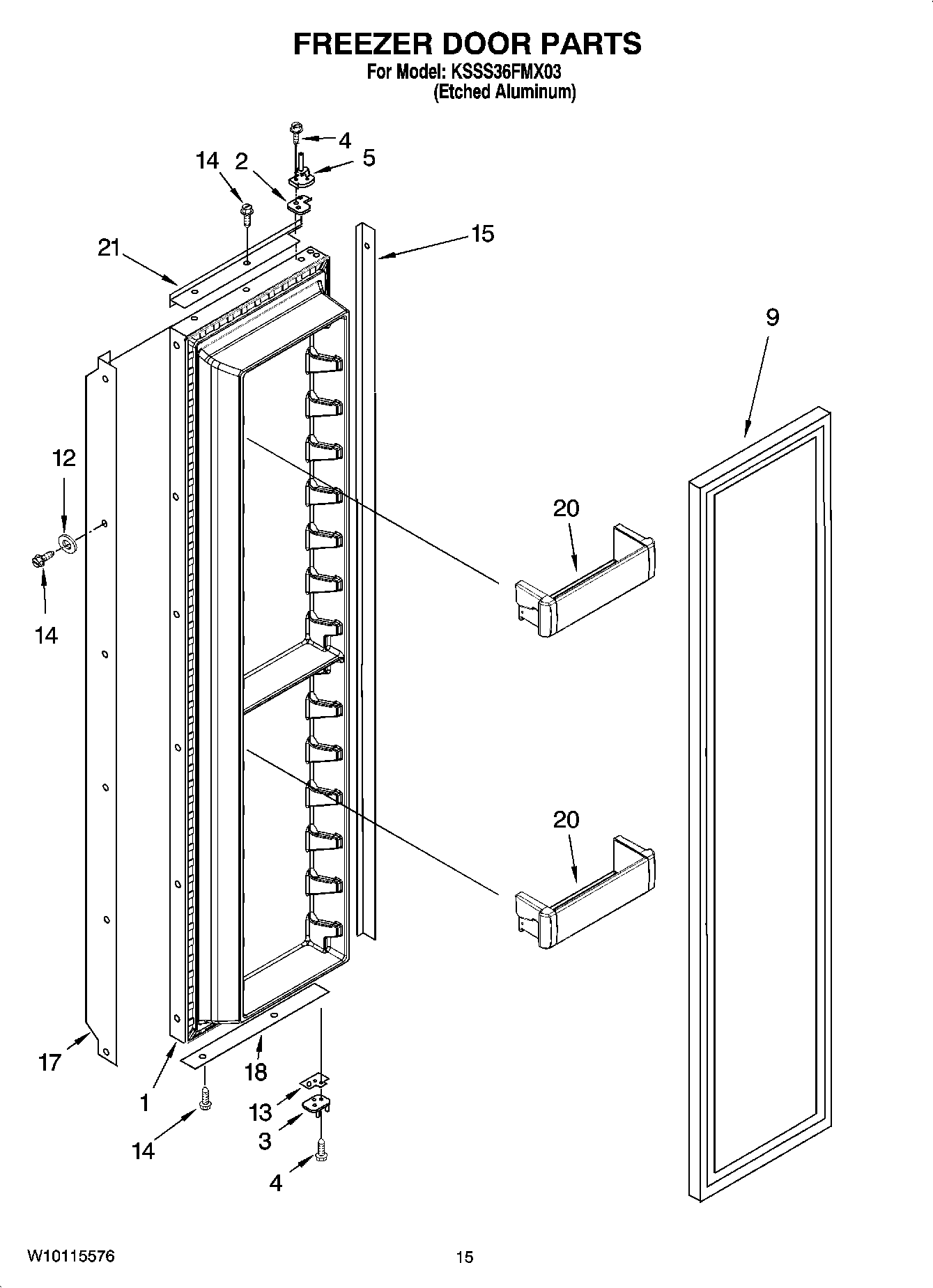

KSSS36FMX03 10 – FREEZER DOOR PARTS

KSSS36FMX03 10 – FREEZER DOOR PARTS

Written by

in

KSSS36FMX03 10 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10193485 Whirlpool Refrigerator FIP Stainless Steel Door
2Spacer-Hinge, Top
3HINGE-DOOR
4W11474472 Whirlpool Screw
5W11724512 Whirlpool Door Hinge
9W11624976 Whirlpool Refrigerator FIP Gasket
12Washer
13Door Spacer, Bottom
14WP8281250 Whirlpool Refrigerator Screw
15Trim (Side) (Etched Aluminum)
17Handle, Door (Etched Aluminum)
18Trim (Bottom) (Etched Aluminum)
20W10323601 Whirlpool Refrigerator Cantilever Bin
21Trim, Door (Top) (Etched Aluminum)
