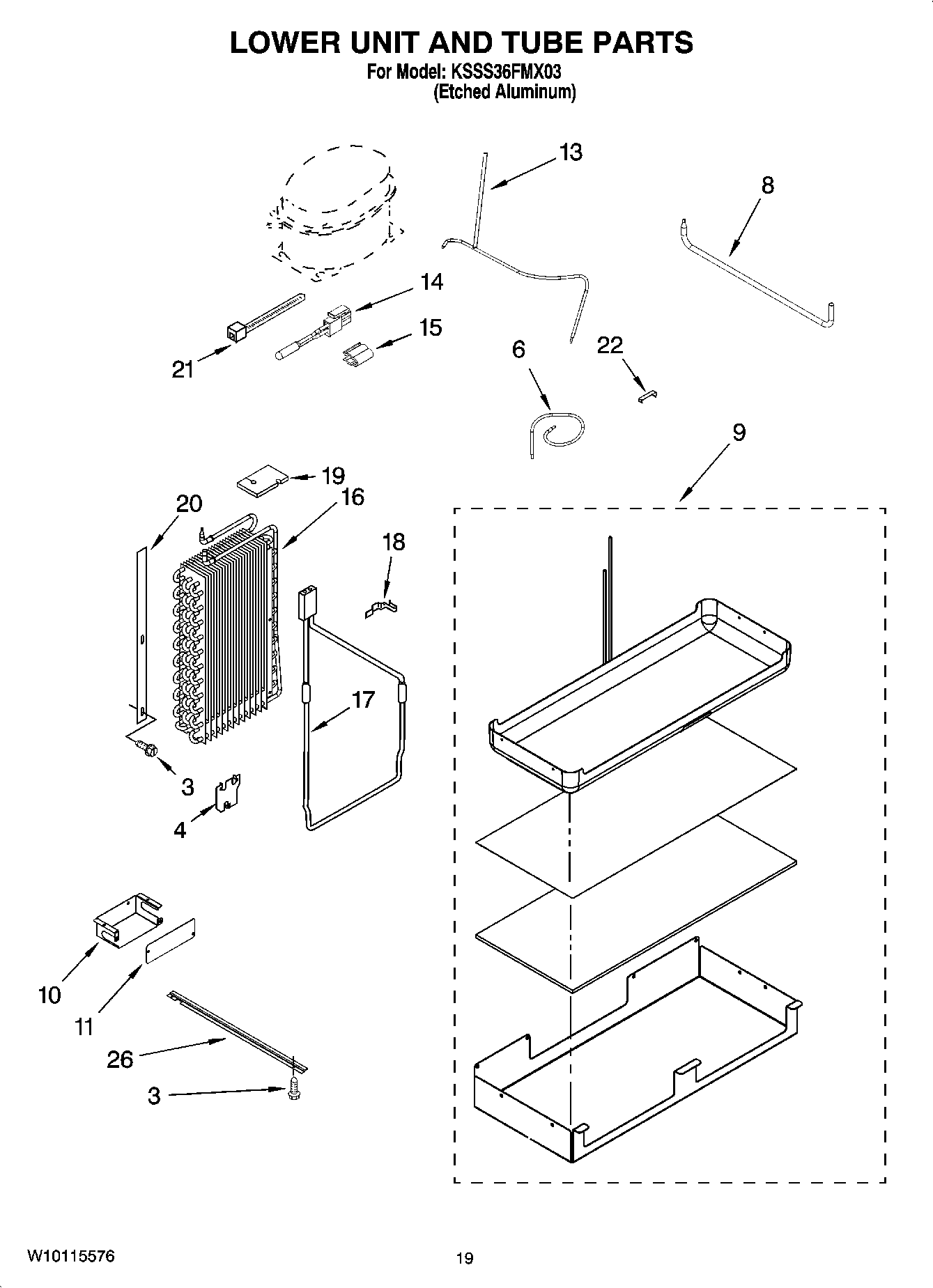

KSSS36FMX03 12 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
3	W11624204 Whirlpool Screw
4	Bracket
6	Suction Tube
8	Tube, Transition (Drier/Restrictor)
9	WPW10281063 Whirlpool Refrigerator Heater Pan
10	Cover, Wiring
11	Cover, Box
13	Tube, Discharge
14	WP2188820 Whirlpool Refrigerator Thermistor
15	9791833 Whirlpool Refrigerator Clip
16	WP2306092 Whirlpool Refrigerator Evaporator
17	Heater, Defrost
18	1113048 Whirlpool Refrigerator Clamp
19	8201798 Whirlpool Refrigerator Fan Block
20	Gasket, Evaporator
21	WPW10339879 Whirlpool Wire Tie
22	W10169509 Whirlpool Refrigerator Clip
26	2320554 Whirlpool Bracket
