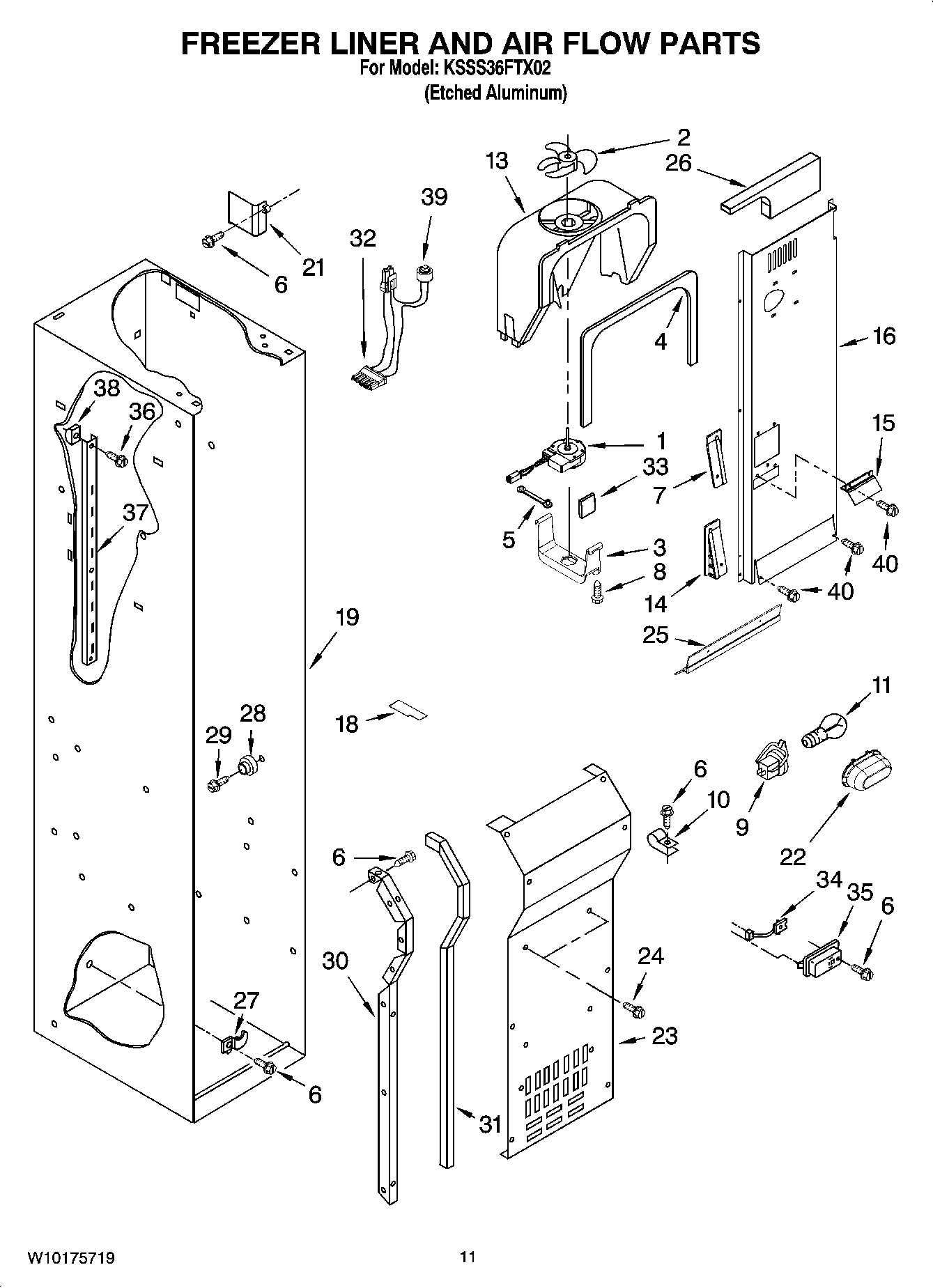

KSSS36FTX02 08 – FREEZER LINER AND AIR FLOW PARTS

Products

Position	Product
1	Motor, Fan
2	WP2169142 Whirlpool Fan Blade
3	8201663 Whirlpool Refrigerator Primary Fan Blade
4	WP2302817 Whirlpool Refrigerator Gasket
5	W11669856 Whirlpool Grommet
6	W11624204 Whirlpool Screw
7	2259464 Whirlpool Refrigerator Wedge
8	WP489128 Whirlpool Refrigerator Screw
9	WPW10191429 Whirlpool Refrigerator Socket
10	Clamp, Tube
11	WPA3073101 Whirlpool Light Bulb
13	W11254898 Whirlpool Refrigerator Scroll Fan
14	2259465 Whirlpool Refrigerator Wedge
15	2266801 Whirlpool Refrigerator Deflector
16	Air Duct
18	8201798 Whirlpool Refrigerator Fan Block
18	2209066 Whirlpool Refrigerator Fan Block
19	Liner (Not A Serviceable Part)
21	2259025 Whirlpool Refrigerator Air Cover
22	Light Shield
23	Cover, Evaporator
24	WP8281163 Whirlpool Refrigerator Screw
25	Support, Air Duct
26	Deflector, Air Duct
27	1112260 Whirlpool EV Support
28	WP2196483 Whirlpool Refrigerator Shelf Stud
29	WP3400806 Whirlpool Screw
30	Evaporator, Cover Rail (Left Side)
30	2259355 Whirlpool Refrigerator Evaporator Rail
31	2220904 Whirlpool Refrigerator Gasket
32	W10139189 Whirlpool Refrigerator Wire Harness
33	W11553819 Whirlpool Refrigerator Insulation
34	WP2188820 Whirlpool Refrigerator Thermistor
35	WP2317844 Whirlpool Refrigerator Cover
36	2006475 Whirlpool Refrigerator Screw
37	WP2259032 Whirlpool Ladder
38	Support, Screw
39	WPW10160570 Whirlpool Refrigerator Bimetallic Defrost
40	WPW10142283 Whirlpool Refrigerator Screw
