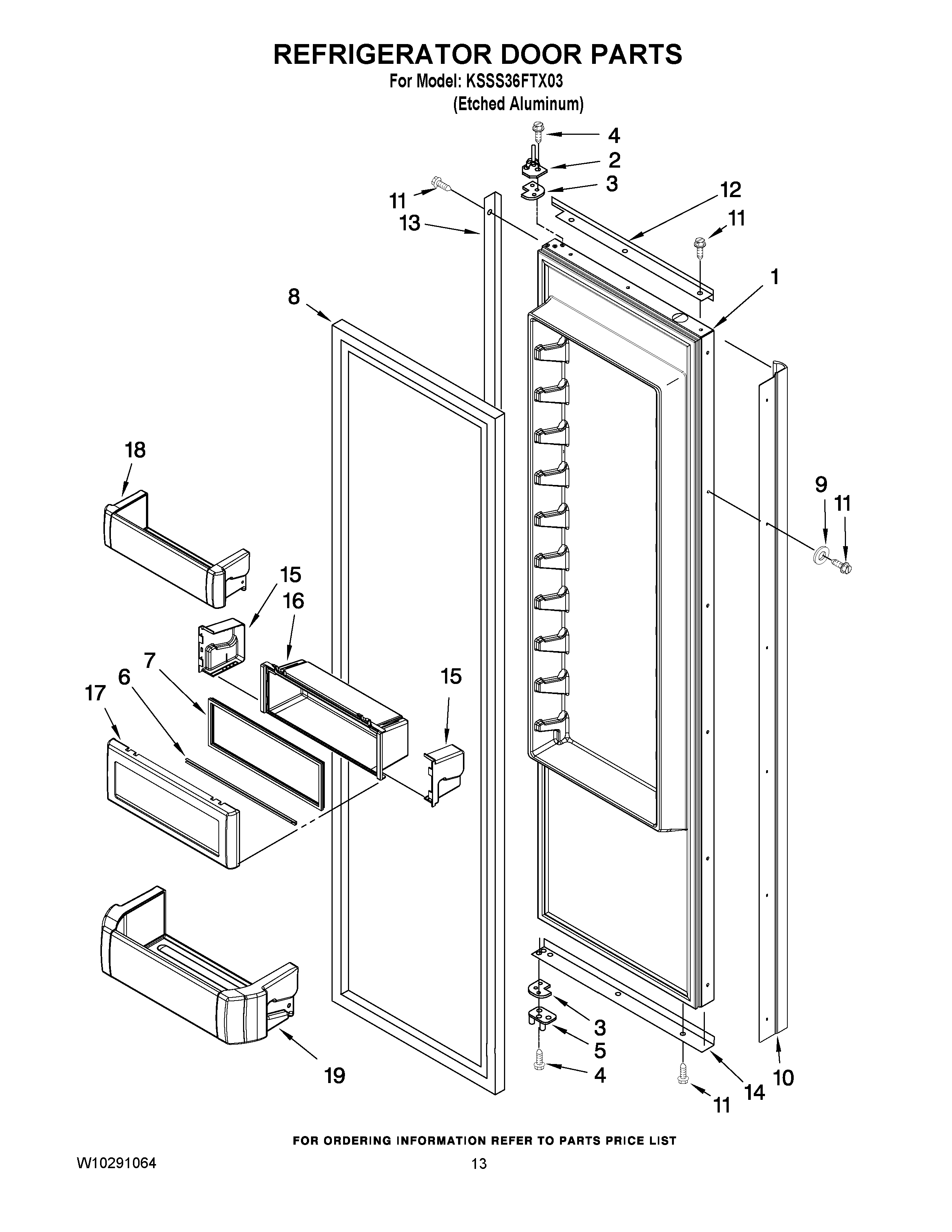

KSSS36FTX03 09 – REFRIGERATOR DOOR PARTS

KSSS36FTX03 09 – REFRIGERATOR DOOR PARTS

Written by

in

KSSS36FTX03 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10193489 Whirlpool Refrigerator Black Foam In Place Door
2W11724512 Whirlpool Door Hinge
3W11673500 Whirlpool Door Hinge
4W11474472 Whirlpool Screw
52302878 Whirlpool Refrigerator Door Hinge
62222795 Whirlpool Refrigerator Rail
7WP2222981 Whirlpool Refrigerator Gasket
8WP2266901 Whirlpool Door Gasket
9Washer
10Handle, Door
11WP8281250 Whirlpool Refrigerator Screw
12Trim (Top)
13Trim-Door, Side
14Door Trim, Bottom
15WPW10323173 Whirlpool Refrigerator Retainer End Cap
15WPW10323172 Whirlpool Refrigerator Retainer End Cap
16WPW10323035 Whirlpool Refrigerator Cantilever Bin
17WPW10131132 Whirlpool Refrigerator Door Compressor
18W10323598 Whirlpool Refrigerator Cantilever Bin
19W10323746 Whirlpool Refrigerator Cantilever Bin
