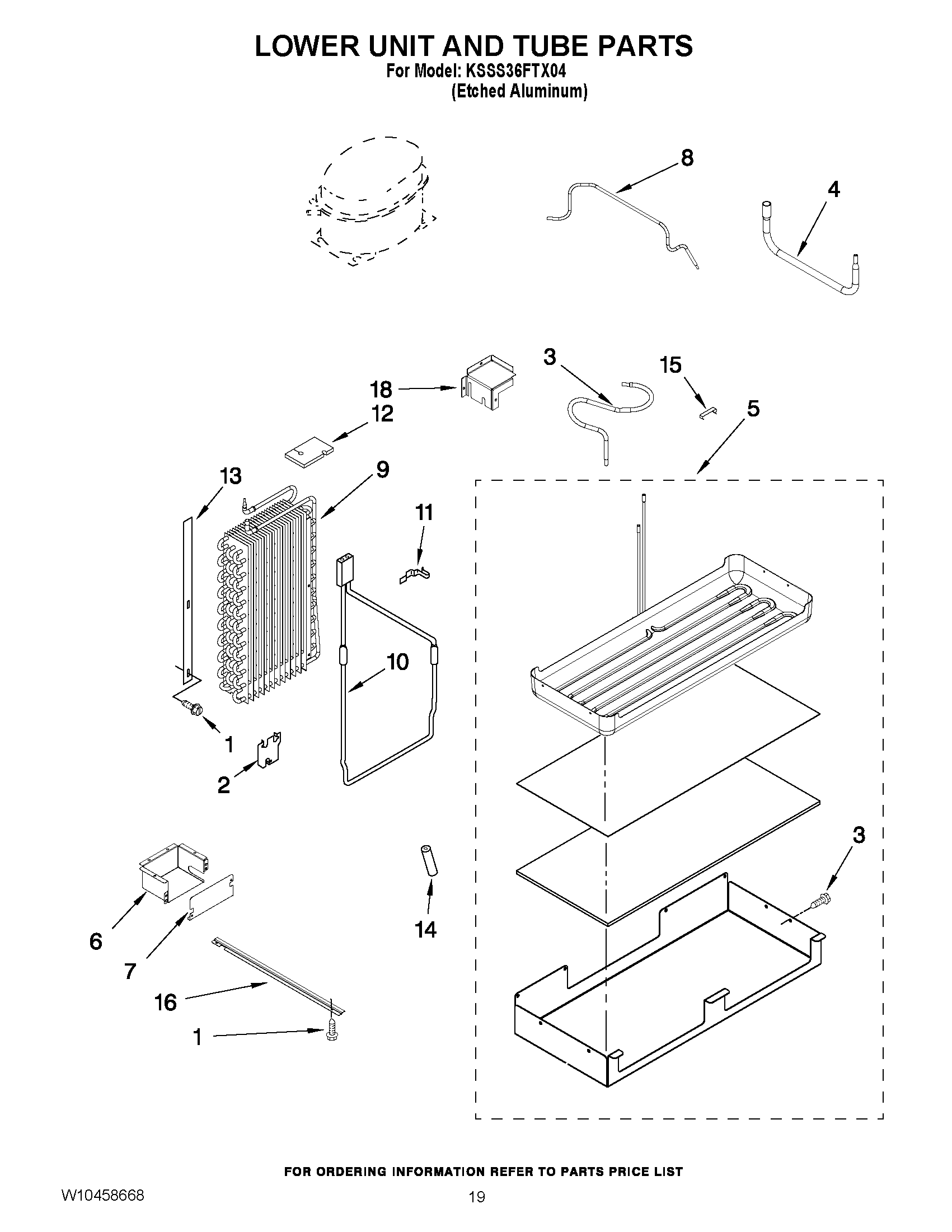

KSSS36FTX04 12 – LOWER UNIT AND TUBE PARTS

KSSS36FTX04 12 – LOWER UNIT AND TUBE PARTS

Written by

in

KSSS36FTX04 12 – LOWER UNIT AND TUBE PARTS

Products

PositionProduct
1W11624204 Whirlpool Screw
2W10157752 Whirlpool Bracket
3W10306442 Whirlpool Refrigerator Tube
4W10388653 Whirlpool Refrigerator Tube
5WPW10281063 Whirlpool Refrigerator Heater Pan
6WIRE COVER BOTTOM
7WIRE BOX COVER
8W10412487 Whirlpool Refrigerator Tube
9Evaporator
10W10140160 Whirlpool Refrigerator Heater
111113048 Whirlpool Refrigerator Clamp
12W10139908 Whirlpool Seal
13Gasket, Evaporator
142215648 Whirlpool Refrigerator Dampener
15W10169509 Whirlpool Refrigerator Clip
162320554 Whirlpool Bracket
18Bracket Assembly, Return Air
