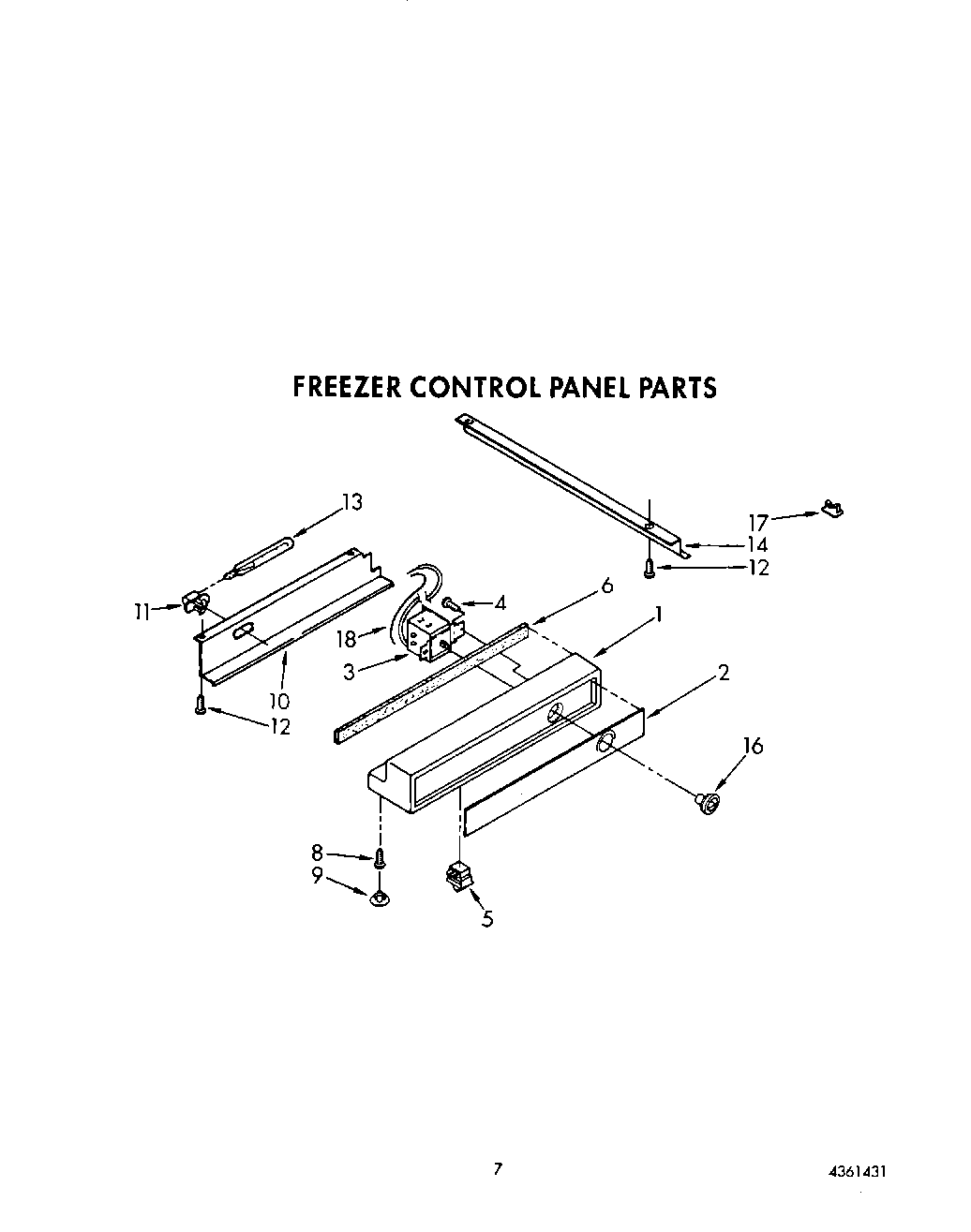

KSSS36MAX00 05 – FREEZER CONTROL PANEL

Products

Position	Product
1	Control Panel
2	Inlay, Control Panel
3	WP1113466 Whirlpool Refrigerator Thermostat
4	Screw, 8-32 x 3/8
5	W11384469 Whirlpool Door Switch
6	Seal, Control Panel
8	Screw (3)
9	Hole Plug (3)
10	Shield, Control Panel
11	Socket, Light
12	W11624204 Whirlpool Screw
13	WP548049 Whirlpool Refrigerator Light Bulb
14	Channel, Wiring
16	Knob, Thermostat
17	CLIP, WIRING
18	Thermostat Barrier
