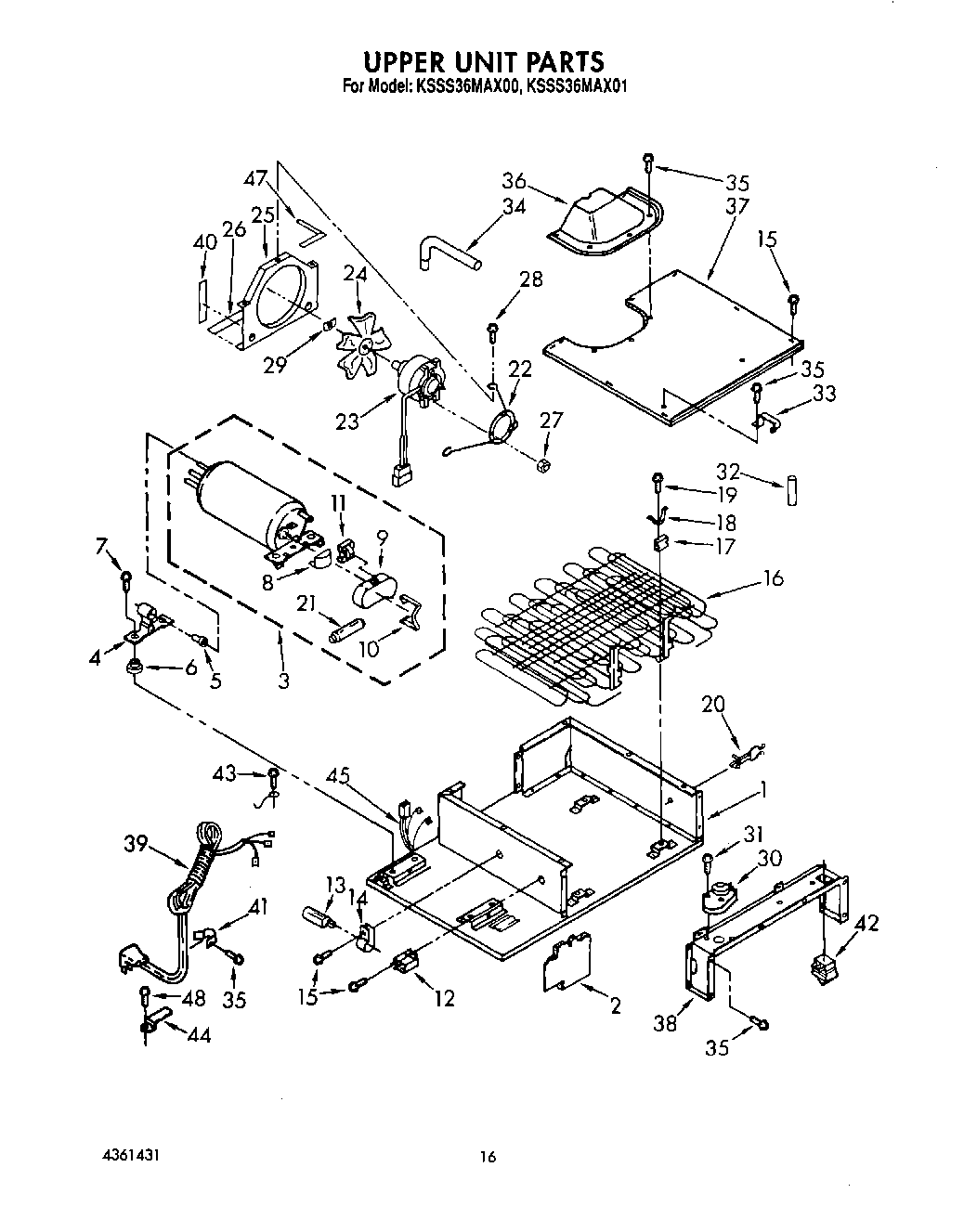

KSSS36MAX01 12 – UPPER UNIT
Written by
in
KSSS36MAX01 12 – UPPER UNIT
Products
Position
Product
1
Assembly, Unit Base
2
Assembly, Sound Barrier
3
876765 Whirlpool Primary Mounting Kit Refrigerator
3
Compressor (Includes Items 8, 9, 10, 11, 12, 13, 21) (Also Order)
4
Bracket, Mounting
5
Grommet, Compressor Bracket
6
Grommet, Compressor (4)
7
Screw (4)
8
Overload (Production Compressor Only)
8
Overload (Service) (Includes Relay)
8
Overload (Production) (Includes Relay)
9
Terminal Cover (Service)
10
Strap, Cover
11
Relay (See Overload)
12
Running Capacitor
12
WPW10662129 Whirlpool Refrigerator Run Capacitor
13
Capacitor, Start
14
Tube Clamp
15
WP965173 Whirlpool Dishwasher Screw
16
Condenser
17
Grommet (4)
18
Clamp (4)
19
Screw
20
Wire Tie (2)
21
Drier
22
Mounting Bracket, Motor
23
Motor, Fan
24
Blade, Fan
25
Orifice, Fan
26
Gasket, Orifice
27
WP488130 Whirlpool Air Conditioner Nut
28
Screw, 8 x 1/2 (3)
29
WP486692 Whirlpool Refrigerator Nut
30
WP2183400 Whirlpool Defrost Timer
31
WP3388228 Whirlpool Screw
32
Sleeve, Condenser
33
Clamp, Tube (2)
34
Process, Tube
35
W11624204 Whirlpool Screw
36
Cover, Fan
37
Cover, Condenser
38
Extension, Housing
39
Cord, Service
40
Seal Strip (2)
41
Clamp, Cord (2)
42
WP2266802 Whirlpool Refrigerator Switch
43
303776 Whirlpool Dishwasher Screw
44
Clip, Cord Plug
45
Wiring Harness, Unit Compartment
47
Gasket (2)
48
VALVE, ACCESS (5/8“)
48
876764 Whirlpool Refrigerator Primary Valve
48
978026 Whirlpool Refrigerator Primary Valve
48
978027 Whirlpool Refrigerator Primary Valve
48
978030 Whirlpool Refrigerator Valve
48
WP978025 Whirlpool Refrigerator Valve
48
VALVE, ACCESS (1/2“)
48
Screw
←
