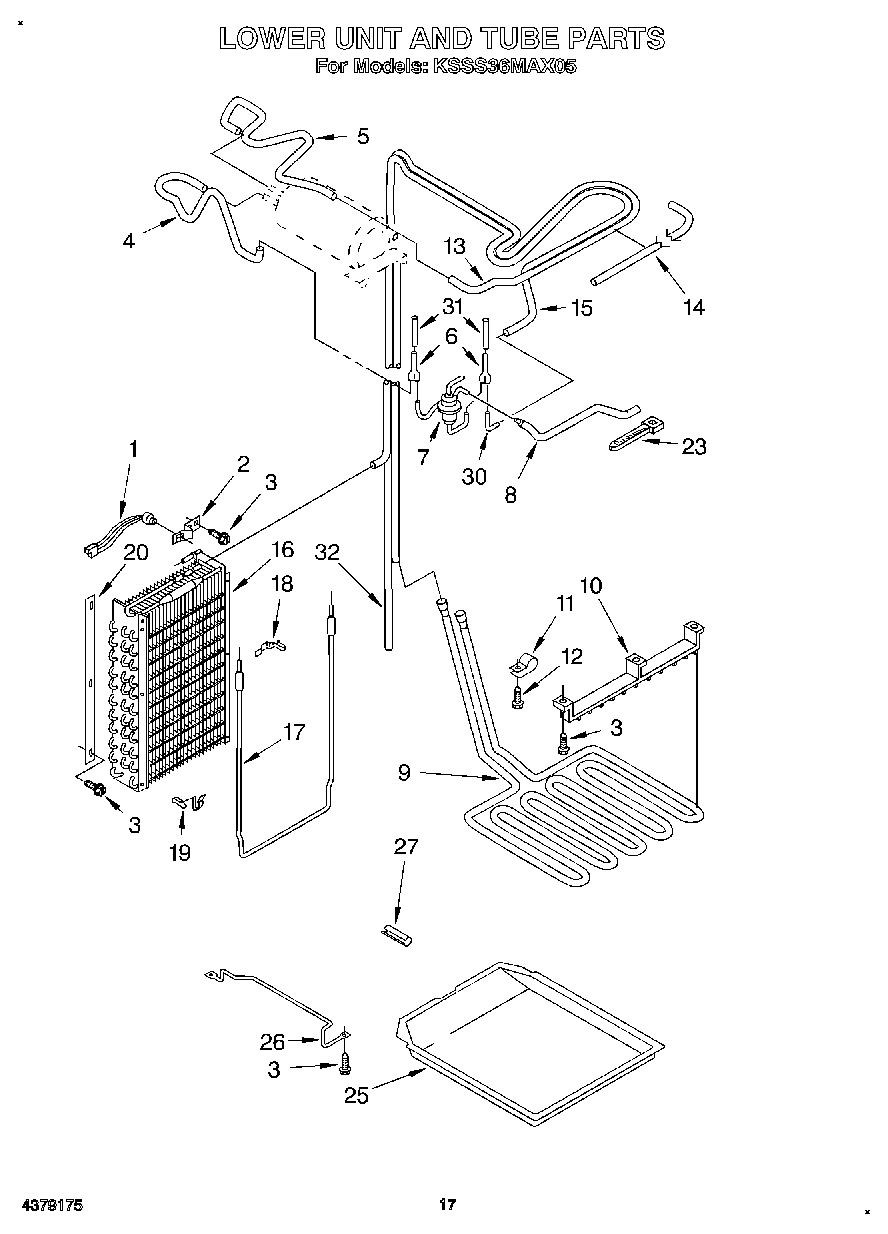

KSSS36MAX05 12 – LOWER UNIT AND TUBE

Products

PositionProduct
1WP4387499 Whirlpool Refrigerator Bimetallic Defrost
2Clamp, Bi-Metal
3W11624204 Whirlpool Screw
4Tube, Connect (Suction)
5Tube, Connect (Discharge)
6Tube, Flow Divider (2)
7Valve, Fluid Control
8Tube, Connect (Drier)
9Heater, Drain Pan
10Hanger, Heater
11Bracket, Heater
12WP488163 Whirlpool Refrigerator Screw
13Tube, Discharge
14WP2002171 Whirlpool Refrigerator Sleeve
15Heat Exchanger
16WPW10122127 Whirlpool Refrigerator Evaporator
17Heater, Defrost
181113048 Whirlpool Refrigerator Clamp
19Clamp (4)
20Gasket, Evaporator
23Strap
25WP2001264 Whirlpool Refrigerator Drip Pan
26Bracket, Drain Pan (Right)
26Bracket, Drain Pan (Left)
27WP2158826 Whirlpool Refrigerator Dampener
30Tube, Connect (Suction)
31Tube (2)
32Tube, Condenser Inlet
