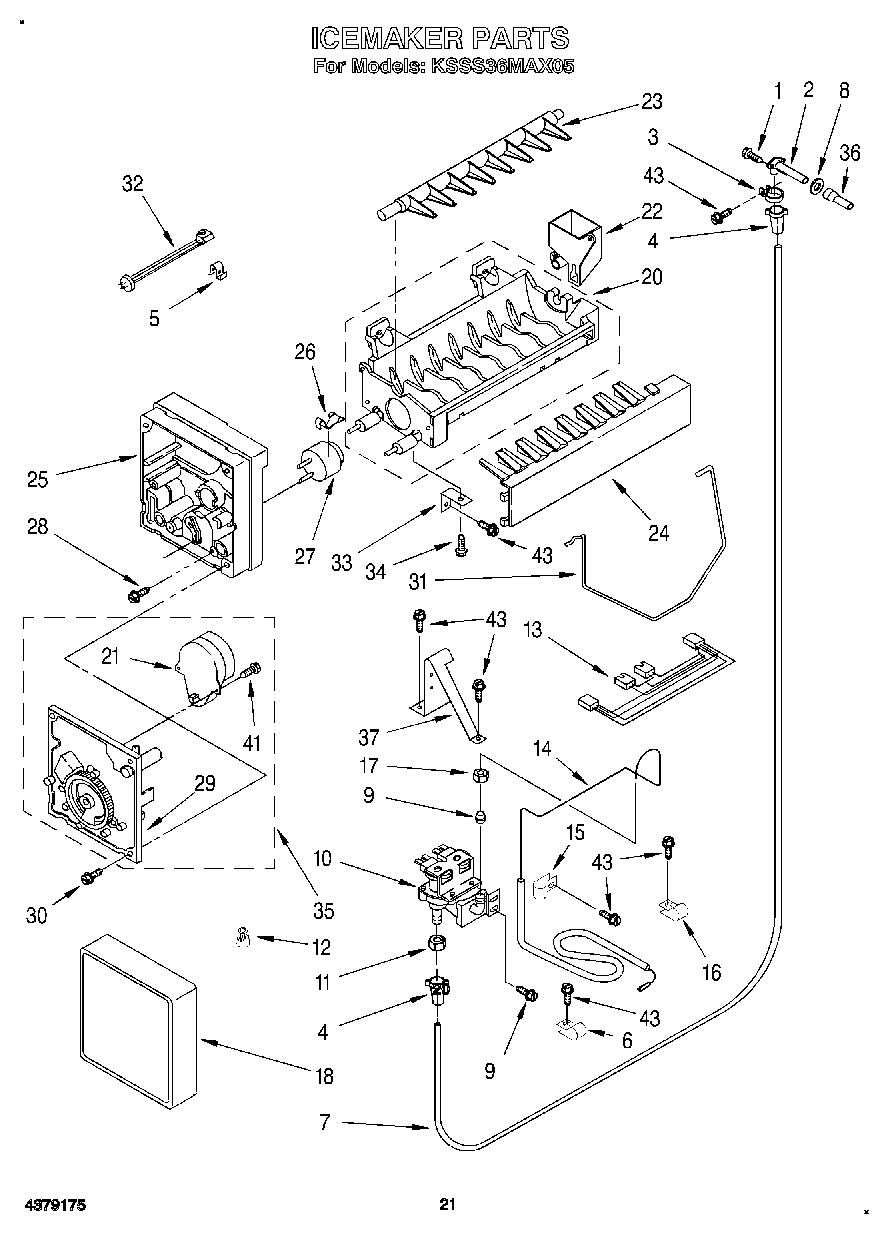

KSSS36MAX05 14 – ICEMAKER, LIT/OPTIONALadmin2025-04-26T12:32:36+00:00KSSS36MAX05 14 – ICEMAKER, LIT/OPTIONAL ProductsPositionProductUse & Care GuideNIWP489128 Whirlpool Refrigerator ScrewModular Icemaker Service SheetEnergy LabelService & Wiring SheetInstallation Instructions2Fitting, Water Tube3WP488878 Whirlpool Refrigerator Tube Clamp44387491 Whirlpool Refrigerator Insert5WP628379 Whirlpool Refrigerator Clip6Wire Clip7Water Tube (Outlet)8WP1106508 Whirlpool Refrigerator Gasket9WP487627 Whirlpool Refrigerator Sleeve10VALVE-INLT11WP627018 Whirlpool Refrigerator Nut12Wire Connector13Water Valve, Harness148003RP Whirlpool Refrigerator 25' 1/4" Copper Water Supply Line Kit15489348 Whirlpool Refrigerator Tube Clamp16Clamp, Tube (2)17WP245183 Whirlpool Nut18Cover20WPW10190929 Whirlpool Refrigerator Ice Maker Mold20WP542638 Whirlpool Refrigerator Grease21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly22WP628356 Whirlpool Refrigerator Fill Cup23WP627843 Whirlpool Refrigerator Ejector Arm24WP2182124 Whirlpool Refrigerator Stripper Arm25WP2195914 Whirlpool Refrigerator Ice Maker Housing26WP2315522 Whirlpool Refrigerator Clip27WP627985 Whirlpool Icemaker Cycling Thermostat27CEMENT, ALUMILASTIC (1 1/4 OZ.)288533917 Whirlpool Refrigerator Screw30WP681249 Whirlpool Screw Assembly31WP627792 Whirlpool Refrigerator Shut Off Arm32Harness, Wiring33WP2256087 Whirlpool Refrigerator Bracket34Screw, 8-32 x 27/6436Water Inlet Tube37Water Valve Mounting Bracket41489136 Whirlpool Refrigerator Screw43WP489069 Whirlpool Compactor Screw1004317943 Whirlpool Refrigerator Ice Maker Assembly100Black Acrylic Static Cleaner100FRONT PANEL KIT (STAINLESS STEEL)100Front Panel Kit (Almond)100Front Panel Kit (Black)100Front Panel Kit (White)
