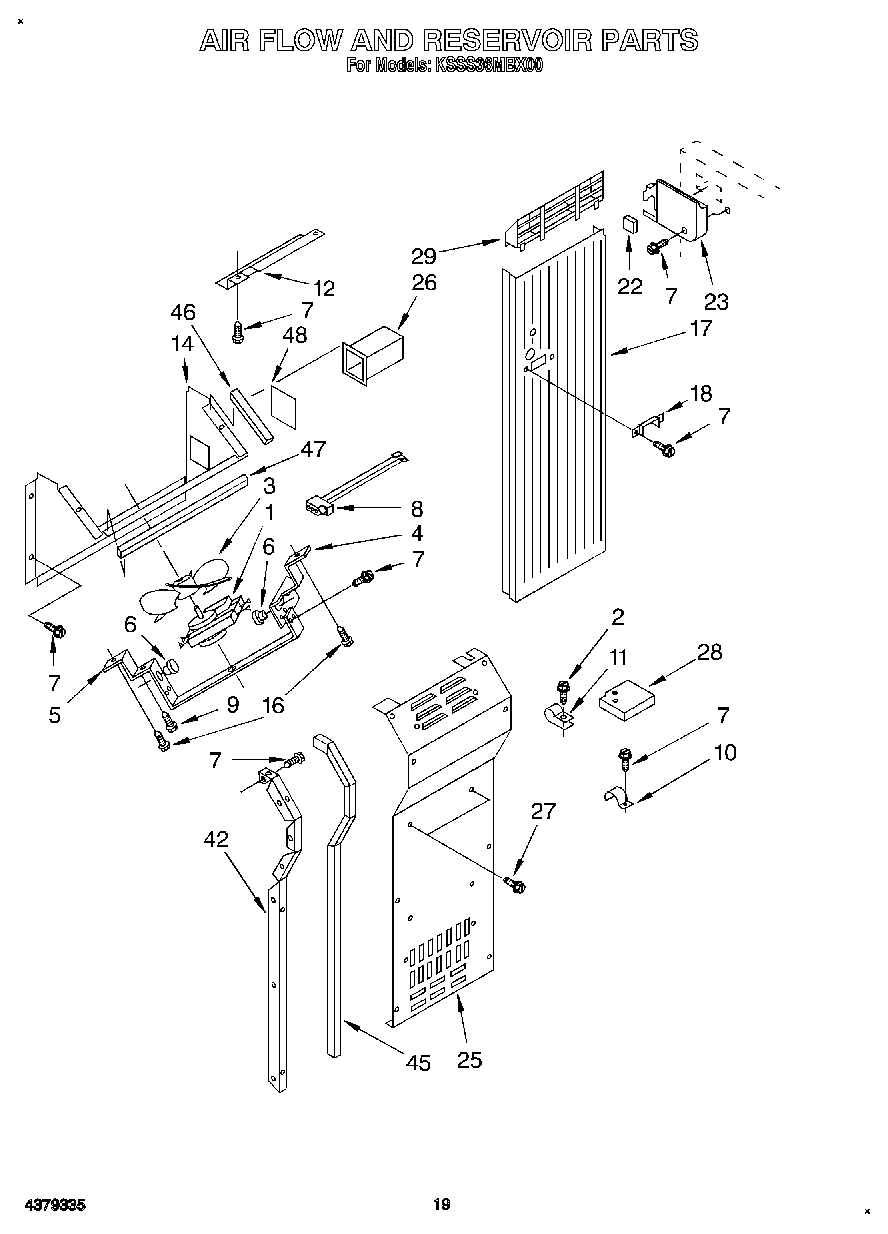

KSSS36MBX00 13 – AIR FLOW AND RESERVOIR

Products

Position	Product
1	MOTOR-EVAP
2	SCREW
3	WP2169142 Whirlpool Fan Blade
4	Fan, Bracket Double
5	Fan Bracket, Single
6	Grommet (3)
7	W11624204 Whirlpool Screw
8	Wiring Harness, Fan Motor
9	WP489128 Whirlpool Refrigerator Screw
10	WP488366 Whirlpool Refrigerator Clamp
11	489348 Whirlpool Refrigerator Tube Clamp
12	Channel, Wiring
14	Scroll, Fan
16	WP489069 Whirlpool Compactor Screw
17	Assembly, Air Duct
18	Air Deflector, Icemaker
22	Gasket, Air Baffle
23	Cover, Air Outlet
25	Cover, Evaporator
26	Connector, Meat Pan Duct
27	WP488729 Whirlpool Refrigerator Door Screw
28	Baffle, Evaporator
29	Diffuser, Air Duct
42	Evaporator, Cover Rail (Right Side)
42	Evaporator, Cover Rail (Left Side)
45	Gasket (2) Evaporator Cover
46	Gasket (2)
47	Gasket
48	Gasket
