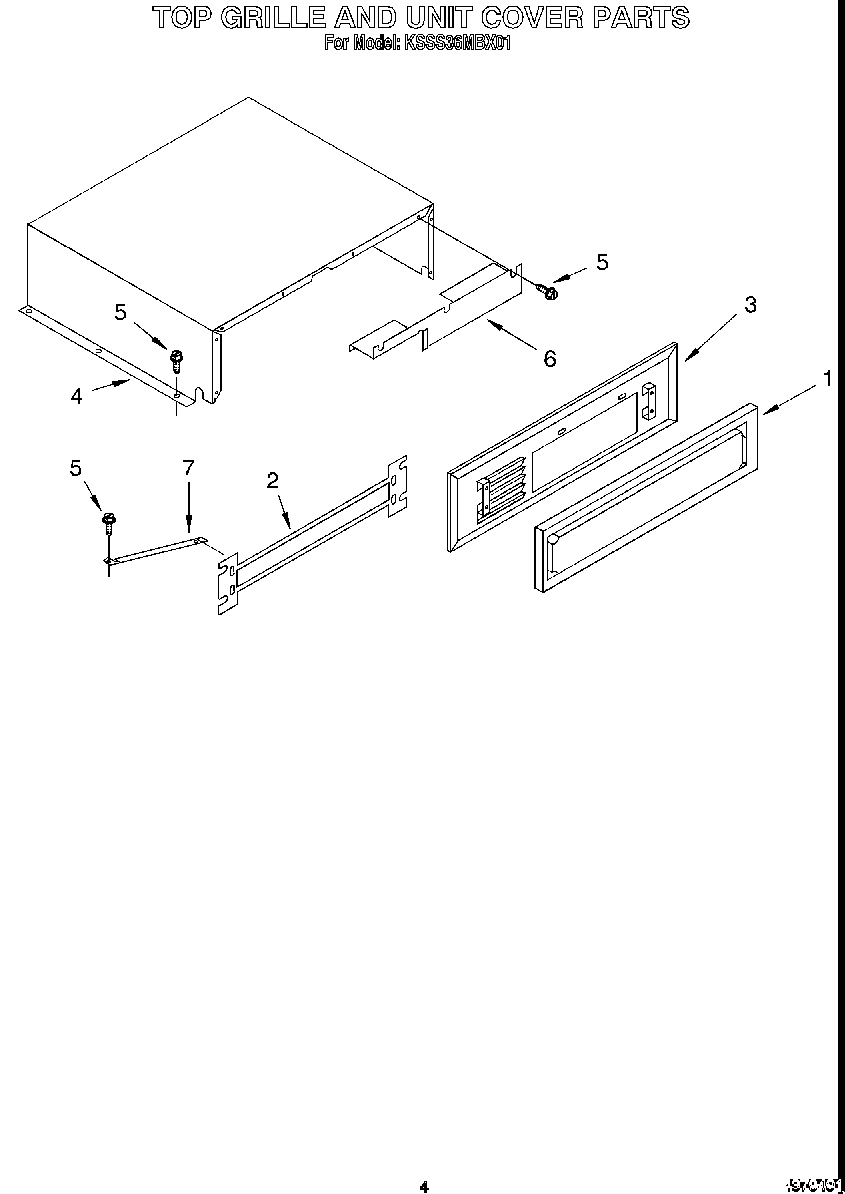

KSSS36MBX01 03 – TOP GRILLE AND UNIT COVER

KSSS36MBX01 03 – TOP GRILLE AND UNIT COVER

Written by

in

KSSS36MBX01 03 – TOP GRILLE AND UNIT COVER

Products

PositionProduct
1Decorative Panel Assembly
2Back Up Panel
3Top Grille Assembly
4Cover, Unit
5W11624204 Whirlpool Screw
6Cover, Component Assembly
7Brace, Panel (2)
